Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

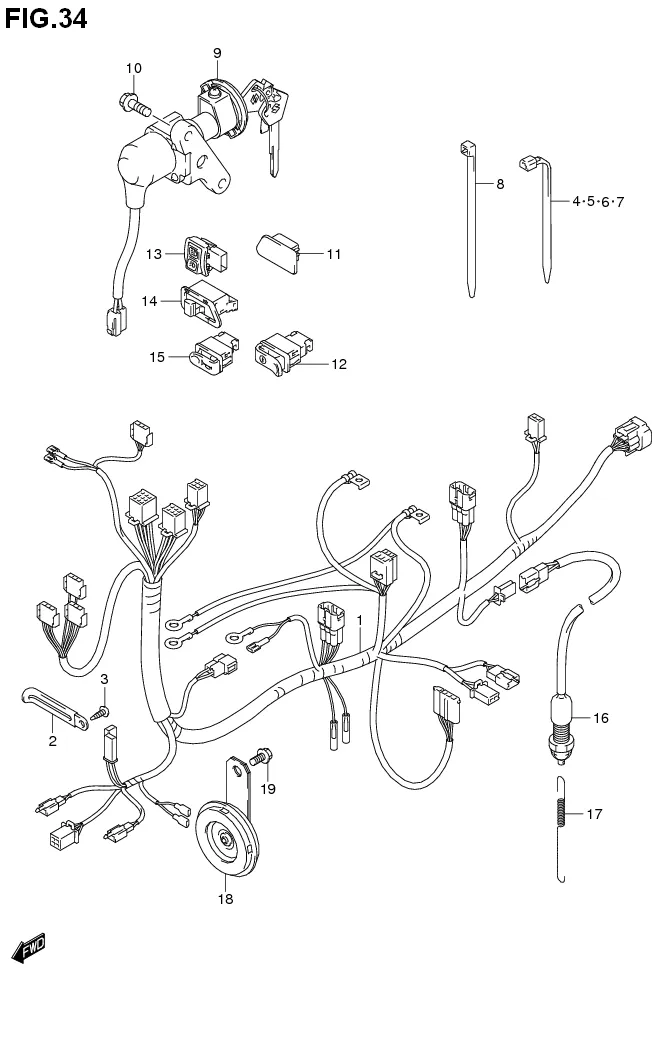

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	36610-16HM0-000 SUB: 36610B16HM0N000	HARNESS, WIRING	1	Rp374.000	RCMD
1-1	36610-16HL0-000 SUB: 36610B16HL0N000	HARNESS, WIRING	1	Rp364.500	SCD/RCD
2	09404-06429-000 SUB: 09404B06429N000	CLAMP (L:45)	1	Rp15.000
3	DISCONTINUE SUB: 03541-0510A-000	SCREW	1	-
4	09404-06431-000	CLAMP (L:65)	1	Rp14.000
5	36990-25G00-000 SUB: 09407-11401-000	CLAMP (L:95)	1	Rp13.000
6	09407-18402-000	CLAMP (L:165)	4	Rp8.000
7	09407-19401-000	CLAMP (L:235)	3	Rp31.500
8	09407-30401-000	CLAMP (L:300)	1	Rp25.000
9	37100-10J01-000 SUB: 37100B10J00N000	LOCK ASSY, STEERING SET	1	Rp255.500
10	01560-0620A-000 SUB: 01560B0620AN000	BOLT	2	Rp2.500
11	37251-16H00-000 SUB: 37251B16H00N000	CAP, LIGHTING SWITCH	1	Rp7.000
12	37310-09G30-000 SUB: 37310B09G30N000	SWITCH ASSY, STARTER	1	Rp27.500
13	37420-09G21-000 SUB: 37420B09G21N000	SWITCH ASSY, DIMMER	1	Rp20.500
14	37510-10E30-000 SUB: 37510B10E20N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.000
15	37520-09G51-000 SUB: 37520B09G30N000	SWITCH ASSY, HORN	1	Rp20.000
16	37740-09G30-000 SUB: 37740B09G10N000	SWITCH ASSY, STOP LAMP	1	Rp20.000
17-1	DISCONTINUE SUB: 09443-06088-000	SPRING	1	-	SCD
17-2	09443-06083-000 SUB: 09443B06083N000	SPRING	1	Rp4.000	RCD/RCMD
18	38500-09G11-000 SUB: 38500B09G11N000	HORN ASSY	1	Rp46.000
19	DISCONTINUE SUB: 01550B0612AN000	BOLT	1	-
