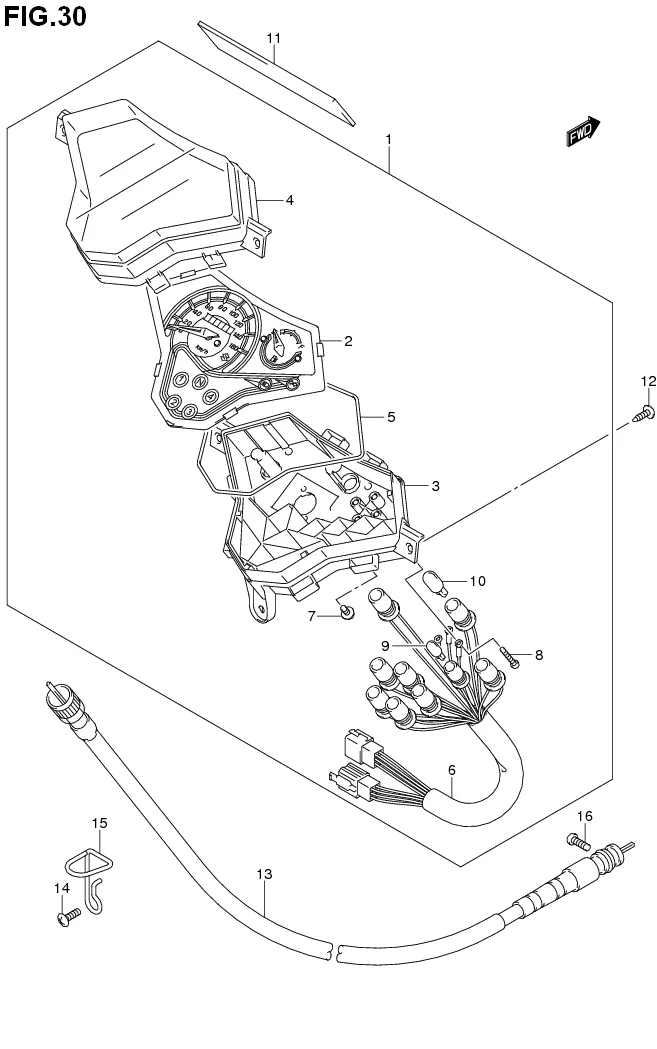

FIG.30 SPEEDOMETER

FIG.30 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 34100B10J00N000		 SPEEDOMETER ASSY 1 -
2 34120-10J00-000
SUB: 34120B10J00N000		 ?BODY ASSY, SPEEDOMETER 1 Rp193.000
3 34111-10J00-000
SUB: 34111B10J00N000		 ?CASE, LOWER 1 Rp29.500
4 34112-10J00-000
SUB: 34112B10J00N000		 ?CASE, UPPER 1 Rp42.500
5 34114-10J00-000
SUB: 34114B10J00N000		 ?CUSHION 1 Rp4.000
6 34173-10J00-000
SUB: 34173B10J00N000		 ?SOCKET 1 Rp54.500
7 34186-10J00-000
SUB: 34186B10J00N000		 ?SCREW 2 Rp4.000
8 DISCONTINUE
SUB: 34383B13H00N000		 ?SCREW (3X20) 3 -
9 09471-12108-000
SUB: 09471B12108N000		 ?BULB (12V1.7W,T6.5) 1 Rp9.500
10 09471-12077-000
SUB: 09471B12077N000		 ?BULB (12V1.7W,T10) 8 Rp6.000
11 34188-09G00-000
SUB: 34188B09G00N000		 CUSHION, SPEEDOMETER 1 Rp7.500
12 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 3 Rp3.500
13 34910-10J00-000
SUB: 34910B10J00N000		 CABLE ASSY, SPEEDOMETER 1 Rp35.500
14 DISCONTINUE
SUB: 34931B20G00N000		 GUIDE, SPEEDOMETER CABLE 1 -
15 02142-0612A-000
SUB: 02142B0612AN000		 SCREW 1 Rp4.000
16 02112-0516A-000
SUB: 02112B0516AN000		 SCREW 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
