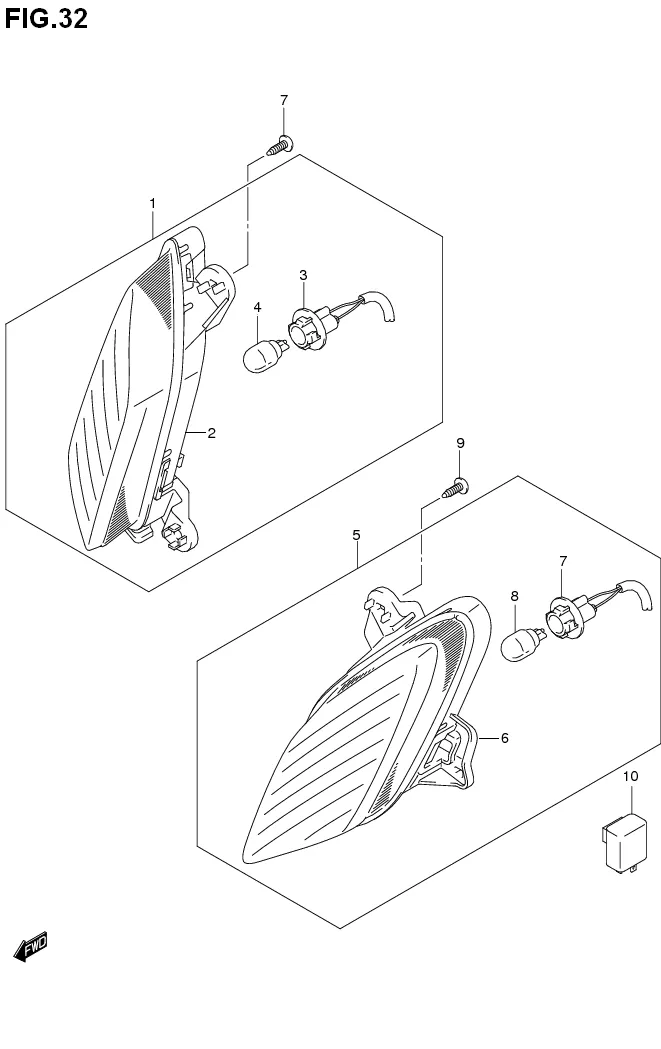

FIG.32 FRONT TURN SIGNAL LAMP

FIG.32 FRONT TURN SIGNAL LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35601-10J00-000 SUB: 35601B10J00N000	LAMP ASSY, FRONT TURN RH	1	Rp67.500
2	35615-10J00-000 SUB: 35615B10J00N000	?LAMP UNIT, FRONT TURN RH	1	Rp49.500
3	35618-10J00-000 SUB: 35618B10J00N000	?CORD ASSY RH	1	Rp15.500
4	09471-12114AS01 SUB: 09471B12203N000	?BULB (12V10W)	1	Rp14.000
5	35602-10J00-000 SUB: 35602B10J00N000	LAMP ASSY, FRONT TURN LH	1	Rp67.500
6	35635-10J00-000 SUB: 35635B10J00N000	?LAMP UNIT, FRONT TURN LH	1	Rp49.500
7	35638-10J00-000 SUB: 35638B10J00N000	?CORD ASSY LH	1	Rp16.000
8	09471-12114AS01 SUB: 09471B12203N000	?BULB (12V10)	1	Rp14.000
9	03541-0516A-000 SUB: 03541B0516AN000	SCREW	6	Rp3.500
10	38610-35491-000 SUB: 38610B09410N000	RELAY ASSY, TURNSIGNAL	1	Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
