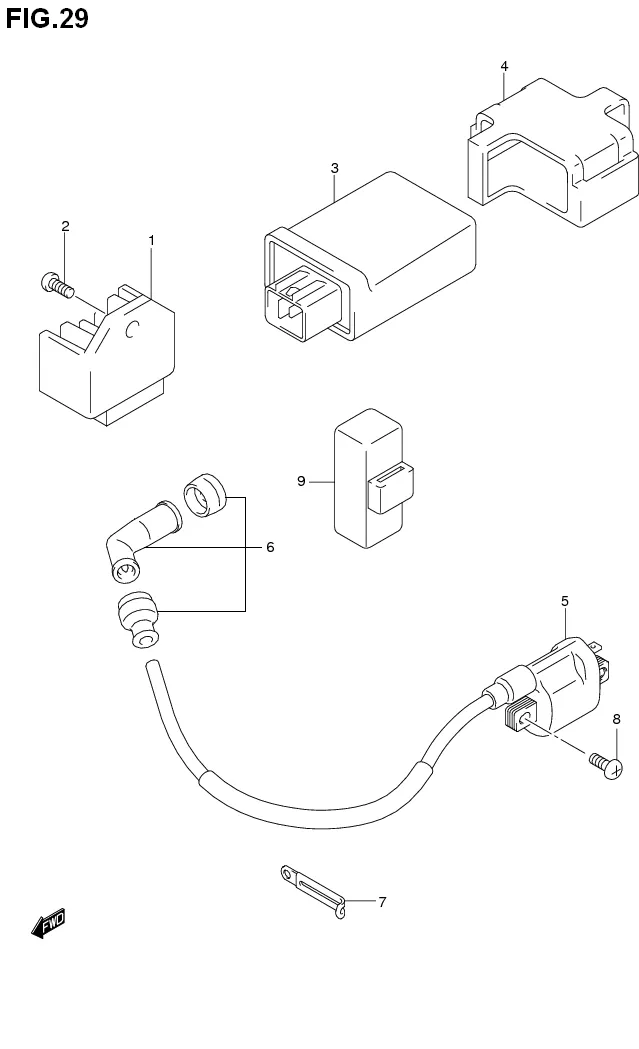

FIG.29 ELECTRICAL

FIG.29 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 32800-41H01-000
SUB: 32800B41H00N000		 RECTIFIER ASSY 1 Rp117.500
2 02112-0612A-000
SUB: 02112B0612AN000		 SCREW 1 Rp3.500
3-1 32900-10J00-000
SUB: 32900B10J00N000		 CDI UNIT 1 Rp559.500 SCD/RCD
3-2 32900-10J00-000
SUB: 32900B10J10N000		 CDI UNIT 1 Rp559.500 RCMD
4 32980-10J00-000
SUB: 32980B10J00N000		 CUSHION, CDI UNIT 1 Rp35.000
5 33410-16H10-000
SUB: 33410B16H10N000		 COIL ASSY, IGNITION 1 Rp74.000
6 33500-16H00-000
SUB: 33500B16H00N000		 CAP, SPARK PLUG 1 Rp41.000
7 09404-06429-000
SUB: 09404B06429N000		 CLAMP (L:45) 1 Rp15.000
8 02112-0616A-000 SCREW 2 Rp3.500
9 31800-16H00-000
SUB: 31800B16H00N000		 RELAY ASSY, STARTING MOTOR 1 Rp64.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
