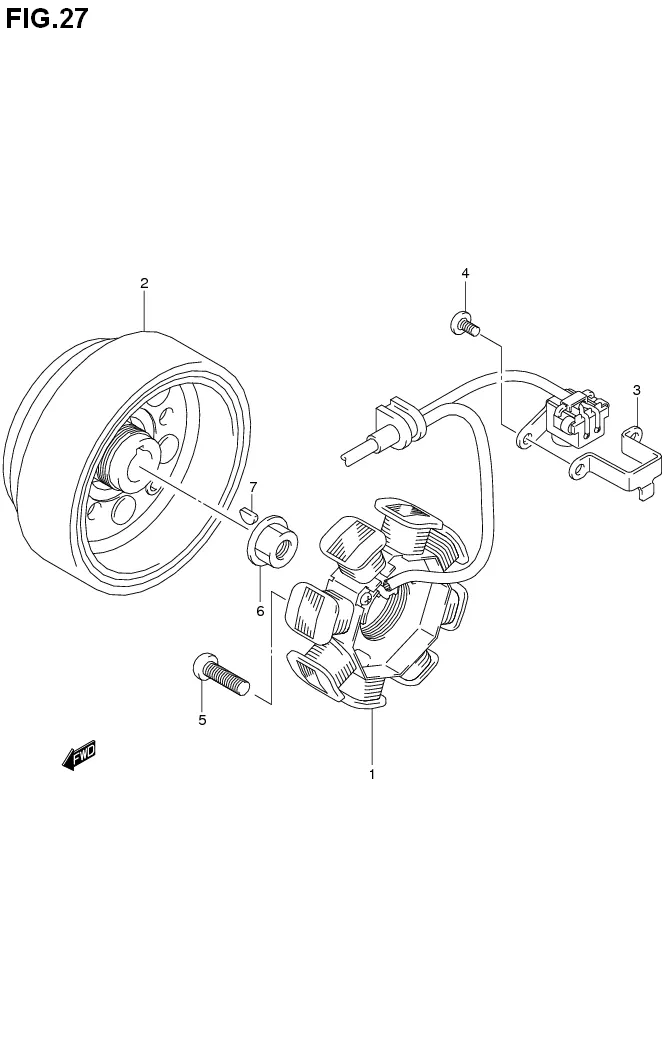

FIG.27 MAGNETO

FIG.27 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 32101-16H30-000
SUB: 32101B16H30N000		 STATOR ASSY 1 Rp217.000
2 32102-16H30-000
SUB: 32102B16H30N000		 ROTOR ASSY 1 Rp256.000
3 DISCONTINUE
SUB: 32371B16H00N000		 CLAMP, MAGNETO LEAD 1 -
4 02142-0510A-000
SUB: 02142B0510AN000		 SCREW 2 Rp4.000
5 02112-0620A-000
SUB: 02112B0620BN000		 SCREW 2 Rp4.000
6 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
7 08341-31039-000
SUB: 08341B31039N000		 KEY 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
