ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.50 ENGINE ELECTRICAL FIG.51 STARTING MOTORFIG.52 GENERATORFIG.53 BATTERY (MT)FIG.54 BATTERY (AT)FIG.55 SPEEDOMETERFIG.56 HEADLAMPFIG.57 FRONT FOG LAMP (GLX)FIG.58 REAR LAMPFIG.59 ROOM LAMPFIG.60 WIRING HARNESSFIG.61 ENGINE HARNESS BRACKET (MT)FIG.62 ENGINE HARNESS BRACKET (AT)FIG.63 ELECTRICAL CONTROL (GL)FIG.64 ELECTRICAL CONTROL (GLX)FIG.65 LOCK SET (GL)FIG.66 LOCK SET (GLX)FIG.67 FRONT WINDOW WIPERFIG.68 WINDOW WASHERFIG.69 REAR WINDOW WIPERFIG.70 TUNER (GL)FIG.71 TUNER (GLX)

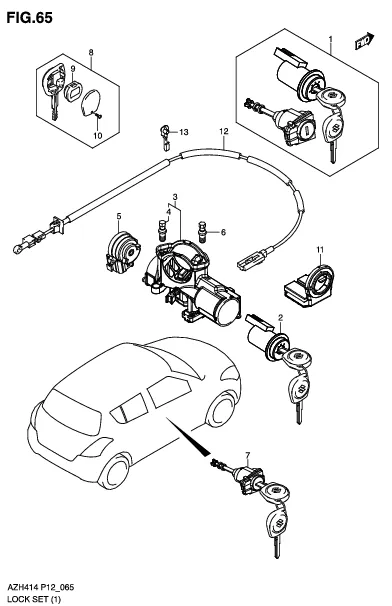

FIG.65 LOCK SET (GL)

FIG.65 LOCK SET (GL)
No No. Part Description Qty Price Per Pcs Remarks
1-1 37104-71880-000 LOCK SET MT 1 Rp1.229.500 MT
1-2 37104-71890-000 LOCK SET AT 1 Rp1.251.500 AT
2-1 37105-71810-000 LOCK ASSY, STEERING MT 1 Rp1.024.000 MT
2-2 37105-71820-000 LOCK ASSY, STEERING AT 1 Rp1.024.000 AT
3-1 37101-58M00-000
SUB: 37101B58M00N000		 BODY, STEERING LOCK MT 1 Rp1.178.500 MT
3-2 37101-58M10-000 BODY, STEERING LOCKAT 1 Rp1.703.000 AT
4 37152-58M00-000 •BOLT, STEERING LOCK 1 Rp215.500
5 37111-58M01-000
SUB: 37111-58M00-000		 SWITCH 1 Rp548.500
6 37152-58M00-000 BOLT, STEERING LOCK 1 Rp215.500
7 82270-58840-000 CYLINDER SET, FRONT DOOR 1 Rp3.021.000
8 DISCONTINUE
SUB: 37145-58M30-000		 KEY, BLANKOPT 1 - OPT
9 37182-68L30-000
SUB: 37182B68L30N000		 •SWITCH ASSY, TRANSMITTER 1 Rp1.102.500
10 37186-81A00-000 •SCREW 1 Rp23.000
11 33970-68L00-000
SUB: 33970B68L00N000		 CONTROLLER ASSY, IMMOBILIZER 1 Rp759.000
12 28551-58M10-000 CABLE, KEY INTERLOCK 1 Rp325.500
13 09403-05316-000 CLAMP 1 Rp36.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
