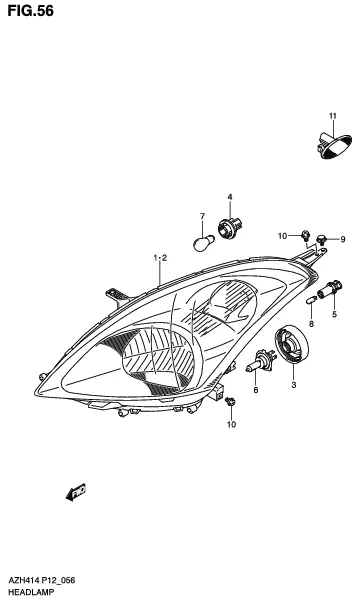

FIG.56 HEADLAMP

FIG.56 HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35120-58M30-000 UNIT, HEADLAMP RH 1 Rp1.933.000
2 35320-58M30-000 UNIT, HEADLAMP LH 1 Rp1.933.000
3 35125-76G00-000 COVER, SOCKET 2 Rp151.500
4 35618-74G00-000 SOCKET, TURNSIGNAL LAMP 2 Rp133.000
5 36118-64L00-000 SOCKET, POSITION LAMP 2 Rp88.500
6 09471-12182-000
SUB: 09471B12182N000		 BULB (12V,60/55W) 2 Rp70.000
7 09471-12186-000
SUB: 09471B12186N000		 BULB (12V,21W) 2 Rp22.000
8 09471-12216-000
SUB: 09471B12216N000		 BULB (12V,5W) 2 Rp15.000
9 09409M08006-000
SUB: 09409M08L01-000		 CLIP 2 Rp5.000
10 35181-71L00-000 SCREW, HEADLAMP 8 Rp22.500
11 36410-61J01-000
SUB: 36410B63J01N000		 LAMP ASSY, SIDE TURN SIGNAL GL 2 Rp56.000 GL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
