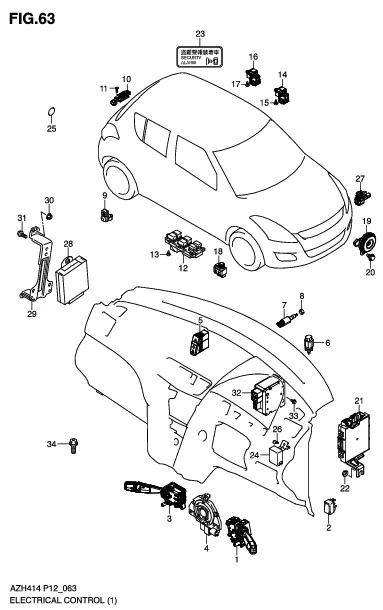

FIG.63 ELECTRICAL CONTROL (GL)

FIG.63 ELECTRICAL CONTROL (GL)
No No. Part Description Qty Price Per Pcs Remarks
1 37210-58M00-000 SWITCH ASSY, LIGHTING & TURN 1 Rp735.000
2 37285-58M00-000 CAP, OPTION SWITCH HOLE 0 Rp56.000
3 37310-58M00-000 SWITCH ASSY, WIPER & WASHER 1 Rp930.000
4 37485M74L00-000 BODY ASSY,CANCEL CAM & HORN 1 Rp146.000
5 37430-58M10-5PK SWITCH ASSY, HAZARD & SECURITY (BLACK) 1 Rp500.500
6 37740-58M00-000 SET, STOP LAMP SWITCH 1 Rp262.000
7 37970-64J00-000 SWITCH ASSY, CLUTCHMT 1 Rp507.000 MT
8 09140-10043-000 NUTMT 1 Rp14.500 MT
9 37670M60M10-000
SUB: 37670M60M00-000		 SWITCH ASSY, DOOR 4 Rp35.000
10 37178-58M00-000 SWITCH ASSY, BACK DOOR 1 Rp366.500
11 DISCONTINUE
SUB: 09132-04035-000		 SCREW (4X14) 2 -
12 37990-58M03-000
SUB: 37990-58M00-000		 SWITCH ASSY, POWER WINDOW MAIN 1 Rp1.509.500
13 03541-0410A-000 SCREW 3 Rp11.000
14 37995M79M02-000
SUB: 37995-58M00-000		 SWITCH ASSY, POWER WINDOW SUB 1 Rp109.500
15 03541-0410A-000 SCREW 1 Rp11.000
16 37995M79M02-000
SUB: 37995-58M00-000		 SWITCH ASSY, POWER WINDOW REAR 2 Rp109.500
17 03541-0410A-000 SCREW 2 Rp11.000
18 37950-62J21-000
SUB: 37950-62J20-000		 SWITCH ASSY, MIRROR 1 Rp278.500
19 38500-58M00-000 HORN ASSY 1 Rp241.500
20 09115-08001-000 BOLT (8X18) 1 Rp21.500
21 36770-58M20-000 CONTROLLER ASSY, BODY ELECTRIC 1 Rp5.488.500
22 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
23 36771-58J00-000 LABEL, SECURITY ALARM 1 Rp30.000
24 37190-68L00-000 RECEIVER ASSY, KEYLESS 1 Rp2.374.000
25 77191-79F00-000
SUB: 77191B79F00N000		 SEAL, KEYLESS ANTENNA 1 Rp7.500
26 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 1 Rp3.500
27 95643-58J00-000 SENSOR, OUTSIDE AIR TEMP 1 Rp262.000
28 38880-58MA0-000 CONTROLLER ASSY, AT 1 Rp11.978.500 AT
29 38881-58MA0-000 BRACKET, AT CONTAT 1 Rp147.500 AT
30 08316-1008A-000
SUB: 08316B1008AN000		 NUT AT 1 Rp3.500 AT
31 02162-0512A-000 SCREW AT 2 Rp11.500 AT
32 38720-58M05-000
SUB: 38720-58M00-000		 CONTROLLER ASSY, POWER STEERING 1 Rp8.064.500
33 02162-0508A-000
SUB: 02162B0508AN000		 SCREW 2 Rp3.500
34 02162-0612A-000 BOLT 3 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
