  5. FIG.60 WIRING HARNESS

ALL NEW SWIFT

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.50 ENGINE ELECTRICAL FIG.51 STARTING MOTORFIG.52 GENERATORFIG.53 BATTERY (MT)FIG.54 BATTERY (AT)FIG.55 SPEEDOMETERFIG.56 HEADLAMPFIG.57 FRONT FOG LAMP (GLX)FIG.58 REAR LAMPFIG.59 ROOM LAMPFIG.60 WIRING HARNESSFIG.61 ENGINE HARNESS BRACKET (MT)FIG.62 ENGINE HARNESS BRACKET (AT)FIG.63 ELECTRICAL CONTROL (GL)FIG.64 ELECTRICAL CONTROL (GLX)FIG.65 LOCK SET (GL)FIG.66 LOCK SET (GLX)FIG.67 FRONT WINDOW WIPERFIG.68 WINDOW WASHERFIG.69 REAR WINDOW WIPERFIG.70 TUNER (GL)FIG.71 TUNER (GLX)

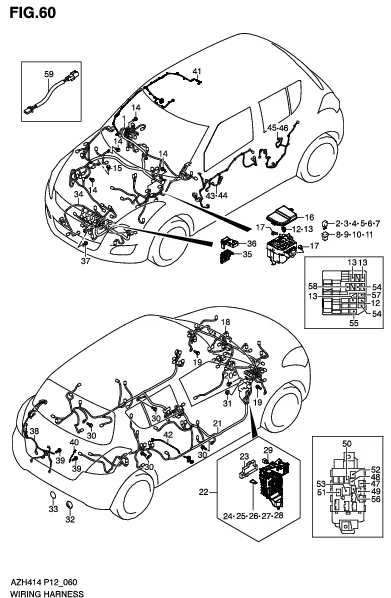

FIG.60 WIRING HARNESS

FIG.60 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-Jan 36610-58M20-000 HARNESS ASSY, MAIN GL:MT 1 Rp6.958.000 GL:MT
2-Jan 36610-58M40-000 HARNESS ASSY, MAIN GL:AT 1 Rp7.013.500 GL:AT
2 09481-07504-000 •FUSE (7.5A) 1 Rp15.000
3-Jan 36610-58MC0-000 HARNESS ASSY, MAIN GLX:MT 1 Rp7.324.000 GLX:MT
3 09481-10504-000 •FUSE (10A) 1 Rp12.500
4-Jan 36610-58MD0-000 HARNESS ASSY, MAIN GLX:AT 1 Rp7.431.000 GLX:AT
4 09481-15504-000 •FUSE (15A) 0 Rp13.000
5 09481-20504-000 •FUSE (20A)GLX 2 Rp17.500 GLX
6 09481-25504-000 •FUSE (25A) 2 Rp17.500
7 09481-30504-000 •FUSE (30A) 1 Rp16.500
8 09481-30403-000 •FUSE (30A) 3 Rp41.000
9 09481-40403-000 •FUSE (40A) 2 Rp51.500
10 09481-50403-000 •FUSE (50A) 1 Rp52.500
11 09481-60403-000 •FUSE (60A) 1 Rp52.000
12 38860-58M00-000 •RELAY ASSY, STARTER 1 Rp91.000
13 38860-58M00-000 •RELAY ASSY, RADIATOR 3 Rp91.000
14 09115-06005-000 BOLT (6X16) 4 Rp14.000
15 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
16 36717-68L02-000
SUB: 36717-68L01-000		 COVER, RELAY BOX 1 Rp339.500
17 02162-0616A-000 SCREW 2 Rp3.000
18-1 36620-58M30-000 HARNESS ASSY, INSTRUMENT PANEL GL 1 Rp2.234.000 GL
18-2 36620-58MB0-000 HARNESS ASSY, INSTRUMENT PANEL GLX 1 Rp2.944.500 GLX
19 09115-06005-000 BOLT (6X16) 2 Rp14.000
20 02162-0612A-000 SCREW 1 Rp11.000
21-1 36630-58M60-000 HARNESS ASSY, FLOORGL:MT 1 Rp5.602.500 GL:MT
21-2 36630-58M70-000 HARNESS ASSY, FLOORGL:AT 1 Rp5.676.000 GL:AT
21-3 36630-58MC0-000 HARNESS ASSY, FLOORGLX:MT 1 Rp6.679.500 GLX:MT
21-4 36630-58MG0-000 HARNESS ASSY, FLOORGLX:AT 1 Rp6.568.000 GLX:AT
22-1 36710-68L02-000 •BOX ASSY, JUNCTIONGL 1 Rp2.298.000 GL
22-2 36710-68L13-000
SUB: 36710-68L12-000		 •BOX ASSY, JUNCTIONGLX 1 Rp3.055.500 GLX
23 36717-68LP3-000
SUB: 36717-68LP2-000		 ••COVER, FUSE 1 Rp87.500
24 09481-07504-000 ••FUSE (7.5A) 7 Rp15.000
25 09481-10504-000 ••FUSE (10A) 10 Rp12.500
26 09481-15504-000 ••FUSE (15A) 8 Rp13.000
27 09481-20504-000 ••FUSE (20A) 6 Rp17.500
28 09481-25504-000 ••FUSE (25A) 1 Rp17.500
29 09481-30403-000 ••FUSE (30A) 2 Rp41.000
30 09115-06005-000 BOLT (6X16) 4 Rp14.000
31 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
32 09250-30002-000
SUB: 72999-67H00-000		 CAP, HARNESS HOLEGL 1 Rp5.500 GL
33 77191-79F00-000
SUB: 77191B79F00N000		 SEAL, HARNESS HOLEGL 2 Rp7.500 GL
34-1 36650-58M10-000 HARNESS ASSY, ENGINE MT 1 Rp4.208.000 MT
34-2 36650-58M20-000 HARNESS ASSY, ENGINE AT 1 Rp4.951.500 AT
35 36739-86J00-000 •FUSE, BATTERY 1 Rp327.000
36 36694-68K10-000
SUB: 36694B68K00N000		 •COVER, BATTERY TERMINAL 1 Rp98.000
37 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
38-1 36680-58M00-000 HARNESS ASSY, BACK DOORGL 1 Rp521.500 GL
38-2 36680-58M30-000 HARNESS ASSY, BACK DOORGLX 1 Rp613.500 GLX
39-1 09115-06005-000 BOLT (6X16)GL 1 Rp14.000 GL
39-2 09115-06005-000 BOLT (6X16)GLX 2 Rp14.000 GLX
40 DISCONTINUE
SUB: 36891B80G00N000		 WIRE, REAR DEFOGGER GROUND GLX 1 - GLX
41 36820-58M00-000 WIRE, ROOF 1 Rp225.000
42 36840-58M00-000 WIRE, FUEL 1 Rp241.500
43-2 36756-58M30-000 WIRE, DRIVER DOORGLX 1 Rp1.043.500 GLX
43-1 36756-58M00-000 WIRE, DRIVER DOORGL 1 Rp752.000 GL
44-1 36757-58M00-000 WIRE, SUB DOOR GL 1 Rp492.000 GL
44-2 36757-58M30-000 WIRE, SUB DOOR GLX 1 Rp669.000 GLX
45 36751-58M00-000 WIRE, REAR DOOR RH 1 Rp497.500
46 36751-58MA0-000 WIRE, REAR DOOR LH 1 Rp497.500
47 38860-58M00-000 RELAY ASSY, HEATER 1 Rp91.000
48 38860-58M00-000 RELAY ASSY, HORN 1 Rp91.000
49 38860-58M00-000 RELAY ASSY, REAR DEFOGGERGLX 1 Rp91.000 GLX
50 38860-58M00-000 RELAY ASSY, ACCESSORY SOCKETGLX 1 Rp91.000 GLX
51 38860-58M00-000 RELAY ASSY, IGNITION 1 GLX 1 Rp91.000 GLX
52 38860-58M00-000 RELAY ASSY, TAIL GLX 1 Rp91.000 GLX
53 38860-58M10-000 RELAY ASSY, IGNITION 2 GLX 1 Rp1.301.000 GLX
54 38860-58M00-000 RELAY ASSY, MAIN 2 Rp91.000
55 38860-58M00-000 RELAY ASSY, FRONT FOG LAMPGLX 1 Rp91.000 GLX
56 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, REAR WIPER 1 Rp47.000
57 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, A/C 1 Rp47.000
58 38860-58M00-000 RELAY ASSY, AT 1 Rp91.000
59 36691-68L00-000 WIRE, PASSENGER AIR BAG (OPT:SEE SERVICE MANUAL) 1 Rp281.000 OPT:SEE SERVICE MANUAL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
