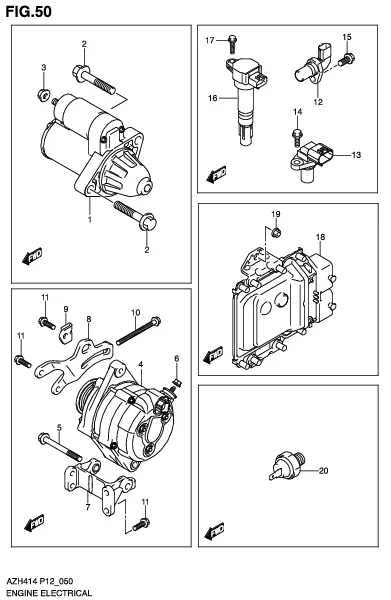

FIG.50 ENGINE ELECTRICAL

FIG.50 ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31100-58M10-000
SUB: 31100-58M00-000		 MOTOR ASSY, STARTING 1 Rp5.075.000
2 01550-1060A-000 BOLT 2 Rp5.500
3 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
4 31400-58M00-000 GENERATOR ASSY 1 Rp5.677.000
5 01550-1085A-000 BOLT 1 Rp7.000
6 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
7 11550M68K00-000 BRACKET, GENERATOR 1 Rp237.500
8 11561-69L00-000
SUB: 11561B69L00N000		 ARM, GENERATOR BELT ADJUSTER 1 Rp54.500
9 11562-69L00-000
SUB: 11562B69L00N000		 ADJUSTER, GENERATOR BELT 1 Rp8.000
10 11563-68P00-000
SUB: 11563-65L00-000		 BOLT, GENERATOR ADJUSTING 1 Rp29.000
11 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 5 Rp3.500
12 33220-50M00-000 SENSOR ASSY, CAM POSITION 1 Rp970.000
13 33220-64L10-000
SUB: 33220-50M10-000		 SENSOR ASSY, CRANK POSITION 1 Rp883.000
14 09103-06283-000 BOLT (6X16) 1 Rp20.500
15 09103-06283-000 BOLT (6X16) 1 Rp20.500
16 33400-51K60-000 COIL ASSY, IGNITION 4 Rp1.478.000
17 09135-06024-000 BOLT (6X23) 4 Rp16.500
18-1 33920-58MA0-000 CONTROLLER ASSY, EPI(MT) 1 Rp5.548.000 MT
18-2 33920-58MB0-000 CONTROLLER ASSY, EPI(AT) 1 Rp5.548.000 AT
19 09159-06076-000 NUT 2 Rp19.500
20 37820-80GP0-000
SUB: 37820-80G01-000		 SWITCH ASSY, OIL PRESSURE 1 Rp144.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
