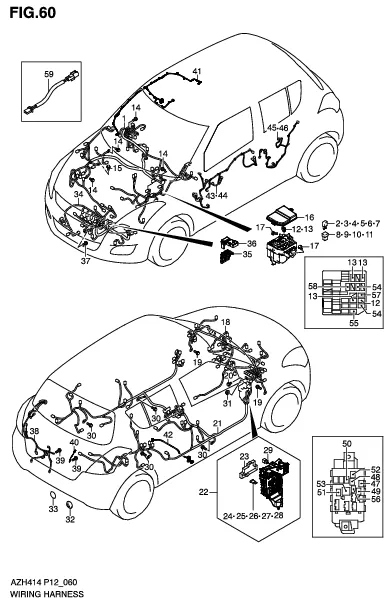

FIG.60 WIRING HARNESS

FIG.60 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-Jan 36610-58M20-000 HARNESS ASSY, MAIN GL:MT 1 Rp6.958.000 GL:MT
2-Jan 36610-58M40-000 HARNESS ASSY, MAIN GL:AT 1 Rp7.013.500 GL:AT
2 09481-07504-000 •FUSE (7.5A) 1 Rp13.000
3-Jan 36610-58MC0-000 HARNESS ASSY, MAIN GLX:MT 1 Rp7.324.000 GLX:MT
3 09481-10504-000 •FUSE (10A) 1 Rp12.500
4-Jan 36610-58MD0-000 HARNESS ASSY, MAIN GLX:AT 1 Rp7.431.000 GLX:AT
4 09481-15504-000 •FUSE (15A) 0 Rp13.000
5 09481-20504-000 •FUSE (20A)GLX 2 Rp14.500 GLX
6 09481-25504-000 •FUSE (25A) 2 Rp17.500
7 09481-30504-000 •FUSE (30A) 1 Rp15.000
8 09481-30403-000 •FUSE (30A) 3 Rp41.000
9 09481-40403-000 •FUSE (40A) 2 Rp51.500
10 09481-50403-000 •FUSE (50A) 1 Rp51.000
11 09481-60403-000 •FUSE (60A) 1 Rp52.000
12 38860-58M00-000 •RELAY ASSY, STARTER 1 Rp91.000
13 38860-58M00-000 •RELAY ASSY, RADIATOR 3 Rp91.000
14 09115-06005-000 BOLT (6X16) 4 Rp14.000
15 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
16 36717-68L02-000
SUB: 36717-68L01-000		 COVER, RELAY BOX 1 Rp339.500
17 02162-0616A-000 SCREW 2 Rp3.000
18-1 36620-58M30-000 HARNESS ASSY, INSTRUMENT PANEL GL 1 Rp2.234.000 GL
18-2 36620-58MB0-000 HARNESS ASSY, INSTRUMENT PANEL GLX 1 Rp2.944.500 GLX
19 09115-06005-000 BOLT (6X16) 2 Rp14.000
20 02162-0612A-000 SCREW 1 Rp11.000
21-1 36630-58M60-000 HARNESS ASSY, FLOORGL:MT 1 Rp5.602.500 GL:MT
21-2 36630-58M70-000 HARNESS ASSY, FLOORGL:AT 1 Rp5.676.000 GL:AT
21-3 36630-58MC0-000 HARNESS ASSY, FLOORGLX:MT 1 Rp6.679.500 GLX:MT
21-4 36630-58MG0-000 HARNESS ASSY, FLOORGLX:AT 1 Rp6.568.000 GLX:AT
22-1 36710-68L02-000 •BOX ASSY, JUNCTIONGL 1 Rp2.298.000 GL
22-2 36710-68L13-000
SUB: 36710-68L12-000		 •BOX ASSY, JUNCTIONGLX 1 Rp3.055.500 GLX
23 36717-68LP3-000
SUB: 36717-68LP2-000		 ••COVER, FUSE 1 Rp87.500
24 09481-07504-000 ••FUSE (7.5A) 7 Rp13.000
25 09481-10504-000 ••FUSE (10A) 10 Rp12.500
26 09481-15504-000 ••FUSE (15A) 8 Rp13.000
27 09481-20504-000 ••FUSE (20A) 6 Rp14.500
28 09481-25504-000 ••FUSE (25A) 1 Rp17.500
29 09481-30403-000 ••FUSE (30A) 2 Rp41.000
30 09115-06005-000 BOLT (6X16) 4 Rp14.000
31 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
32 09250-30002-000
SUB: 72999-67H00-000		 CAP, HARNESS HOLEGL 1 Rp5.500 GL
33 77191-79F00-000
SUB: 77191B79F00N000		 SEAL, HARNESS HOLEGL 2 Rp7.500 GL
34-1 36650-58M10-000 HARNESS ASSY, ENGINE MT 1 Rp4.208.000 MT
34-2 36650-58M20-000 HARNESS ASSY, ENGINE AT 1 Rp4.951.500 AT
35 36739-86J00-000 •FUSE, BATTERY 1 Rp307.000
36 36694-68K10-000
SUB: 36694B68K00N000		 •COVER, BATTERY TERMINAL 1 Rp98.000
37 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
38-1 36680-58M00-000 HARNESS ASSY, BACK DOORGL 1 Rp521.500 GL
38-2 36680-58M30-000 HARNESS ASSY, BACK DOORGLX 1 Rp613.500 GLX
39-1 09115-06005-000 BOLT (6X16)GL 1 Rp14.000 GL
39-2 09115-06005-000 BOLT (6X16)GLX 2 Rp14.000 GLX
40 DISCONTINUE
SUB: 36891B80G00N000		 WIRE, REAR DEFOGGER GROUND GLX 1 - GLX
41 36820-58M00-000 WIRE, ROOF 1 Rp225.000
42 36840-58M00-000 WIRE, FUEL 1 Rp241.500
43-2 36756-58M30-000 WIRE, DRIVER DOORGLX 1 Rp1.043.500 GLX
43-1 36756-58M00-000 WIRE, DRIVER DOORGL 1 Rp752.000 GL
44-1 36757-58M00-000 WIRE, SUB DOOR GL 1 Rp492.000 GL
44-2 36757-58M30-000 WIRE, SUB DOOR GLX 1 Rp669.000 GLX
45 36751-58M00-000 WIRE, REAR DOOR RH 1 Rp497.500
46 36751-58MA0-000 WIRE, REAR DOOR LH 1 Rp497.500
47 38860-58M00-000 RELAY ASSY, HEATER 1 Rp91.000
48 38860-58M00-000 RELAY ASSY, HORN 1 Rp91.000
49 38860-58M00-000 RELAY ASSY, REAR DEFOGGERGLX 1 Rp91.000 GLX
50 38860-58M00-000 RELAY ASSY, ACCESSORY SOCKETGLX 1 Rp91.000 GLX
51 38860-58M00-000 RELAY ASSY, IGNITION 1 GLX 1 Rp91.000 GLX
52 38860-58M00-000 RELAY ASSY, TAIL GLX 1 Rp91.000 GLX
53 38860-58M10-000 RELAY ASSY, IGNITION 2 GLX 1 Rp1.301.000 GLX
54 38860-58M00-000 RELAY ASSY, MAIN 2 Rp91.000
55 38860-58M00-000 RELAY ASSY, FRONT FOG LAMPGLX 1 Rp91.000 GLX
56 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, REAR WIPER 1 Rp47.000
57 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, A/C 1 Rp47.000
58 38860-58M00-000 RELAY ASSY, AT 1 Rp91.000
59 36691-68L00-000 WIRE, PASSENGER AIR BAG (OPT:SEE SERVICE MANUAL) 1 Rp240.500 OPT:SEE SERVICE MANUAL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
