All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 400A FRONT SUSPENSION FIG. 408A FRONT STABILIZER FIG. 410A FRONT DRIVE SHAFT (5MT)FIG. 410B FRONT DRIVE SHAFT (4AT)FIG. 418A FRONT SUSPENSION FRAME FIG. 430A REAR SUSPENSION FIG. 449A ROAD WHEEL/TIRE (ERTIGA:GA)FIG. 449B ROAD WHEEL/TIRE (ERTIGA:GL)FIG. 449C ROAD WHEEL/TIRE (ERTIGA:(GX,GX_LTD))FIG. 451A STEERING WHEEL (GA)FIG. 451B STEERING WHEEL (GL)FIG. 451C STEERING WHEEL (GX,GX_LTD)FIG. 453A STEERING COLUMN (GA,GL)FIG. 453B STEERING COLUMN (GX,GX_LTD)FIG. 480A STEERING UNIT FIG. 490A PEDAL/PEDAL BRACKET (5MT)FIG. 490B PEDAL/PEDAL BRACKET (4AT)FIG. 500A BRAKE MASTER CYLINDER (5MT)FIG. 500B BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 500C BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 50CA FRONT BRAKE PIPING (N_ESP)FIG. 50CB FRONT BRAKE PIPING (W_ESP)FIG. 50DA REAR BRAKE PIPING FIG. 510A ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A FRONT WHEEL BRAKE FIG. 530A REAR WHEEL BRAKE FIG. 542A PARKING BRAKE

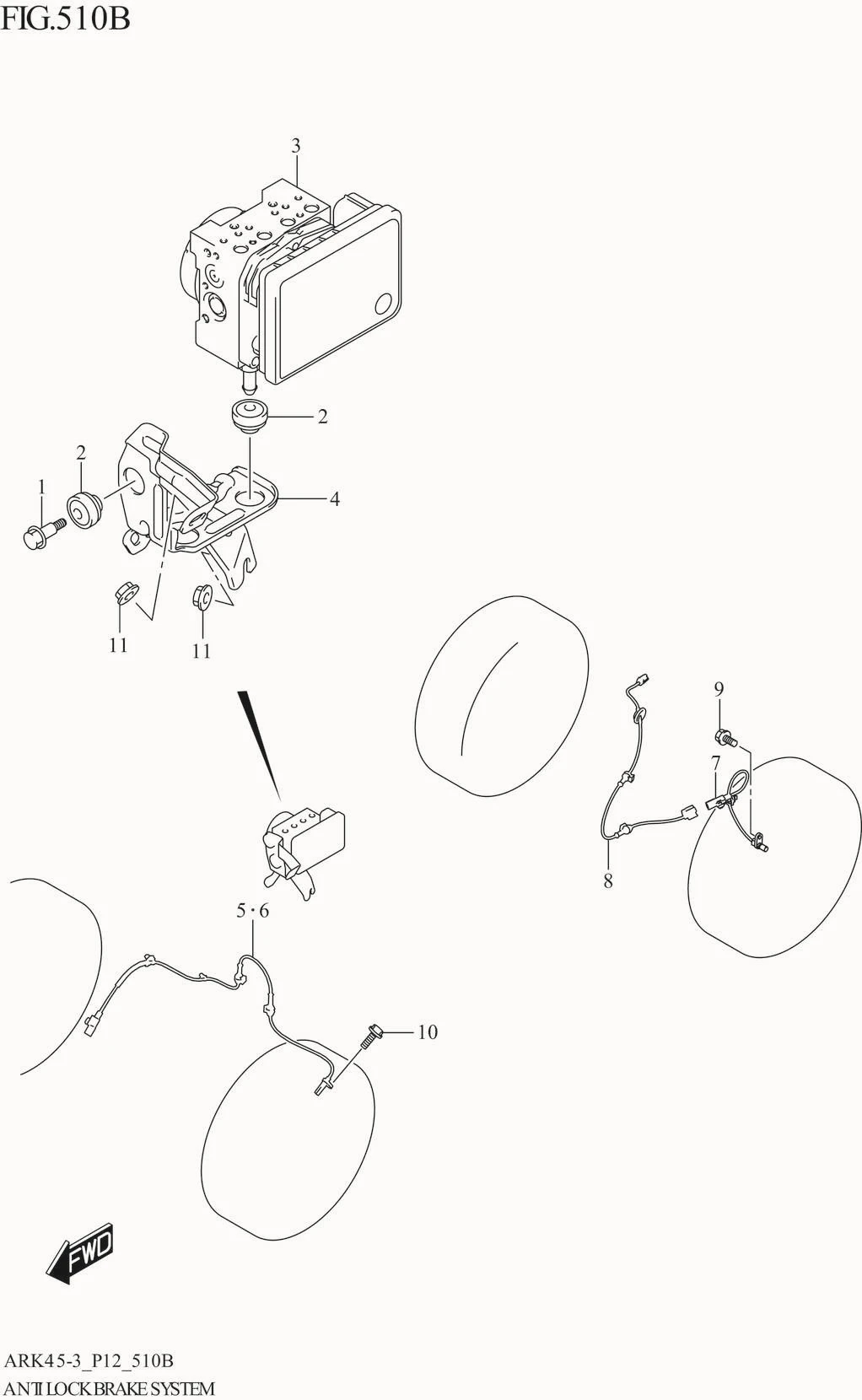

FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)

FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	56111-75F00-000	BOLT,ACTUATOR MOUNT	1	Rp42.500
2	56112-75F00-000	DAMPER,ACTUATOR MOUNT	3	Rp40.000
3-1	56130-73RA1-000 SUB: 56130-73RA0-000	ACTUATOR ASSY,ESP	1	Rp5.803.000
3-2	56130-73RB1-000 SUB: 56130-73RB0-000	ACTUATOR ASSY,ESP	1	Rp5.671.000
4	56161-68P50-000	BRACKET,ESP ACTUATOR	1	Rp45.500
5	56210-73R00-000	SENSOR,FR WHEEL,R	1	Rp175.000
6	56220-73R00-000	SENSOR,FR WHEEL,L	1	Rp175.000
7	56310-73R00-000	SENSOR,RR WHEEL	2	Rp137.500
8	56315-73R00-000	HARNESS,RR WHEEL SENSOR	2	Rp109.500
9	DISCONTINUE SUB: 01550B0612AN000	BOLT (6X12)	2	-
10	02162-0616A-000	SCREW (6X16)	2	Rp3.000
11	08316-1008A-000	NUT	2	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
