All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 400A FRONT SUSPENSION FIG. 408A FRONT STABILIZER FIG. 410A FRONT DRIVE SHAFT (5MT)FIG. 410B FRONT DRIVE SHAFT (4AT)FIG. 418A FRONT SUSPENSION FRAME FIG. 430A REAR SUSPENSION FIG. 449A ROAD WHEEL/TIRE (ERTIGA:GA)FIG. 449B ROAD WHEEL/TIRE (ERTIGA:GL)FIG. 449C ROAD WHEEL/TIRE (ERTIGA:(GX,GX_LTD))FIG. 451A STEERING WHEEL (GA)FIG. 451B STEERING WHEEL (GL)FIG. 451C STEERING WHEEL (GX,GX_LTD)FIG. 453A STEERING COLUMN (GA,GL)FIG. 453B STEERING COLUMN (GX,GX_LTD)FIG. 480A STEERING UNIT FIG. 490A PEDAL/PEDAL BRACKET (5MT)FIG. 490B PEDAL/PEDAL BRACKET (4AT)FIG. 500A BRAKE MASTER CYLINDER (5MT)FIG. 500B BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 500C BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 50CA FRONT BRAKE PIPING (N_ESP)FIG. 50CB FRONT BRAKE PIPING (W_ESP)FIG. 50DA REAR BRAKE PIPING FIG. 510A ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A FRONT WHEEL BRAKE FIG. 530A REAR WHEEL BRAKE FIG. 542A PARKING BRAKE

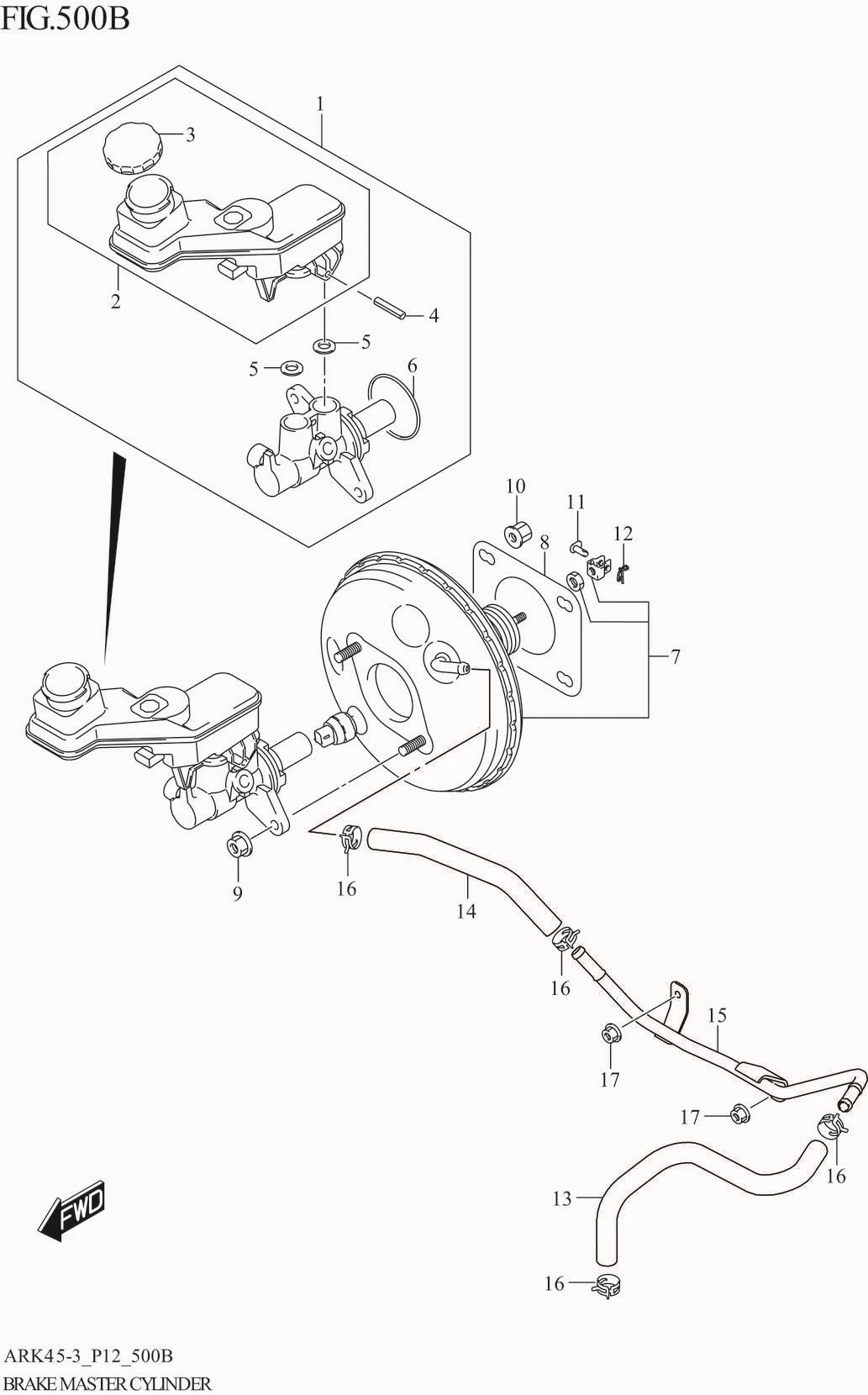

FIG. 500B BRAKE MASTER CYLINDER (4AT:N_ESP)

FIG. 500B BRAKE MASTER CYLINDER (4AT:N_ESP)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	51100-73RM0-000	CYLINDER ASSY,BRAKE MASTER	1	Rp1.808.500
2	51200-73RM0-000	.RESERVOIR ASSY,BRAKE MASTER	1	Rp262.500
3	51220-60KA0-000 SUB: 51220B60KA0N000	..CAP,RESERVOIR	1	Rp75.000
4	09205-05003-000	.PIN,SPRING (5X45)	1	Rp13.500
5	51232-67L20-000 SUB: 51232B67L20N000	.GROMMET,RSVR CONNECTOR	2	Rp13.000
6	51185-85K00-000	.O-RING,MASTER CYLINDER	1	Rp12.500
7	51300-73RM0-000	BOOSTER ASSY,BRAKE MASTER	1	Rp1.540.500
8	51132-82003-000	PACKING,BRAKE MASTER CYLINDER	1	Rp33.000
9	09159-08075-000	NUT (M8)	2	Rp14.000
10	09159-08150-000	NUT (M8X1.25)	4	Rp16.500
11	09200M08052-000	PIN (D:8,L1:23,L2:17.5)	1	Rp13.500
12	09385-08007-000	PIN,SNAP (L:21)	1	Rp16.500
13	51020-73R00-000	HOSE,VACUUM PIPE TO INTK	1	Rp58.500
14	51811-73R00-000	HOSE,VACUUM BSTR TO PIPE	1	Rp35.000
15	51870-73R00-000	PIPE,BRAKE VACUUM	1	Rp99.000
16	09401-15420-000	CLIP	4	Rp17.000
17	08316-1006A-000	NUT (6X12)	2	Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
