All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 400A FRONT SUSPENSION FIG. 408A FRONT STABILIZER FIG. 410A FRONT DRIVE SHAFT (5MT)FIG. 410B FRONT DRIVE SHAFT (4AT)FIG. 418A FRONT SUSPENSION FRAME FIG. 430A REAR SUSPENSION FIG. 449A ROAD WHEEL/TIRE (ERTIGA:GA)FIG. 449B ROAD WHEEL/TIRE (ERTIGA:GL)FIG. 449C ROAD WHEEL/TIRE (ERTIGA:(GX,GX_LTD))FIG. 451A STEERING WHEEL (GA)FIG. 451B STEERING WHEEL (GL)FIG. 451C STEERING WHEEL (GX,GX_LTD)FIG. 453A STEERING COLUMN (GA,GL)FIG. 453B STEERING COLUMN (GX,GX_LTD)FIG. 480A STEERING UNIT FIG. 490A PEDAL/PEDAL BRACKET (5MT)FIG. 490B PEDAL/PEDAL BRACKET (4AT)FIG. 500A BRAKE MASTER CYLINDER (5MT)FIG. 500B BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 500C BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 50CA FRONT BRAKE PIPING (N_ESP)FIG. 50CB FRONT BRAKE PIPING (W_ESP)FIG. 50DA REAR BRAKE PIPING FIG. 510A ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A FRONT WHEEL BRAKE FIG. 530A REAR WHEEL BRAKE FIG. 542A PARKING BRAKE

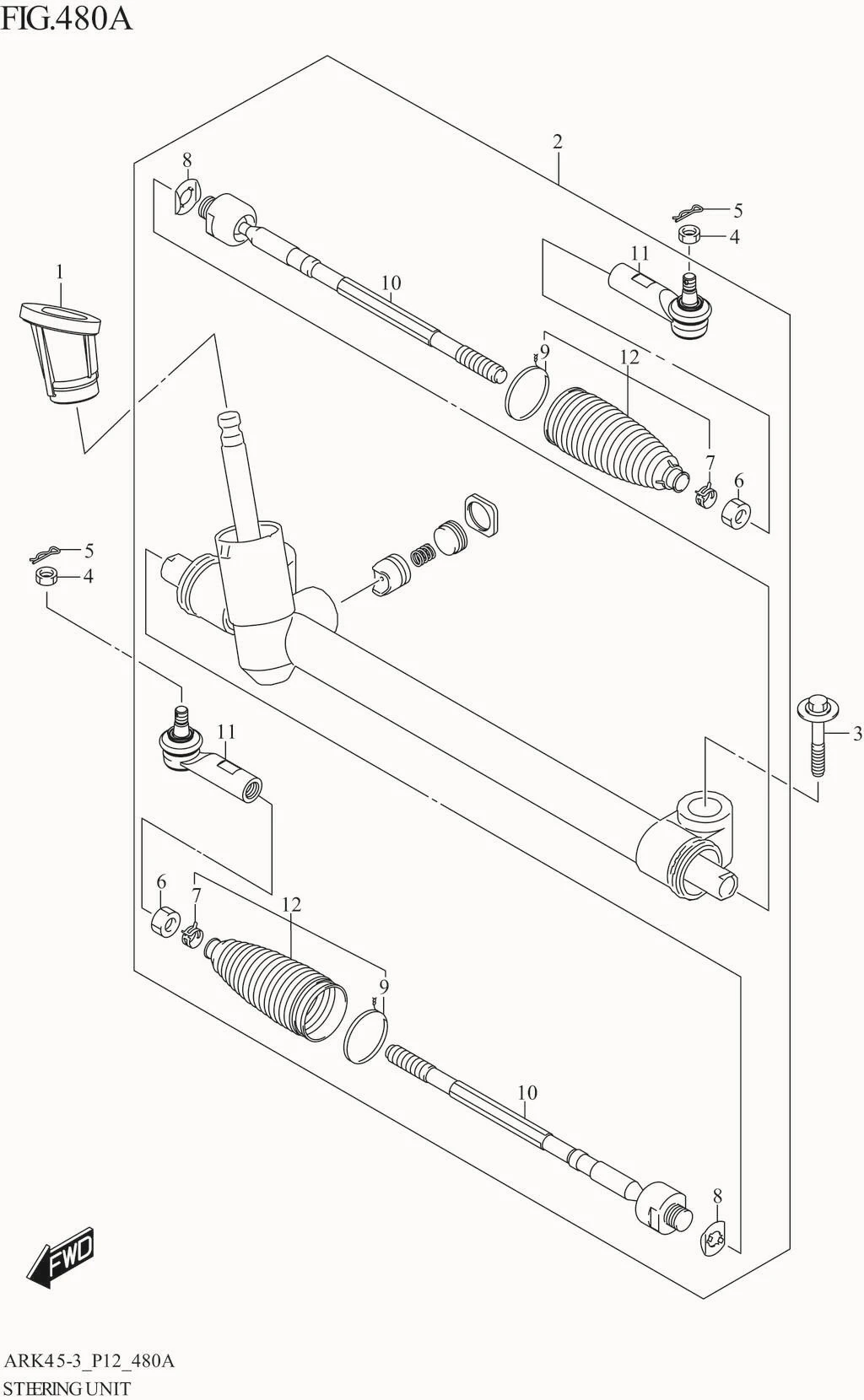

FIG. 480A STEERING UNIT

FIG. 480A STEERING UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48450-52R00-000	PACKING,STRG GEAR	1	Rp49.000
2	48500-73R01-000 SUB: 48500-73R00-000	BOX ASSY,STRG GEAR	1	Rp2.477.500
3	09116-12010-000	BOLT (12X77)	2	Rp60.000
4	09140-12039-000 SUB: 09140B12039N000	NUT (M12)	2	Rp6.500
5	09385-12002-000 SUB: 09385B12002N000	PIN,SNAP	2	Rp4.500
6	48817-73R00-000	NUT,TIE-ROD END LOCK	1	Rp61.500
7	48871-73R00-000	CLIP, RACK BOOT	1	Rp60.000
8	47741-73R00-000	WASHER, STEERING TIE-ROD LOCK	1	-
9	48575-73R00-000	WIRE, STEERING	1	Rp74.500
10	48830-73R01-000 SUB: 48830-73R00-000	TIE-ROD COMP, STEERING	1	Rp511.000
11	48810-73R00-000	END COMP, STEERING TIE-ROD	1	Rp200.500
12	48571-73R00-000	BOOT, STEERING	1	Rp375.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
