All New Ertiga Type 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 400A FRONT SUSPENSION FIG. 408A FRONT STABILIZER FIG. 410A FRONT DRIVE SHAFT (5MT)FIG. 410B FRONT DRIVE SHAFT (4AT)FIG. 418A FRONT SUSPENSION FRAME FIG. 430A REAR SUSPENSION FIG. 449A ROAD WHEEL/TIRE (ERTIGA:GA)FIG. 449B ROAD WHEEL/TIRE (ERTIGA:GL)FIG. 449C ROAD WHEEL/TIRE (ERTIGA:(GX,GX_LTD))FIG. 451A STEERING WHEEL (GA)FIG. 451B STEERING WHEEL (GL)FIG. 451C STEERING WHEEL (GX,GX_LTD)FIG. 453A STEERING COLUMN (GA,GL)FIG. 453B STEERING COLUMN (GX,GX_LTD)FIG. 480A STEERING UNIT FIG. 490A PEDAL/PEDAL BRACKET (5MT)FIG. 490B PEDAL/PEDAL BRACKET (4AT)FIG. 500A BRAKE MASTER CYLINDER (5MT)FIG. 500B BRAKE MASTER CYLINDER (4AT:N_ESP)FIG. 500C BRAKE MASTER CYLINDER (4AT:W_ESP)FIG. 50CA FRONT BRAKE PIPING (N_ESP)FIG. 50CB FRONT BRAKE PIPING (W_ESP)FIG. 50DA REAR BRAKE PIPING FIG. 510A ANTI LOCK BRAKE SYSTEM (N_ESP)FIG. 510B ANTI LOCK BRAKE SYSTEM (W_ESP)FIG. 520A FRONT WHEEL BRAKE FIG. 530A REAR WHEEL BRAKE FIG. 542A PARKING BRAKE

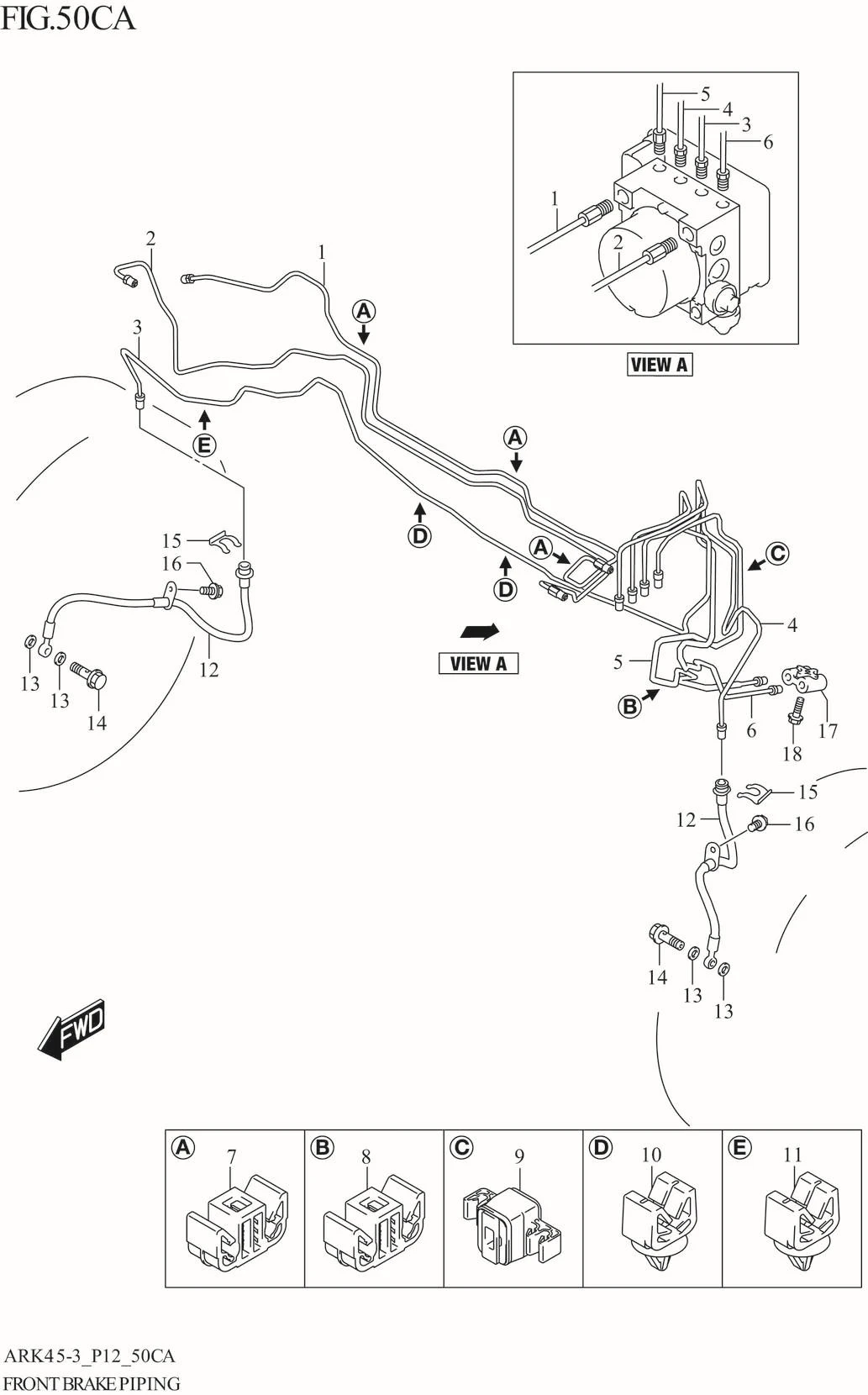

FIG. 50CA FRONT BRAKE PIPING (N_ESP)

FIG. 50CA FRONT BRAKE PIPING (N_ESP)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	51410-73R10-000	PIPE,MA PRI TO HU	1	Rp49.000
2	51420-73R10-000	PIPE,MA SEC TO HU	1	Rp58.500
3	51430-73R00-000	PIPE,HU TO FR BK HOSE,R	1	Rp54.500
4	51440-73R00-000	PIPE,HU TO FR BK HOSE,L	1	Rp54.500
5	51450-73R00-000	PIPE,HU TO JOINT,R	1	Rp46.500
6	51460-73R00-000	PIPE,HU TO JOINT,L	1	Rp39.000
7	51751-67L20-000 SUB: 51751B67L20N000	CLAMP,BK PIPE RR FL DOUBLE	3	Rp6.500
8	51751-67L20-000 SUB: 51751B67L20N000	CLAMP,BK PIPE RR FL DOUBLE	1	Rp6.500
9	51751M68P00-000	CLAMP,BK PIPE	1	Rp46.000
10	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE	2	Rp6.500
11	51761-77M40-000 SUB: 51761B77M40N000	CLAMP, BRAKE PIPE	1	Rp6.500
12	51550-68R01-000	HOSE,FR BRAKE FLEXIBLE	2	Rp214.500
13	51562-67L20-000 SUB: 51562B67L20N000	WASHER,FR DISC FLEXIBLE HOSE	4	Rp6.500
14	51561M55K00-000	UNION (10X1.0X23)	2	Rp8.500
15	09383M13004-000	E-RING	2	Rp7.000
16	01551-0816C-000	BOLT	2	Rp13.500
17	DISCONTINUE SUB: 51630B81K00N000	JOINT,BRAKE 4 WAY	1	-
18	02162M0625E-000	BOLT,BRAKE JOINT	1	Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
