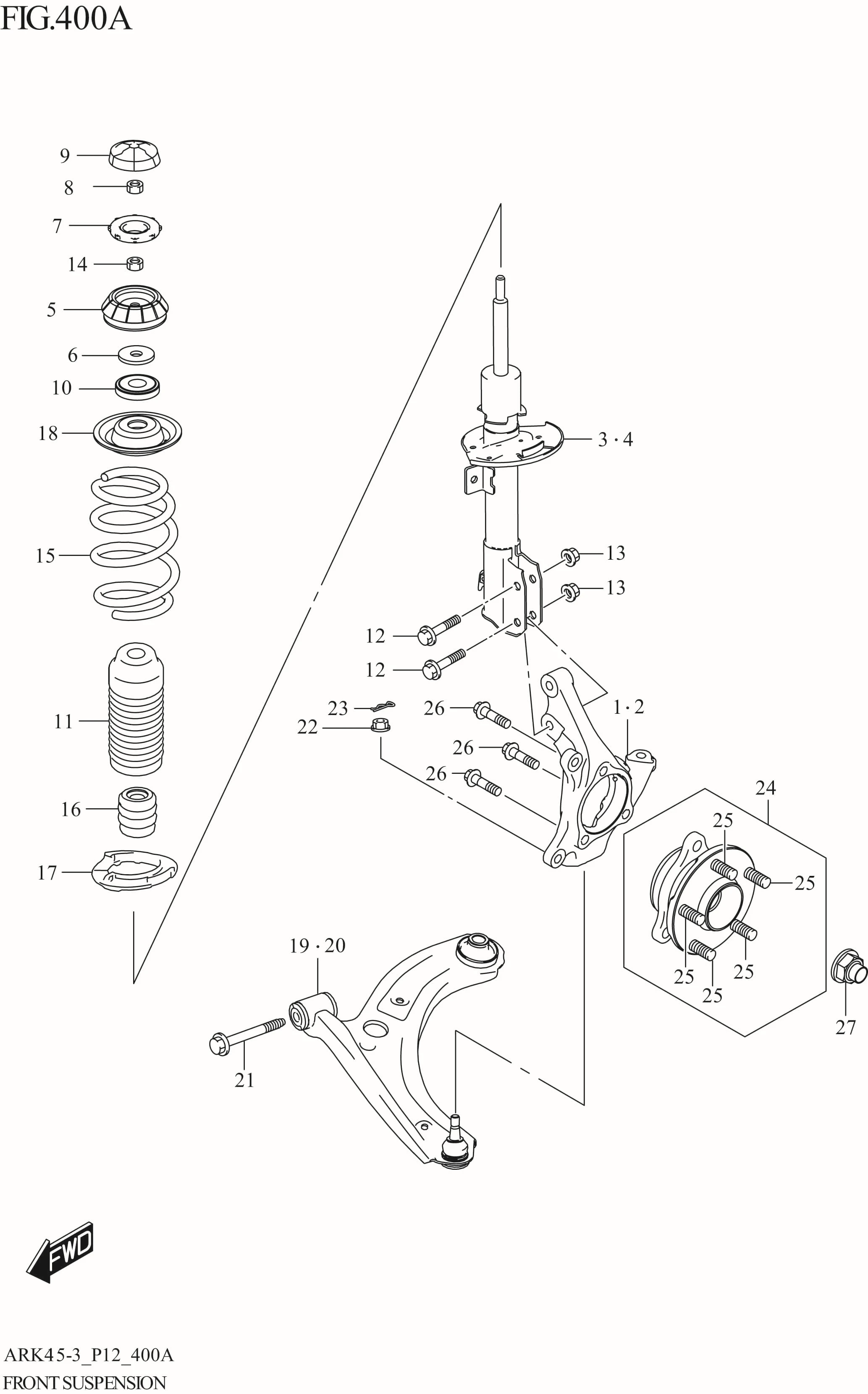

FIG. 400A FRONT SUSPENSION

FIG. 400A FRONT SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 45111-73R00-000 KNUCKLE,STRG,R 1 Rp555.000
2 45151-73R00-000 KNUCKLE,STRG,L 1 Rp555.000
3-1 41601-73R31-000
SUB: 41601-73R00-000		 STRUT ASSY,FR SPNSN,R 1 Rp1.107.500
4-1 41602-73R31-000
SUB: 41602-73R00-000		 STRUT ASSY,FR SPNSN,L 1 Rp1.107.500
5 41710-72R00-000 SUPPORT,FR STRUT 2 Rp175.500
6 41711-52R00-000 PLATE,STRUT BEARING 2 Rp149.500
7 41720M72R00-000 STOPPER,FR STRUT REBOUND 2 Rp59.000
8 41721-55R00-000 NUT,STRUT SUPPORT LWR 2 Rp69.000
9 41724-72R00-000 CAP,STRUT ROD 2 Rp141.000
10-1 41742M57K10-000 BEARING,FR STRUT 2 Rp81.000
11 41931-55R01-000 COVER,STRUT DUST 2 Rp200.500
12 09103-12118-000 BOLT (12X50) 4 Rp33.000
13 08316-1012A-000
SUB: 08316B1012AN000		 NUT (M12) 4 Rp6.500
14 08310-0012A-000 NUT 2 Rp17.500
15-1 41111-73R00-000 SPRING,FR COIL 2 Rp961.500
15-2 41111-73R10-000 SPRING,FR COIL 2 Rp961.500
16 42111M72R01-000
SUB: 42111-72R01-000		 STOPPER,FR BUMP 2 Rp137.000
17 41212-52R00-000 SEAT,FR SPRING LWR 2 Rp105.000
18 41230-55R00-000 SEAT,FR SPRING UPR 2 Rp101.000
19 45201-73R00-000 ARM ASSY,FR SPNSN,R 1 Rp864.500
20 45202-73R00-000 ARM ASSY,FR SPNSN,L 1 Rp864.500
21 45861-73R10-000 BOLT,SPNSN ARM FR BUSHING 2 Rp25.500
22 09159-12069-000 NUT (M12) 2 Rp23.000
23 09385-12002-000
SUB: 09385B12002N000		 PIN,SNAP 2 Rp4.500
24 43401-68R00-000 HUB ASSY,FR WHEEL 2 Rp813.000
25 09119-12012-000 .BOLT (12X38) 10 Rp14.500
26 43458-73R00-000 BOLT,WHEEL HUB HOUSING 6 Rp11.000
27 43459-68R00-000 NUT (M22) 2 Rp125.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
