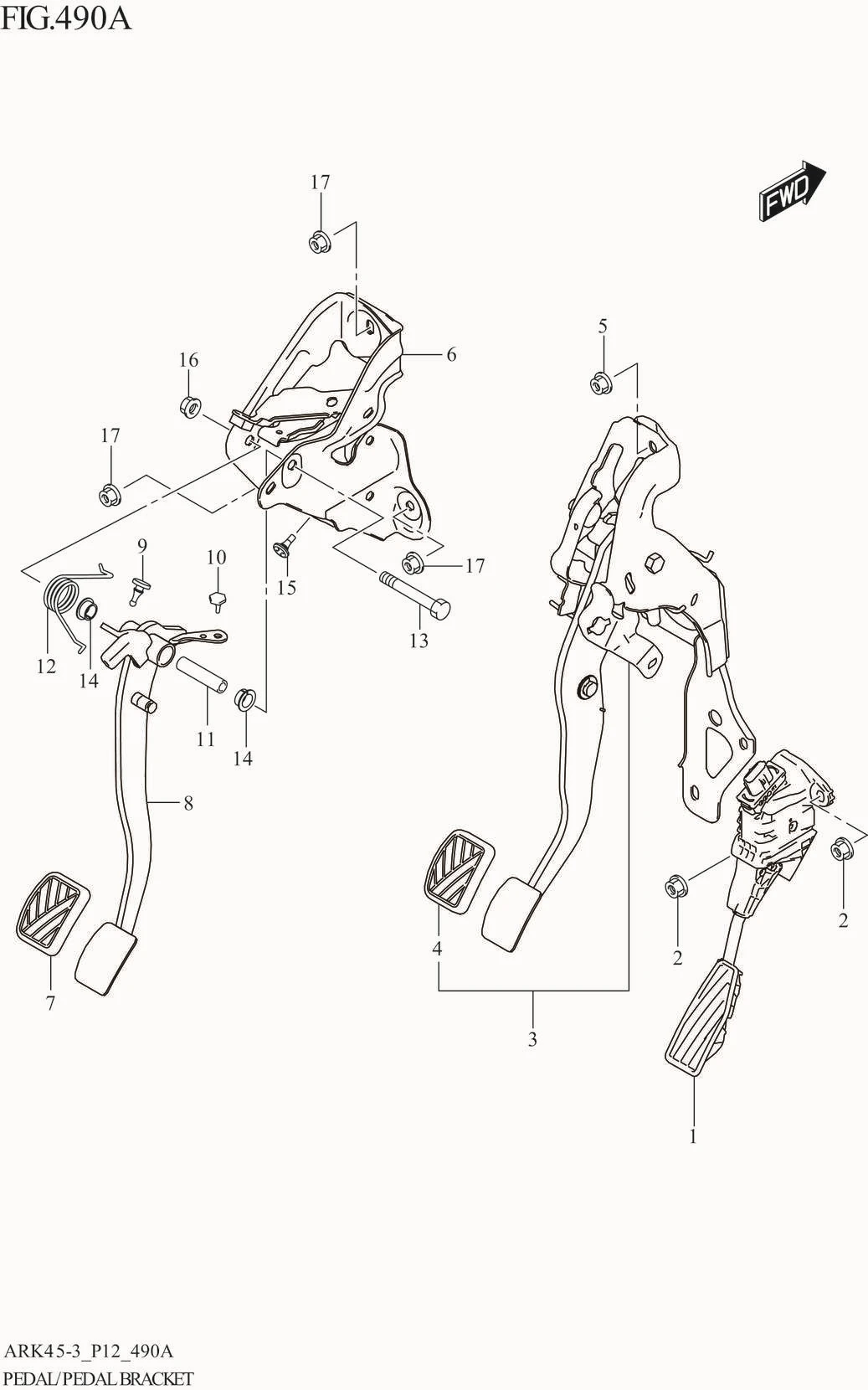

FIG. 490A PEDAL/PEDAL BRACKET (5MT)

FIG. 490A PEDAL/PEDAL BRACKET (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	49400-73R00-000	PEDAL ASSY,ACCELERATOR	1	Rp461.000
2	09159-08150-000	NUT (M8X1.25)	2	Rp16.500
3	49600-73R00-000	PEDAL ASSY,BRAKE	1	Rp465.500
4	49751M58J00-000	.PAD,PEDAL	1	Rp9.500
5	09159-08150-000	NUT (M8X1.25)	1	Rp16.500
6	49720-73R10-000	BRACKET,CLUTCH PEDAL	1	Rp332.500
7	49751M58J00-000	PAD,PEDAL	1	Rp9.500
8	49810-73R00-000	PEDAL,CLUTCH	1	Rp332.500
9	49825M74L00-000	CUSHION,CLUTCH PEDAL START SW	1	Rp6.500
10	49825M74L10-000	CUSHION,CLUTCH PEDAL START SW	1	Rp9.000
11	49871M80F00-000	SPACER,PEDAL SHAFT	1	Rp8.500
12	49891M68P00-000	SPRING,CLUTCH PEDAL	1	Rp9.500
13	09100-10324-000	BOLT (10X65)	1	Rp51.500
14	09306M13004-000	BUSH (13X21X8)	2	Rp11.500
15	09321M06026-000	CUSHION	1	Rp4.500
16	08316-1010A-000	NUT	1	Rp3.500
17	09159-08150-000	NUT (M8X1.25)	3	Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
