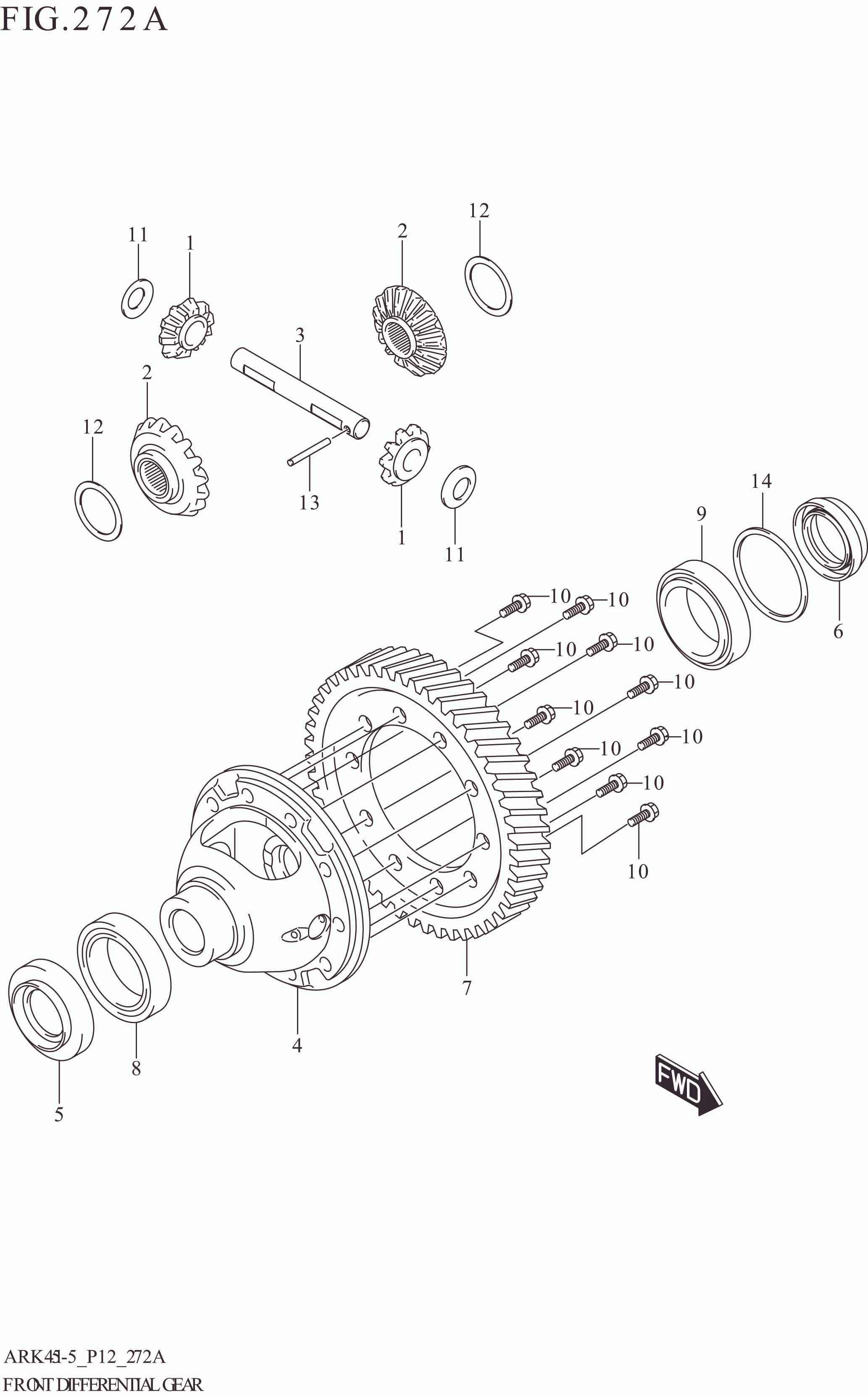

| 1 |
27331-73RA0-000 |
PINION,DIFFERENTIAL |
2 |
Rp387.500 |
| |
| 2 |
27341-73RA0-000 |
GEAR,DIFFERENTIAL SIDE |
2 |
Rp537.500 |
| |
| 3 |
27351M60MA0-000 |
SHAFT,DIFF SIDE PINION |
1 |
Rp104.500 |
| |
| 4 |
27411M60MA0-000 |
CASE, FRONT DIFF |
1 |
Rp1.447.000 |
| |
| 5 |
27431-77M00-000 |
SEAL,DIFF SIDE OIL,R |
1 |
Rp51.000 |
| |
| 6 |
27432-77M00-000 |
SEAL,DIFF SIDE OIL |
1 |
Rp30.000 |
| |
| 7 |
27511-73RA0-000 |
GEAR,FINAL |
1 |
Rp682.000 |
| |
| 8 |
27521-73RA0-000 |
BEARING ASSY,DIFF SIDE,R |
1 |
Rp182.500 |
| |
| 9 |
27524-73RA0-000 |
BEARING ASSY,DIFF SIDE,L |
1 |
Rp182.500 |
| |
| 10 |
09103-10189-000 |
BOLT (10X23) |
10 |
Rp29.000 |
| |
| 11 |
09164-17011-000 |
WASHER (17.3X34X1) |
2 |
Rp29.000 |
| |
| 12-1 |
09160-38003-000 |
WASHER (38X52X0.85) |
2 |
Rp42.500 |
| |
| 12-8 |
09160-38010-000 |
WASHER (38X52X1.20) |
2 |
Rp42.500 |
| |
| 12-7 |
09160-38009-000 |
WASHER (38X52X1.15) |
2 |
Rp42.500 |
| |
| 12-6 |
09160-38008-000 |
WASHER (38X52X1.10) |
2 |
Rp42.500 |
| |
| 12-5 |
09160-38007-000 |
WASHER (38X52X1.05) |
2 |
Rp42.500 |
| |
| 12-4 |
09160-38006-000 |
WASHER (38X52X1.00) |
2 |
Rp42.500 |
| |
| 12-3 |
09160-38005-000 |
WASHER (38X52X0.95) |
2 |
Rp42.500 |
| |
| 12-2 |
09160-38004-000 |
WASHER (38X52X0.90) |
2 |
Rp42.500 |
| |
| 13 |
09205M05007-000 |
PIN,SPRING (5X36) |
1 |
Rp5.000 |
| |
| 14-10 |
29541-79JA0-136 |
SHIM,DIFF SIDE BRG (T:1.36) |
1 |
Rp64.000 |
| |
| 14-18 |
29541-79JA0-168 |
SHIM,DIFF SIDE BRG (T:1.68) |
1 |
Rp64.000 |
| |
| 14-17 |
DISCONTINUE
SUB: 29541-79JA0-164 |
SHIM,DIFF SIDE BRG (T:1.64) |
1 |
- |
| |
| 14-16 |
29541-79JA0-160 |
SHIM,DIFF SIDE BRG (T:1.60) |
1 |
Rp64.000 |
| |
| 14-15 |
DISCONTINUE
SUB: 29541-79JA0-156 |
SHIM,DIFF SIDE BRG (T:1.56) |
1 |
- |
| |
| 14-14 |
DISCONTINUE
SUB: 29541-79JA0-152 |
SHIM,DIFF SIDE BRG (T:1.52) |
1 |
- |
| |
| 14-13 |
DISCONTINUE
SUB: 29541-79JA0-148 |
SHIM,DIFF SIDE BRG (T:1.48) |
1 |
- |
| |
| 14-12 |
DISCONTINUE
SUB: 29541-79JA0-144 |
SHIM,DIFF SIDE BRG (T:1.44) |
1 |
- |
| |
| 14-11 |
29541-79JA0-140 |
SHIM,DIFF SIDE BRG (T:1.40) |
1 |
Rp64.000 |
| |
| 14-1 |
29541-79JA0-100 |
SHIM,DIFF SIDE BRG (T:1.00) |
1 |
Rp60.000 |
| |
| 14-9 |
29541-79JA0-132 |
SHIM,DIFF SIDE BRG (T:1.32) |
1 |
Rp64.000 |
| |
| 14-8 |
DISCONTINUE
SUB: 29541-79JA0-128 |
SHIM,DIFF SIDE BRG (T:1.28) |
1 |
- |
| |
| 14-7 |
DISCONTINUE
SUB: 29541-79JA0-124 |
SHIM,DIFF SIDE BRG (T:1.24) |
1 |
- |
| |
| 14-6 |
DISCONTINUE
SUB: 29541-79JA0-120 |
SHIM,DIFF SIDE BRG (T:1.20) |
1 |
- |
| |
| 14-5 |
29541-79JA0-116 |
SHIM,DIFF SIDE BRG (T:1.16) |
1 |
Rp64.000 |
| |
| 14-4 |
29541-79JA0-112 |
SHIM,DIFF SIDE BRG (T:1.12) |
1 |
Rp62.000 |
| |
| 14-3 |
29541-79JA0-108 |
SHIM,DIFF SIDE BRG (T:1.08) |
1 |
Rp64.000 |
| |
| 14-2 |
DISCONTINUE
SUB: 29541-79JA0-104 |
SHIM,DIFF SIDE BRG (T:1.04) |
1 |
- |
| |
