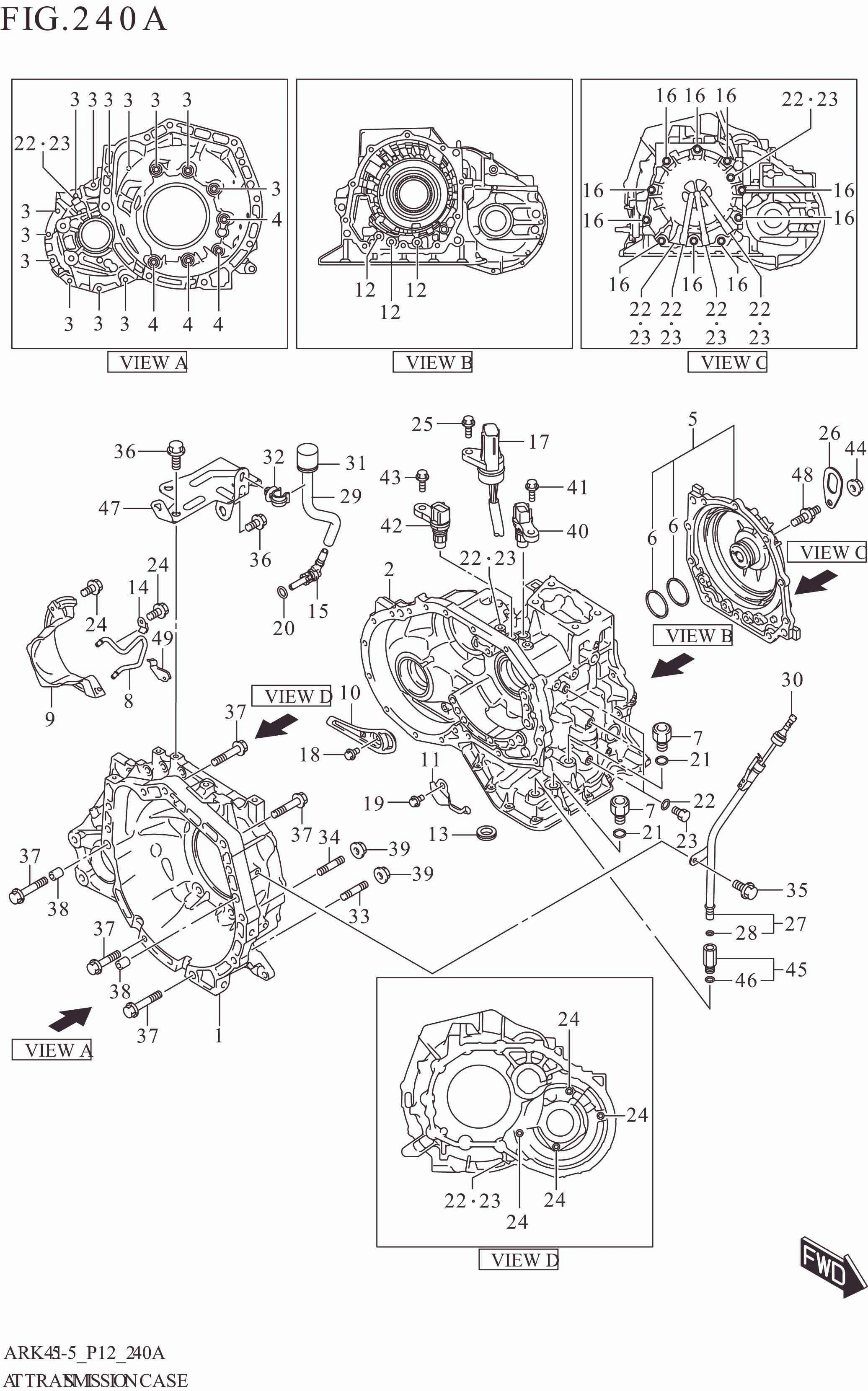

240A AT TRANSMISSION CASE (4AT)

240A AT TRANSMISSION CASE (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 24710-68P10-000 HOUSING,TORQUE CONVERTER 1 Rp9.148.000
2 24720-77M10-000 CASE,T/M 1 Rp19.199.500
3 24725-79C10-000 BOLT,T/C HOUSING NO.1 13 Rp26.500
4 24729-79C10-000 BOLT,HOUSING NO.2 4 Rp32.000
5 24730-77M10-000 COVER,T/M RR 1 Rp4.058.500
6 24732-70H10-000 .RING,RR COVER SEAL 2 Rp69.500
7 24743-77M10-000 UNION,OIL PIPE 2 Rp289.500
8 24811-77MT0-000 TUBE SET, LUB 1 Rp208.000
9 24813-77M10-000 PLATE,OIL RESERVOIR,R 1 Rp290.500
10 24814-77M10-000 PLATE,OIL RESERVOIR,L 1 Rp55.000
11 24815-77M10-000 PLATE,OIL GUIDE 1 Rp118.500
12 29737-57B00-000 O-RING 3 Rp71.000
13 24818-68J10-000 GASKET,GOVERNOR APPLY NO.1 1 Rp71.500
14 24725-59J10-000 CLAMP,DIFF BRG LUB PIPE 1 Rp40.000
15 24821-77M10-000 UNION,BREATHER 1 Rp62.500
16 24884-79C10-000 BOLT,T/M RR COVER 9 Rp36.000
17 24892-77M10-000 HARNESS,SOLENOID WIRE 1 Rp1.466.500
18 26449-65G10-000 BOLT 1 Rp27.500
19 26449-65G10-000 BOLT 1 Rp27.500
20 27992-79C10-000 O-RING,BREATHER PLUG 1 Rp24.000
21 29737-57B00-000 O-RING 2 Rp71.000
22 29738-57B00-000 O-RING 11 Rp47.500
23 DISCONTINUE
SUB: 29849-57B00-000		 PLUG,T/M CASE 11 -
24 29970-57B00-000 BOLT,SOL WIRE HARN CLAMP 4 Rp83.000
25 29989-57B00-000 BOLT 1 Rp69.500
26 24855-77M10-000 HOOK, TRANSMISSION 1 Rp32.000
27 24770-77M11-000 TUBE ASSY,T/M OIL FILLER 1 Rp333.500
28 09280-09008-000 .O RING (D:2.1,ID:8.8) 1 Rp20.000
29 24825-77M10-000 HOSE,T/M BREATHER 1 Rp157.000
30 24830M68P11-000 GAUGE ASSY,T/M OIL LEVEL 1 Rp42.000
31 27991-77M10-000 PLUG,BREATHER HOSE 1 Rp47.500
32 09403-11320-000 CLAMP 1 Rp21.500
33 01421M10353-000 BOLT,STUD 1 Rp19.000
34 01421-1045A-000 BOLT,STUD 1 Rp29.500
35 01550-0612A-000 BOLT (6X12) 1 Rp3.500
36 01550-0812C-000 BOLT (8X12) 2 Rp21.000
37 01550-1050A-000 BOLT (10X50) 5 Rp6.000
38 04211M13189-000 PIN (13X14) 2 Rp9.000
39 08316-1010A-000 NUT 2 Rp3.500
40 26130-77M10-000 SENSOR,SPEED OUTPUT 1 Rp1.429.500
41 29989-57B00-000 BOLT 1 Rp69.500
42 26143-77M10-000 SENSOR,SPEED INPUT 1 Rp1.473.000
43 29989-57B00-000 BOLT 1 Rp69.500
44 08316-1008A-000 NUT 1 Rp3.500
45 24780-77M10-000 JOINT ASSY, FILLER TUBE 1 Rp73.000
46 24781-77M10-000 .O RING, FILLER TUBE JOINT 1 Rp7.500
47 26598-73R10-000 BRACKET,HARNESS 1 Rp35.500
48 24883-77M10-000 BOLT,T/M RR COVER STUD 1 Rp161.000
49 24725-60M10-000 CLAMP, LUB TUBE 1 Rp56.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
