All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 202A MT CLUTCH (5MT)204A MT TRANSMISSION GEAR (5MT)206A MT TRANSMISSION CASE (5MT)208A MT GEAR SHIFT FORK (5MT)210A AT TRANSMISSION ASSY (4AT:GL)210B AT TRANSMISSION ASSY (4AT:(GX,SS))214A AT OIL PUMP (4AT)216A AT INPUT SHAFT (4AT)220A AT PLANETARY GEAR (4AT)226A AT REDUCTION GEAR (4AT)228A AT FORWARD CLUTCH (4AT)234A AT 1ST/REVERSE BRAKE (4AT)237A AT OVER DRIVE BRAKE (4AT)240A AT TRANSMISSION CASE (4AT)242A AT OIL PAN (4AT)244A AT VALVE (4AT)246A AT PARKING LOCK (4AT)248A AT OIL HOSE (4AT)260A GEAR SHIFT CONTROL (5MT:(GA,GL))260B GEAR SHIFT CONTROL (5MT:(GX,SS))260C GEAR SHIFT CONTROL (4AT)264A SELECT LEVER (4AT:GL)264B SELECT LEVER (4AT:(GX,SS))266A INTERMEDIATE SHAFT (5MT)266B INTERMEDIATE SHAFT (4AT)272A FRONT DIFFERENTIAL GEAR (5MT)272B FRONT DIFFERENTIAL GEAR (4AT)

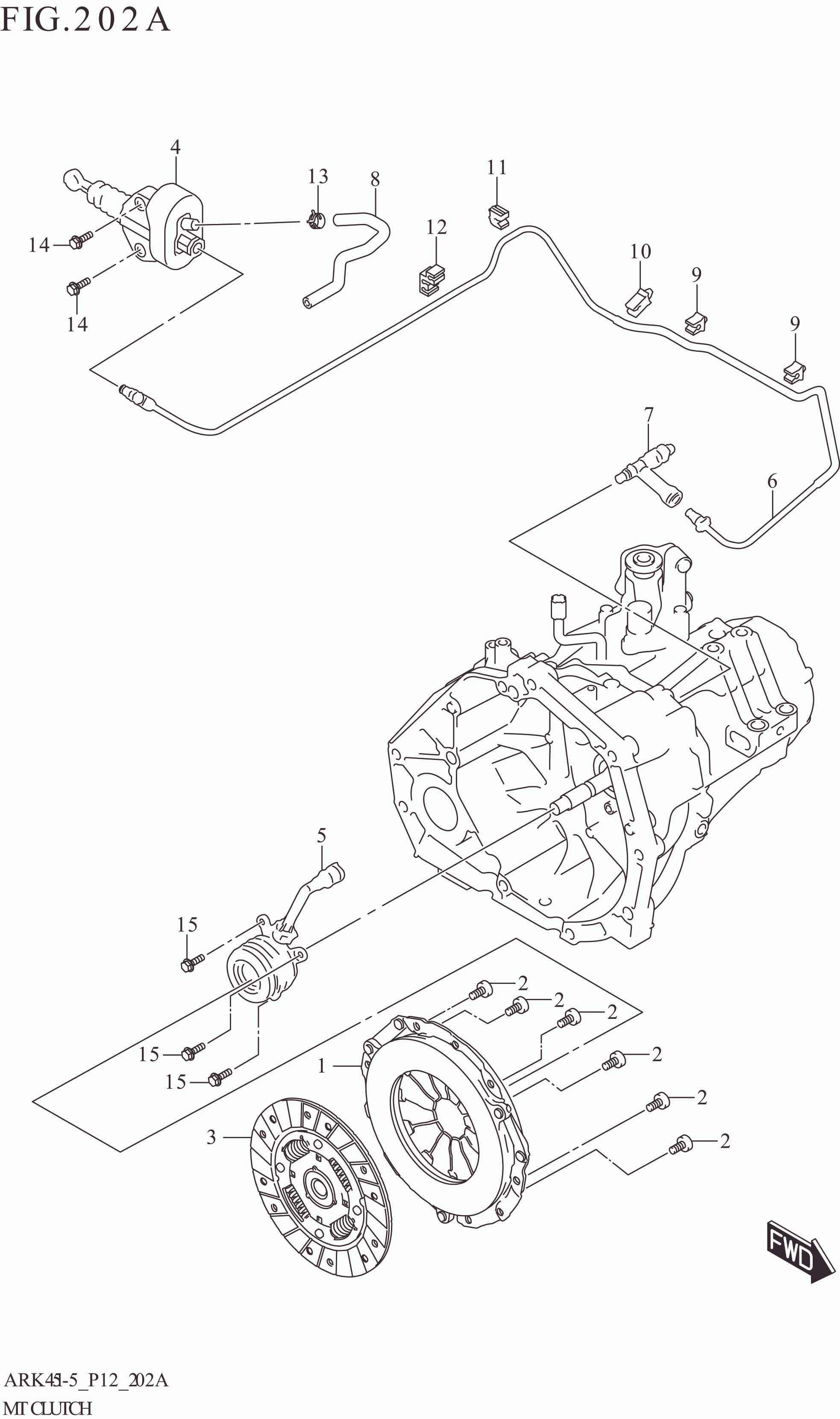

202A MT CLUTCH (5MT)

202A MT CLUTCH (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 22100-73R00-000 COVER ASSY,CLUTCH 1 Rp486.500
2 01550-0816A-000 BOLT (8X16) 6 Rp6.000
3 22400-73R00-000 DISC,CLUTCH 1 Rp725.500
4 23810-73R00-000 CYLINDER ASSY,CLUTCH MASTER 1 Rp265.000
5 23820-73R01-000 CYLINDER ASSY,CLUTCH OPERATING 1 Rp515.000
6 23830-73R20-000 PIPE,CLUTCH OIL RH 1 Rp171.500
7 23856-73R00-000 JOINT,CLUTCH OIL 1 Rp124.000
8 23881-73R20-000 HOSE,CLUTCH RESERVOIR RH 1 Rp10.000
9 27978-55R00-000 CLAMP,CLUTCH OIL PIPE NO.2 2 Rp29.000
10 27978-68P00-000 CLAMP,CLUTCH OIL PIPE NO.1 1 Rp29.000
11 27978-68P20-000 CLAMP,CLUTCH OIL PIPE NO.3 1 Rp30.500
12 27978M72R40-000 CLAMP,CLUTCH PIPE 1 Rp5.500
13 09401-12405-000 CLIP (ID:12.5) 1 Rp16.500
14 01550-0820A-000 BOLT (8X20) 2 Rp5.500
15 01550-0620A-000 BOLT (6X20) 3 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
