All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 202A MT CLUTCH (5MT)204A MT TRANSMISSION GEAR (5MT)206A MT TRANSMISSION CASE (5MT)208A MT GEAR SHIFT FORK (5MT)210A AT TRANSMISSION ASSY (4AT:GL)210B AT TRANSMISSION ASSY (4AT:(GX,SS))214A AT OIL PUMP (4AT)216A AT INPUT SHAFT (4AT)220A AT PLANETARY GEAR (4AT)226A AT REDUCTION GEAR (4AT)228A AT FORWARD CLUTCH (4AT)234A AT 1ST/REVERSE BRAKE (4AT)237A AT OVER DRIVE BRAKE (4AT)240A AT TRANSMISSION CASE (4AT)242A AT OIL PAN (4AT)244A AT VALVE (4AT)246A AT PARKING LOCK (4AT)248A AT OIL HOSE (4AT)260A GEAR SHIFT CONTROL (5MT:(GA,GL))260B GEAR SHIFT CONTROL (5MT:(GX,SS))260C GEAR SHIFT CONTROL (4AT)264A SELECT LEVER (4AT:GL)264B SELECT LEVER (4AT:(GX,SS))266A INTERMEDIATE SHAFT (5MT)266B INTERMEDIATE SHAFT (4AT)272A FRONT DIFFERENTIAL GEAR (5MT)272B FRONT DIFFERENTIAL GEAR (4AT)

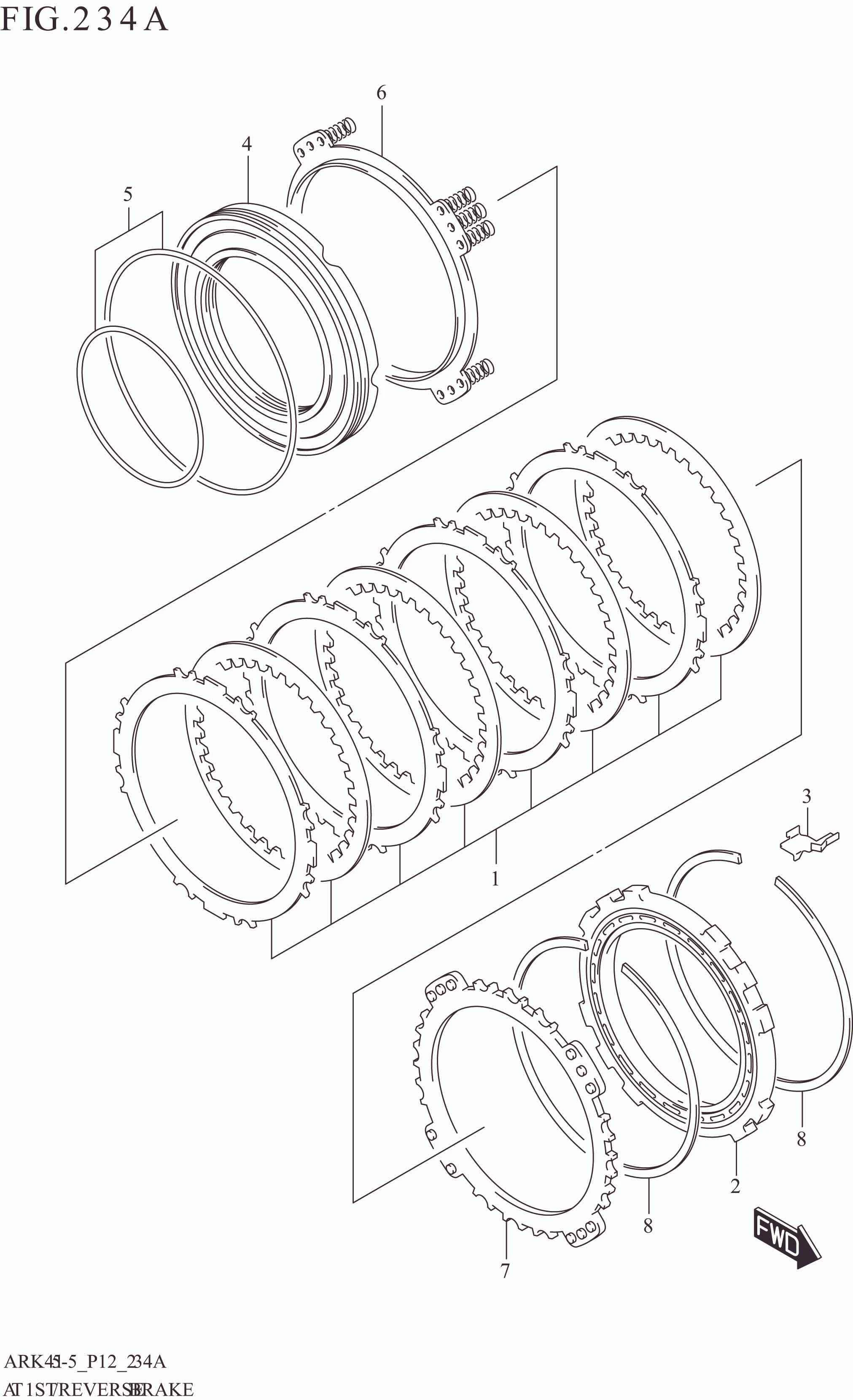

234A AT 1ST/REVERSE BRAKE (4AT)

234A AT 1ST/REVERSE BRAKE (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 25842-77MT0-000 DISC SET,1ST&REV BRAKE 1 Rp611.000
2 26821-77M10-000 CLUTCH ASSY,ONE WAY 1ST BK 1 Rp2.502.000
3 26822-79C10-000 RETAINER,OUTER RACE 1 Rp46.000
4 26823-79C10-000 PISTON,1ST&REVERSE BRAKE 1 Rp195.500
5 26824-77MT0-000 O-RING SET,1ST&REV BRAKE 1 Rp79.500
6 26830-77M10-000 SPRING ASSY,1ST&REV BK RTN 1 Rp174.000
7 26841-79C10-000 PLATE,1ST&REV BK RETUN 1 Rp197.500
8 26844-79C10-000 RING,1ST&REV BK PLATE 2 Rp51.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
