All New Ertiga Hybrid

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL 202A MT CLUTCH (5MT)204A MT TRANSMISSION GEAR (5MT)206A MT TRANSMISSION CASE (5MT)208A MT GEAR SHIFT FORK (5MT)210A AT TRANSMISSION ASSY (4AT:GL)210B AT TRANSMISSION ASSY (4AT:(GX,SS))214A AT OIL PUMP (4AT)216A AT INPUT SHAFT (4AT)220A AT PLANETARY GEAR (4AT)226A AT REDUCTION GEAR (4AT)228A AT FORWARD CLUTCH (4AT)234A AT 1ST/REVERSE BRAKE (4AT)237A AT OVER DRIVE BRAKE (4AT)240A AT TRANSMISSION CASE (4AT)242A AT OIL PAN (4AT)244A AT VALVE (4AT)246A AT PARKING LOCK (4AT)248A AT OIL HOSE (4AT)260A GEAR SHIFT CONTROL (5MT:(GA,GL))260B GEAR SHIFT CONTROL (5MT:(GX,SS))260C GEAR SHIFT CONTROL (4AT)264A SELECT LEVER (4AT:GL)264B SELECT LEVER (4AT:(GX,SS))266A INTERMEDIATE SHAFT (5MT)266B INTERMEDIATE SHAFT (4AT)272A FRONT DIFFERENTIAL GEAR (5MT)272B FRONT DIFFERENTIAL GEAR (4AT)

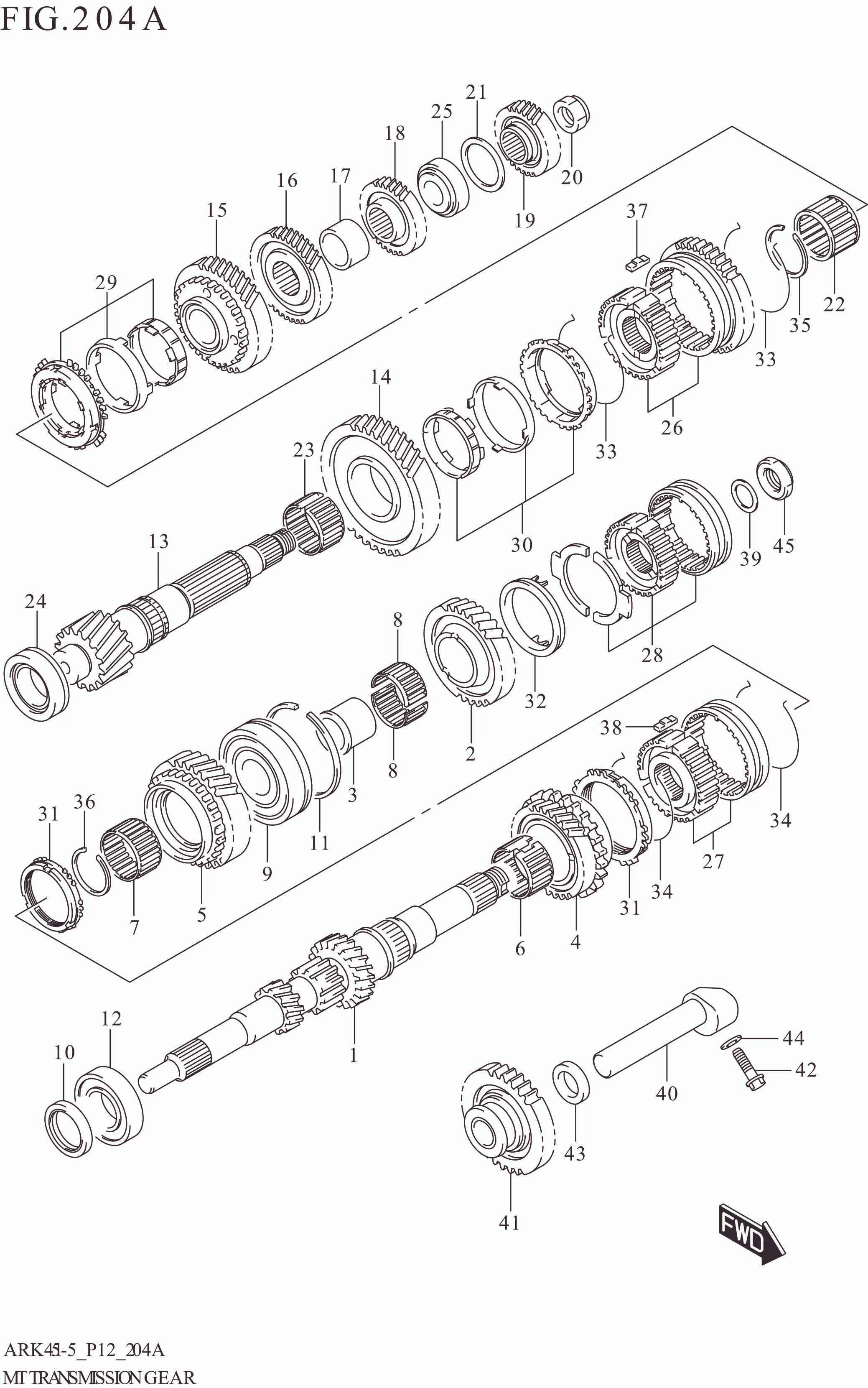

204A MT TRANSMISSION GEAR (5MT)

204A MT TRANSMISSION GEAR (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 24111-73RA0-000 SHAFT, TRANSMISSION INPUT 1 Rp1.125.000
2 24114-59R00-000 GEAR, INPUT SHAFT 5TH 1 Rp961.500
3 24119M79MB0-000 SPACER,INPUT SHAFT 5TH GEAR 1 Rp51.500
4 24230-77MA0-000 GEAR, INPUT SHAFT 3RD 1 Rp1.258.500
5 24240-77MA0-000 GEAR, INPUT SHAFT 4TH 1 Rp1.430.500
6 24283-77M00-000 BEARING,3RD GEAR NEEDLE (35X40X22.8) 1 Rp24.500
7 24284M86J00-000 BEARING, 4TH GEAR NEEDLE 1 Rp47.500
8 DISCONTINUE
SUB: 24285-73RA0-000		 BEARING,5TH GEAR NEEDLE 2 -
9 24165-77M00-000 BEARING,INPUT SFT,L 1 Rp220.000
10 24151-77M00-000 SEAL,INPUT SHAFT OIL (25X38X6) 1 Rp17.500
11 09380-72002-000 RING,SNAP (68.1X1.65) 1 Rp42.500
12 24155-77M00-000 BEARING,INPUT SFT,R 1 Rp128.500
13 24131-73RA0-000 SHAFT,TRANSMISSION COUNTER 1 Rp975.000
14 24311-59R00-000 GEAR, COUNTERSHAFT 1ST 1 Rp1.021.500
15 24321-77MA0-000 GEAR, COUNTERSHAFT 2ND 1 Rp1.220.000
16 24331-77MA0-000 GEAR, COUNTERSHAFT 3RD 1 Rp1.083.000
17 24336-77M00-000 SPACER,3RD&4TH GEAR 1 Rp36.500
18 24341-77MA0-000 GEAR, COUNTERSHAFT 4TH 1 Rp1.060.000
19 24351-59R00-000 GEAR, COUNTERSHAFT 5TH 1 Rp592.500
20 09159-20009-000 NUT (M20) 1 Rp74.000
21-12 09181-41015-000 SHIM (41X52X1.20) 1 Rp44.500
21-11 09181-41014-000 SHIM (41X52X1.15) 1 Rp44.000
21-10 09181-41013-000 SHIM (41X52X1.10) 1 Rp44.000
21-9 09181-41012-000 SHIM (41X52X1.05) 1 Rp44.000
21-8 09181-41011-000 SHIM (41X52X1.00) 1 Rp47.500
21-7 09181-41010-000 SHIM (41X52X0.95) 1 Rp44.000
21-5 09181-41008-000 SHIM (41X52X0.85) 1 Rp44.000
21-4 09181-41007-000 SHIM (41X52X0.80) 1 Rp47.500
21-3 09181-41006-000 SHIM (41X52X0.75) 1 Rp44.000
21-2 09181-41005-000 SHIM (41X52X0.70) 1 Rp44.000
21-1 09181-41004-000 SHIM (41X52X0.65) 1 Rp44.000
21-6 09181-41009-000 SHIM (41X52X0.90) 1 Rp44.000
22 24382-77M00-000 BEARING,2ND GEAR NEEDLE (35X50X28) 1 Rp33.000
23 24381-77M00-000 BEARING,1ST GEAR NEEDLE (37X42X27.8) 1 Rp29.500
24 24175-77M00-000 BEARING ASSY,COUNTERSHAFT,R 1 Rp205.500
25 24185-77M00-000 BEARING ASSY,COUNTERSHAFT,L 1 Rp111.000
26 24400-73RA0-000 HUB ASSY,LOW SPEED SYNC 1 Rp704.500
27 24410-77MA0-000 HUB ASSY,HIGH SPEED SYNC 1 Rp1.032.000
28 24420-79PB0-000 HUB ASSY,5TH SPEED SYNC 1 Rp916.000
29 24430-73RB0-000 RING ASSY,LOW GEAR SYNC 1 Rp218.000
30 24430-73RB0-000 RING ASSY,LOW GEAR SYNC 1 Rp218.000
31 24432-77M00-000 RING,SYNC HIGH SPEED 2 Rp71.500
32 24435-77M00-000 RING,5TH SPEED SYNC 1 Rp149.500
33 24441-77MA0-000 SPRING,LOW SPEED SYNC 2 Rp7.000
34 24442-77MA0-000 SPRING,HIGH SPEED SYNC 2 Rp7.000
35 24451-70C00-000 CIRCLIP,LOW SPEED SYNC HUB 1 Rp31.000
36 24452M86J00-000 CIRCLIP, HIGH SPEED SYNC HUB 1 Rp10.000
37 24471-70C00-000 KEY,LOW SPEED SYNCHRONIZER 3 Rp30.000
38 24472-60B00-000 KEY,SYNCHRONIZER 3 Rp25.000
39 DISCONTINUE
SUB: 09160-21005-000		 WASHER,21X30X1 (21X30X1) 1 -
40 24551-77M00-000 SHAFT,TRANSAXLE REVERSE GEAR 1 Rp79.500
41 24560-70C60-000 GEAR,REVERSE IDLER 1 Rp924.000
42 24565-60B00-000 BOLT,REVERSE SHAFT 1 Rp21.500
43 09161-18004-000 WASHER (18X27X5.5) 1 Rp34.500
44 09168M08030-000 GASKET (8.2X17X1) 1 Rp6.500
45 09159-20009-000 NUT (M20) 1 Rp74.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
