Preview Engine Transmission Electrical Suspension Body

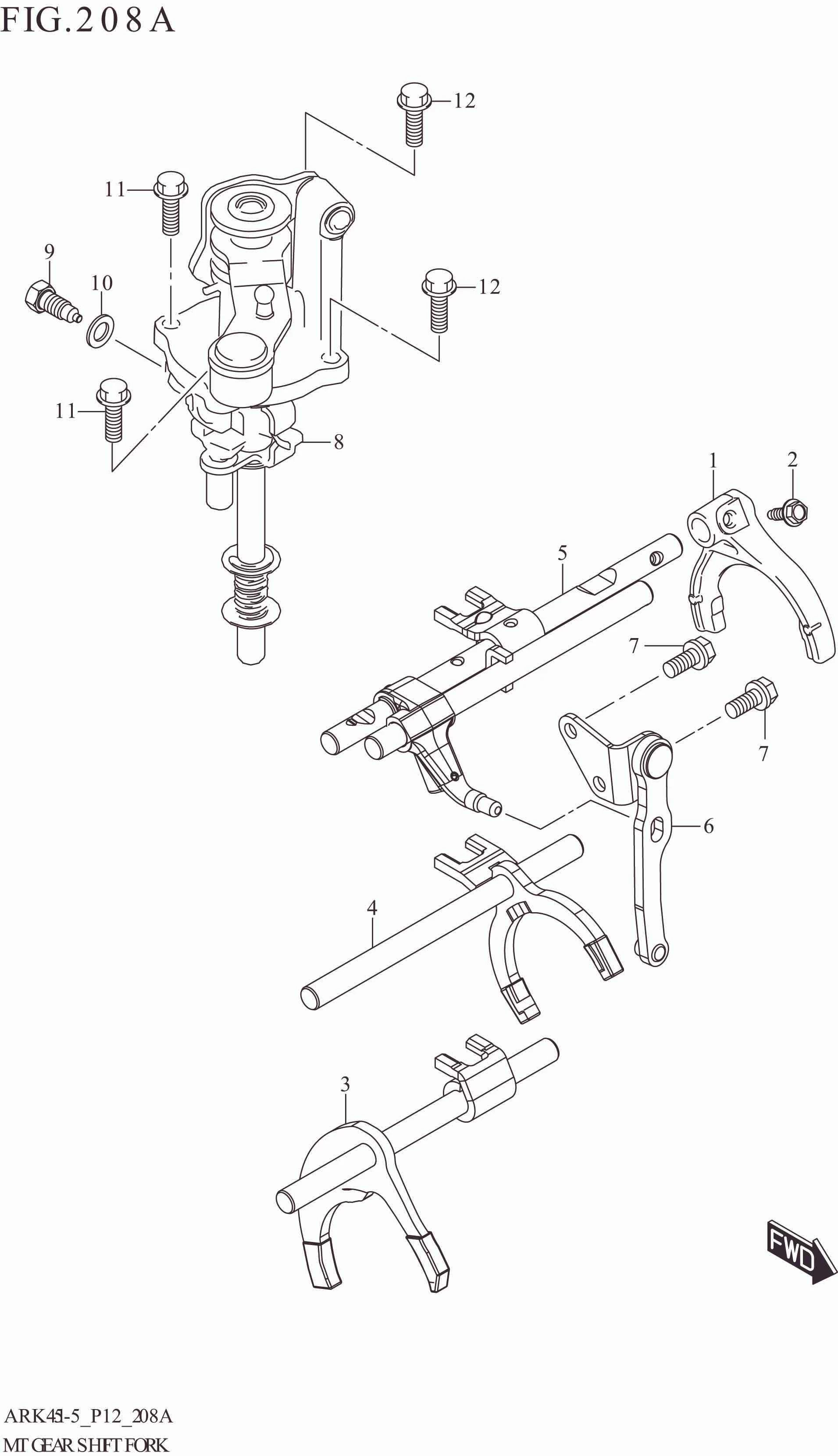

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	25231-73RA0-000	FORK,5TH GEAR SHIFT	1	Rp73.500
2	25291-70C00-000	BOLT,LOW&HIGH SPEED FORK	1	Rp19.500
3	25401-73RA0-000	SHAFT,LOW SPEED GR SHF	1	Rp172.000
4	25402-73RA0-000	SHAFT,HIGH SPEED GR SHF	1	Rp146.000
5	25403-71L01-000	SHAFT,5TH&REV GR SHF	1	Rp1.404.000
6	25460-70C00-000	LEVER,REV GR SHF	1	Rp200.000
7	01570-0820B-000	BOLT	2	Rp31.000
8-1	25010M72R00-000	SHAFT ASSY, GEAR SHF & SELECT	1	Rp1.217.000	(GA,GL)
8-2	25010M72R20-000	SHAFT ASSY,GEAR SHIFT & SELECT	1	Rp1.227.000	(GX,SS)
9	25321-74PE0-000	BOLT,GEAR SHF INTERLOCK	1	Rp47.000
10	08322-0110B-000	WASHER	1	Rp4.500
11	01550-0825A-000	BOLT (8X25)	2	Rp3.500
12	09103-08419-000	BOLT (8X25)	2	Rp14.000
