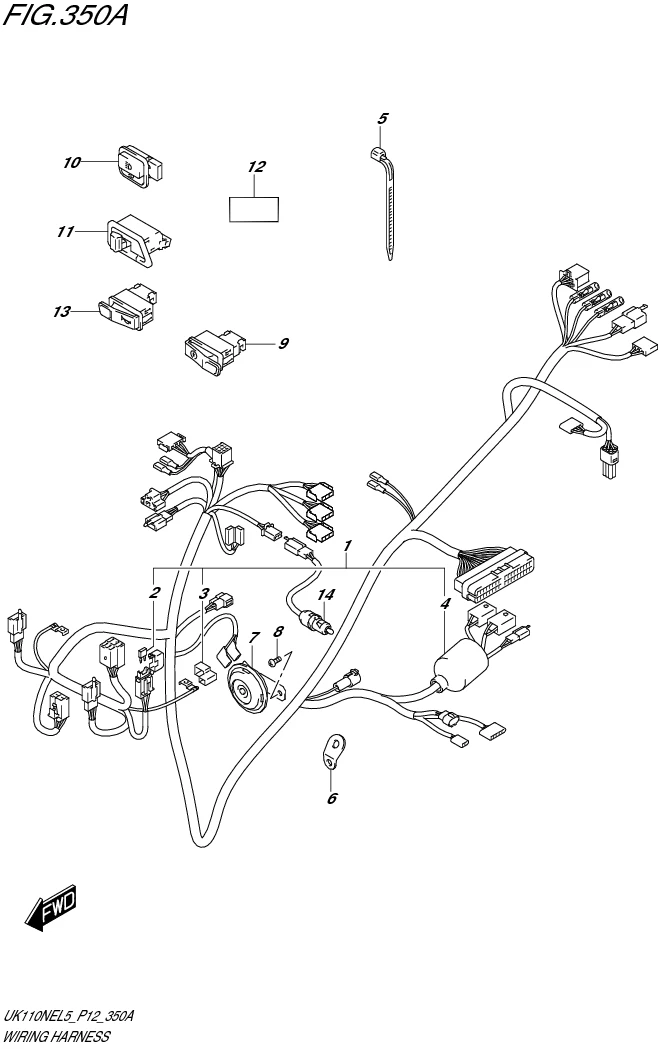

FIG. 350A WIRING HARNESS

FIG. 350A WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36610-40J02-000
SUB: 36610-40J00-000		 HARNESS, WIRING 1 Rp1.085.500
2 09481-10501-000 .FUSE (10A) 2 Rp12.000
3 33624-31C10-000 .CAP, BATTERY PLUS TERMINAL 1 Rp9.500
4 36618-09J10-000 .BOOT, WIRING HARNESS 1 Rp7.500
5 09407-19401-000 CLAMP, WIRING HARNESS 1 Rp31.500
6 36672-40J00-000 BRACKET, LEAD WIRE 1 Rp5.500
7 38500-25G10-000 HORN ASSY 1 Rp55.000
8 02142-0610A-000 SCREW 1 Rp3.500
9 37310-40J02-000
SUB: 37310-40J00-000		 SWITCH ASSY, STARTER 1 Rp22.500
10 37420-40J01-000
SUB: 37420-40J00-000		 SWITCH ASSY, DIMMER 1 Rp15.000
11 37510-40J01-000
SUB: 37510-40J00-000		 SWITCH ASSY, TURNSIGNAL 1 Rp23.000
12 37511-40J00-000 PROTECTOR,SWITCH 1 Rp4.000
13 37520-40J03-000
SUB: 37520-40J00-000		 SWITCH ASSY, HORN 1 Rp23.000
14 57470-10J40-000
SUB: 57470-10J10-000		 SWITCH ASSY, BRAKE 1 Rp46.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
