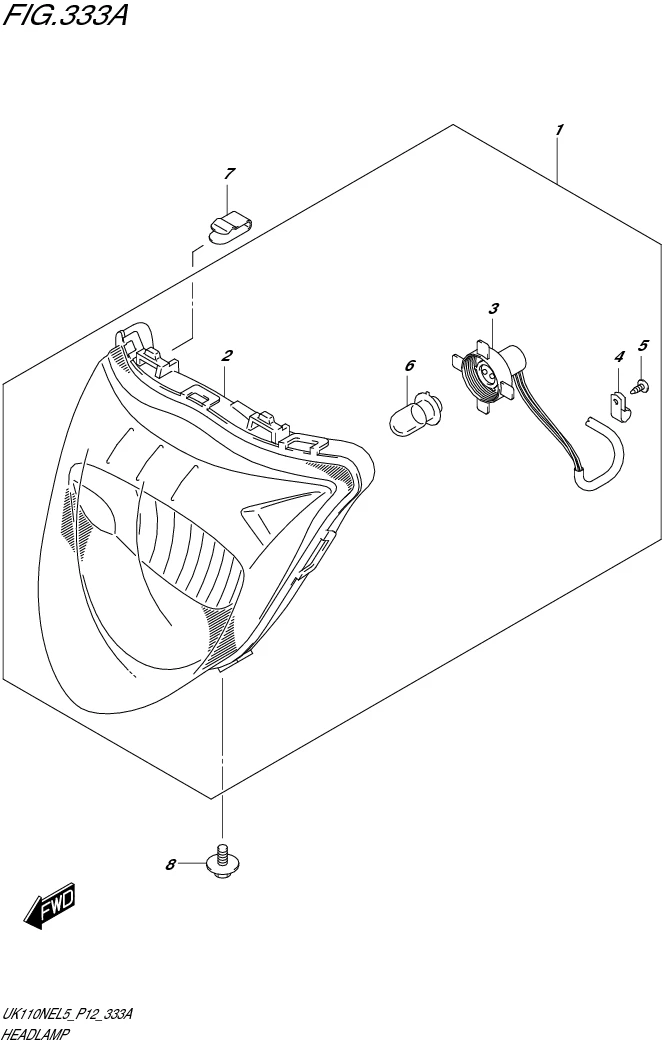

FIG. 333A HEADLAMP

FIG. 333A HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-40J00-000 HEADLAMP ASSY 1 Rp209.500
2 35121-40J00-000 .HEADLAMP UNIT 1 Rp139.500
3 35171-40J00-000 .SOCKET 1 Rp32.000
4 35189-40J00-000 .CLIP 1 Rp9.000
5 35187-40J00-000 .SCREW 1 Rp6.000
6 09471-12213-000
SUB: 09471B12213N000		 .BULB (12V,3.4W) 1 Rp35.500
7 35194-23F00-000 CLIP, HEADLAMP 2 Rp8.000
8 09136-05051-000 SCREW (5X12) 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
