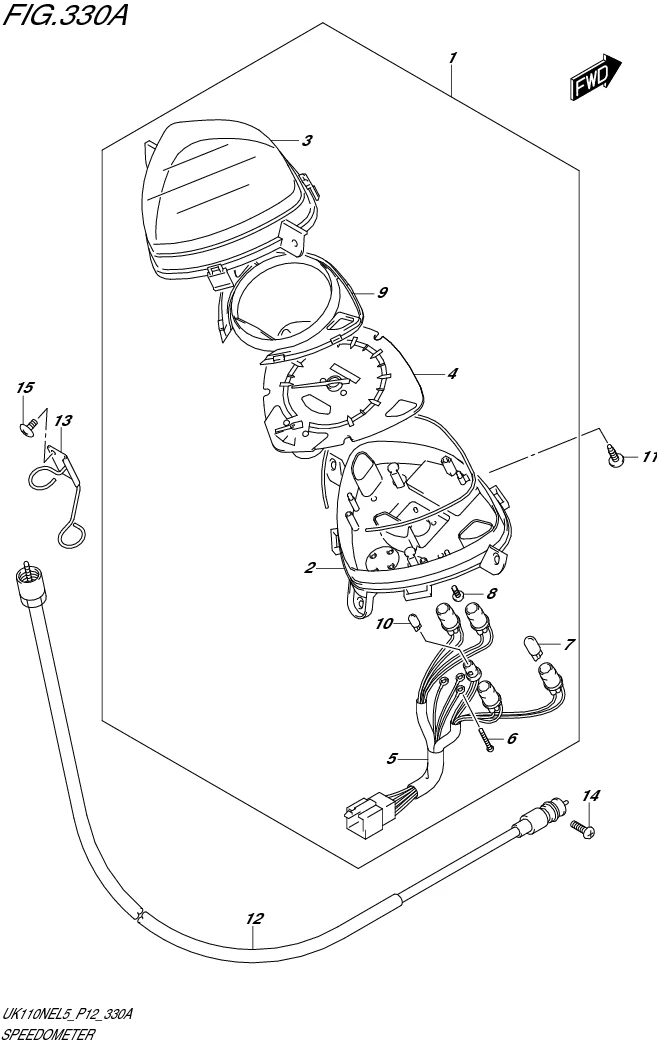

FIG. 330A SPEEDOMETER

FIG. 330A SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-40J01-000
SUB: 34100-40J00-000		 SPEEDOMETER ASSY 1 Rp295.000
2 34111-40J00-000 .CASE 1 Rp64.500
3 34112-40J00-000 .LENS 1 Rp46.000
4 34100-40J01-000
SUB: 34120-40J00-000		 .SPEEDOMETER 1 Rp295.000
5 34173-40J00-000 .CORD ASSY 1 Rp64.000
6 34383-40J00-000 .SCREW 3 Rp4.500
7 09471-12077-000 .BULB (12V,1.7W) 4 Rp6.000
8 34186-40J00-000 .SCREW 2 Rp4.500
9 34125-40J00-000 .REFLECTOR 1 Rp15.500
10 09471-12118-000 .BULB (13.5V,2W) 1 Rp7.500
11 03541-0516A-000 SCREW 3 Rp3.500
12 34910-45H70-000 CABLE ASSY, SPEEDOMETER 1 Rp43.000
13 34930-40J00-000 GUIDE, SPEEDOMETER CABLE 1 Rp7.500
14 02112-0516A-000 SCREW 1 Rp5.500
15 02142-0612A-000 SCREW 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
