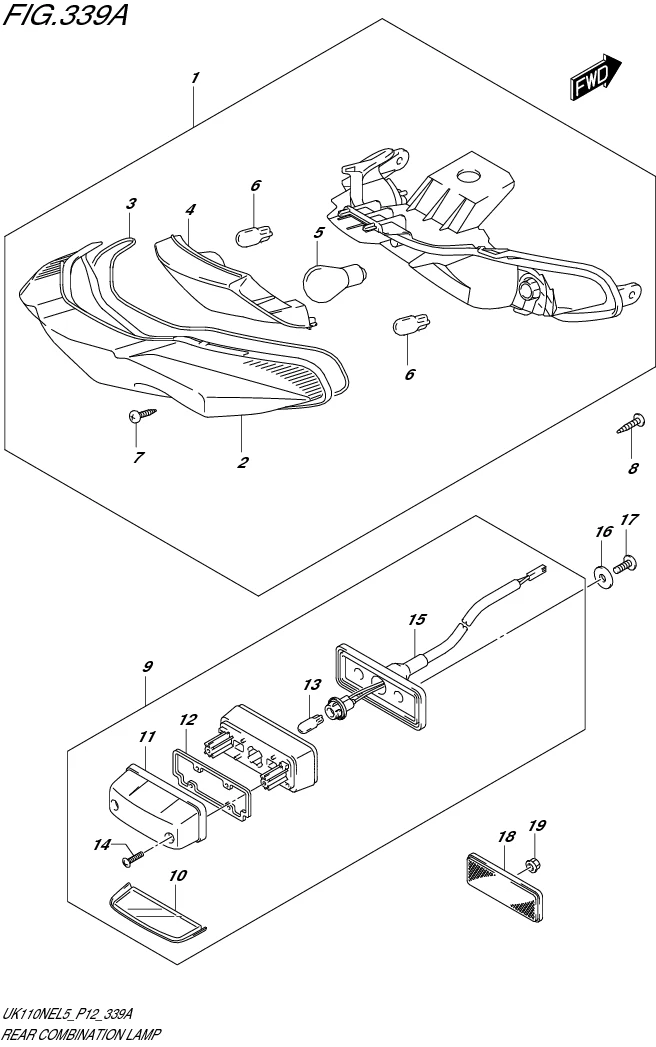

FIG. 339A REAR COMBINATION LAMP

FIG. 339A REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-40J00-000 LAMP ASSY, REAR COMBINATION 1 Rp241.500
2 35712-40J00-000 .LENS 1 Rp36.000
3 35713-40J00-000 .GASKET LENS 1 Rp8.500
4 35719-40J00-000 .INNER LENS 1 Rp20.000
5 09471-12127-000
SUB: 09471-12119-000		 .BULB (12V18/5W) 1 Rp12.500
6 09471-12114AS01
SUB: 09471-12203-000		 .BULB (12V10W) 2 Rp14.000
7 03211-0416B-000 .SCREW 2 Rp4.500
8 03541-0516A-000 SCREW 2 Rp3.500
9 35910-16H21-000
SUB: 35910-16H20-000		 LAMP ASSY, LICENSE 1 Rp163.000
10 35912-16H20-000 .LENS 1 Rp21.000
11 35917-16H00-000 .COVER 1 Rp30.500
12 35913-16H00-000 .GASKET 1 Rp12.000
13 09471-12216-000 .BULB (12V5W) 1 Rp15.000
14 03211-0416B-000 .SCREW 2 Rp4.500
15 35918-16H20-000 .CORD ASSY 1 Rp88.500
16 09160-05045-000 WASHER (5.5X18X1) 2 Rp4.500
17 03541-0516A-000 SCREW 2 Rp3.500
18 35970-28G00-000 REFLECTOR ASSY, REAR 1 Rp14.500
19 08316-1005A-000 NUT 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
