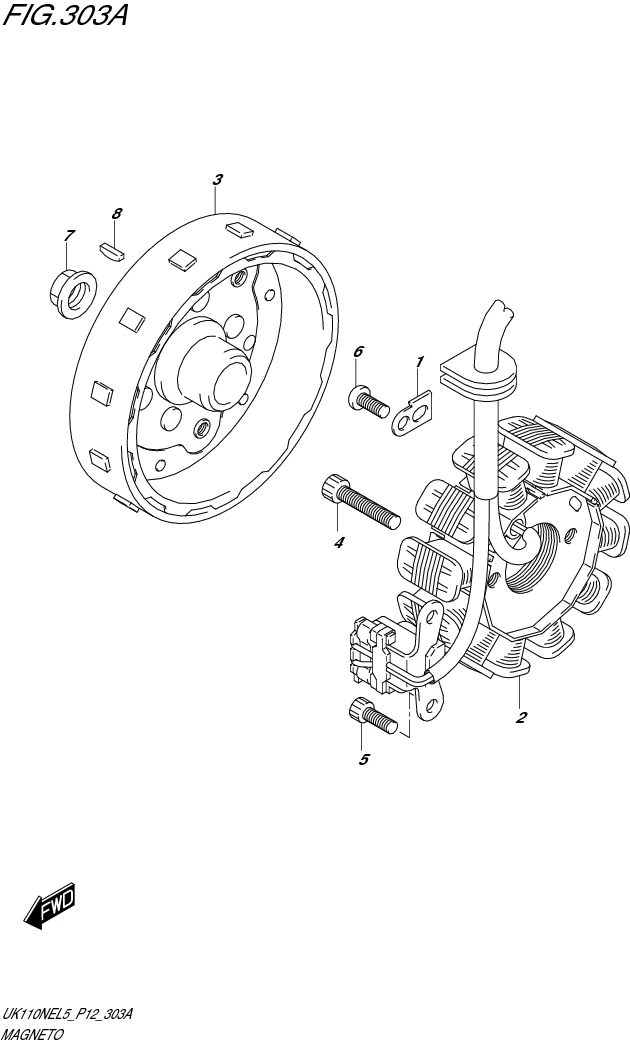

FIG. 303A MAGNETO

FIG. 303A MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 31497-45000-000		 CLAMP, MAGNETO LEAD 1 -
2 32101-09J30-000
SUB: 32101-09J20-000		 STATOR ASSY 1 Rp206.500
3 32102-09J10-000 ROTOR ASSY 1 Rp196.500
4 07130-0625A-000 BOLT 3 Rp3.500
5 07130-0512A-000 BOLT 2 Rp4.000
6 02112-0512A-000 SCREW 1 Rp2.500
7 08316-1010A-000 NUT 1 Rp3.500
8 08341-31039-000 KEY 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
