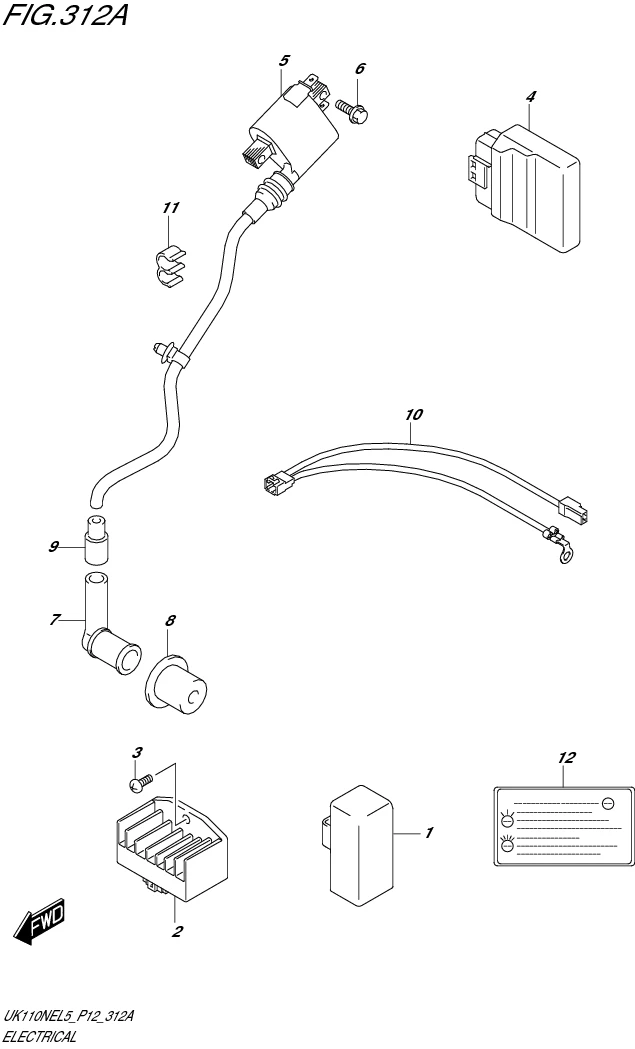

FIG. 312A ELECTRICAL

FIG. 312A ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-16H00-000 RELAY ASSY, STARTING MOTOR 1 Rp64.500
2 32800-09J01-000
SUB: 32800-09J00-000		 RECTIFIER ASSY 1 Rp293.500
3 02112-0612A-000 SCREW 1 Rp3.500
4 32920-40J02-000
SUB: 32920-40J00-000		 CONTROL UNIT, FI 1 Rp788.000
5 33410-40J00-000 COIL ASSY, IGNITION 1 Rp80.000
6 07130-0620A-000 BOLT 2 Rp16.500
7 33510-09J00-000 CAP, SPARK PLUG 1 Rp20.000
8 33541-09J00-000 SEAL, SPARK PLUG 1 Rp11.000
9 33542-09J00-000 SEAL, HIGH TENSION CORD 1 Rp5.000
10 33810-09J00-000 WIRE, STARTER MOTOR 1 Rp19.500
11 33441-40J00-000 CLAMP, HIGH TENSION CORD 1 Rp7.000
12 32929-09J11-000 LABEL, FI LAMP 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
