V-Strom SX250

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 310A BATTERY FIG. 311A STARTER RELAY FIG. 313A RECTIFIER FIG. 316A IGNITION COIL FIG. 322A ELECTRIC POWER CONTROL UNIT FIG. 330A SPEEDOMETER FIG. 333A HEADLAMP FIG. 334A TURNSIGNAL LAMP FIG. 339A REAR COMBINATION LAMP FIG. 350A WIRINGHARNESS FIG. 352A LOCK SET FIG. 301A STARTING MOTOR FIG. 303A MAGNETO FIG. 355A HANDLESWITCH

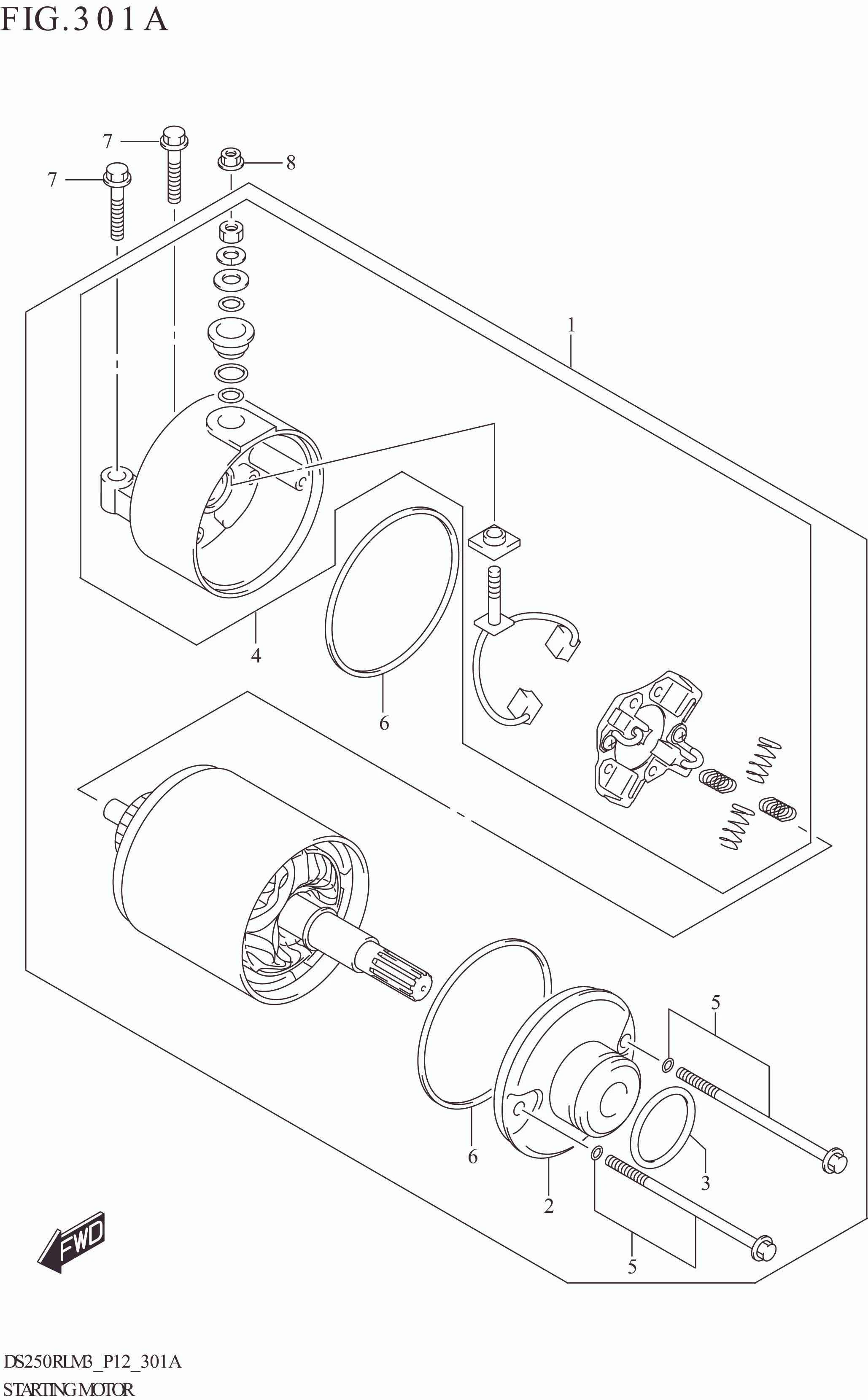

FIG. 301A STARTING MOTOR

FIG. 301A STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100-41K00-000	MOTOR ASSY,STARTING	1	Rp1.267.500
2	31150-41K00-000	.FRONT BRACKET	1	Rp127.000
3	31156-41K00-000	.O-RING	1	Rp10.000
4	31175-41K00-000	.REAR BRACKET	1	Rp297.000
5	31280-41K00-000	.BOLT SET	1	Rp25.000
6	31264-41K00-000	.SEAL SET	4	Rp15.000
7	01547-0625A-000	BOLT	2	Rp6.500
8	08361-3506A-000	NUT	1	Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
