  5. FIG. 339A REAR COMBINATION LAMP

V-Strom SX250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 310A BATTERYFIG. 311A STARTER RELAYFIG. 313A RECTIFIERFIG. 316A IGNITION COILFIG. 322A ELECTRIC POWER CONTROL UNITFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 334A TURNSIGNAL LAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRINGHARNESSFIG. 352A LOCK SETFIG. 301A STARTING MOTORFIG. 303A MAGNETOFIG. 355A HANDLESWITCH

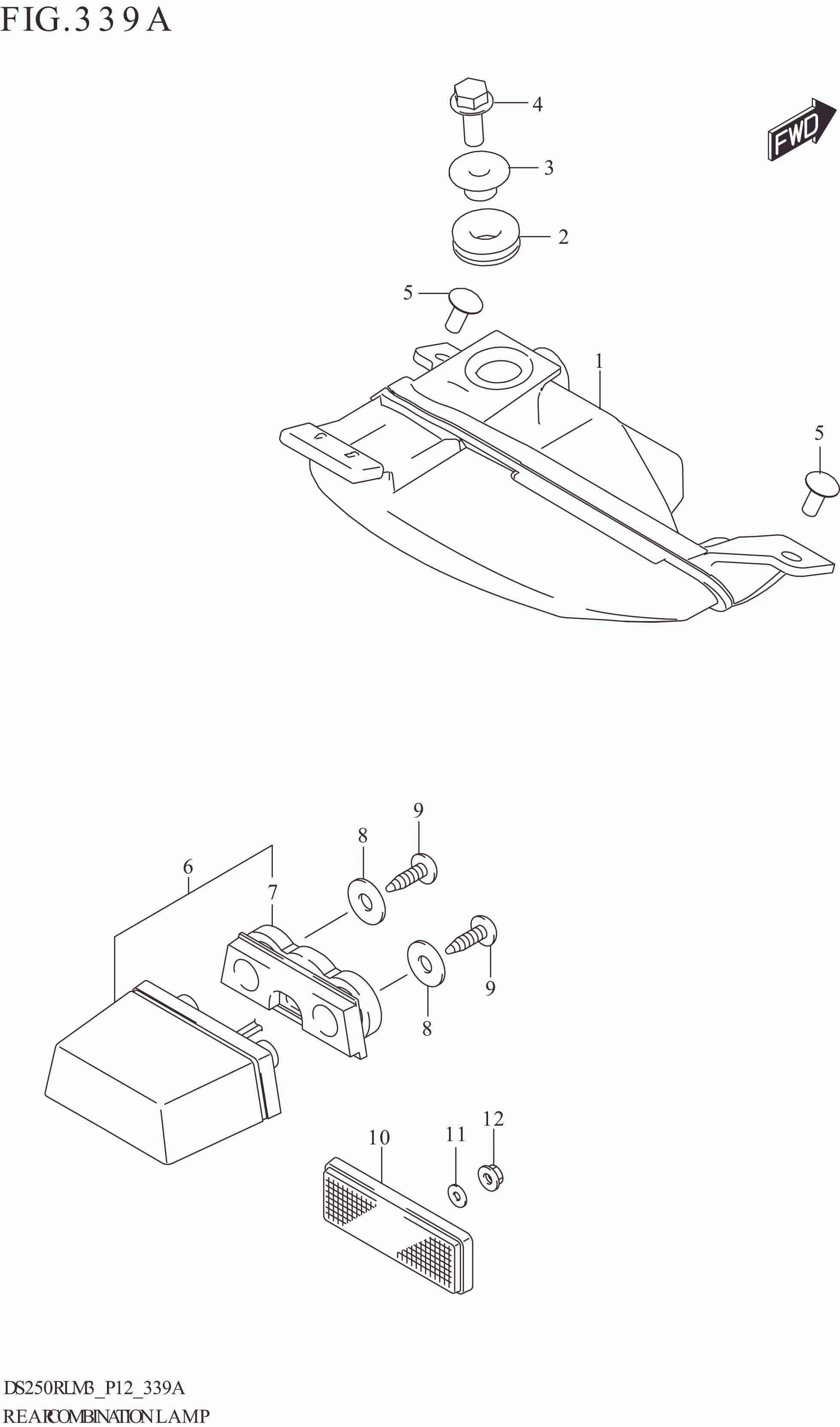

FIG. 339A REAR COMBINATION LAMP

FIG. 339A REAR COMBINATION LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35710-20L00-000 LAMP ASSY,REAR COMB 1 Rp493.000
2 47161-23J00-000 CUSHION (10X22X7) 1 Rp4.000
3 53275-34J00-000 SPACER,FR FENDER 1 Rp5.500
4 01550-0616A-000 BOLT 1 Rp3.500
5 03541-0512A-000 SCREW 2 Rp3.500
6 35910-23K10-000 LAMP ASSY,LICENSE 1 Rp185.000
7 35913-23K00-000 .RUBBER 1 Rp50.500
8 09160-05050-000 WASHER (5.5X18X1) 2 Rp5.500
9 03541-0512A-000 SCREW 2 Rp3.500
10 35970-28G00-000 REFLECTOR ASSY,RR 1 Rp14.500
11 09160-05050-000 WASHER (5.5X18X1) 1 Rp5.500
12 08319-2105A-000 NUT 1 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
