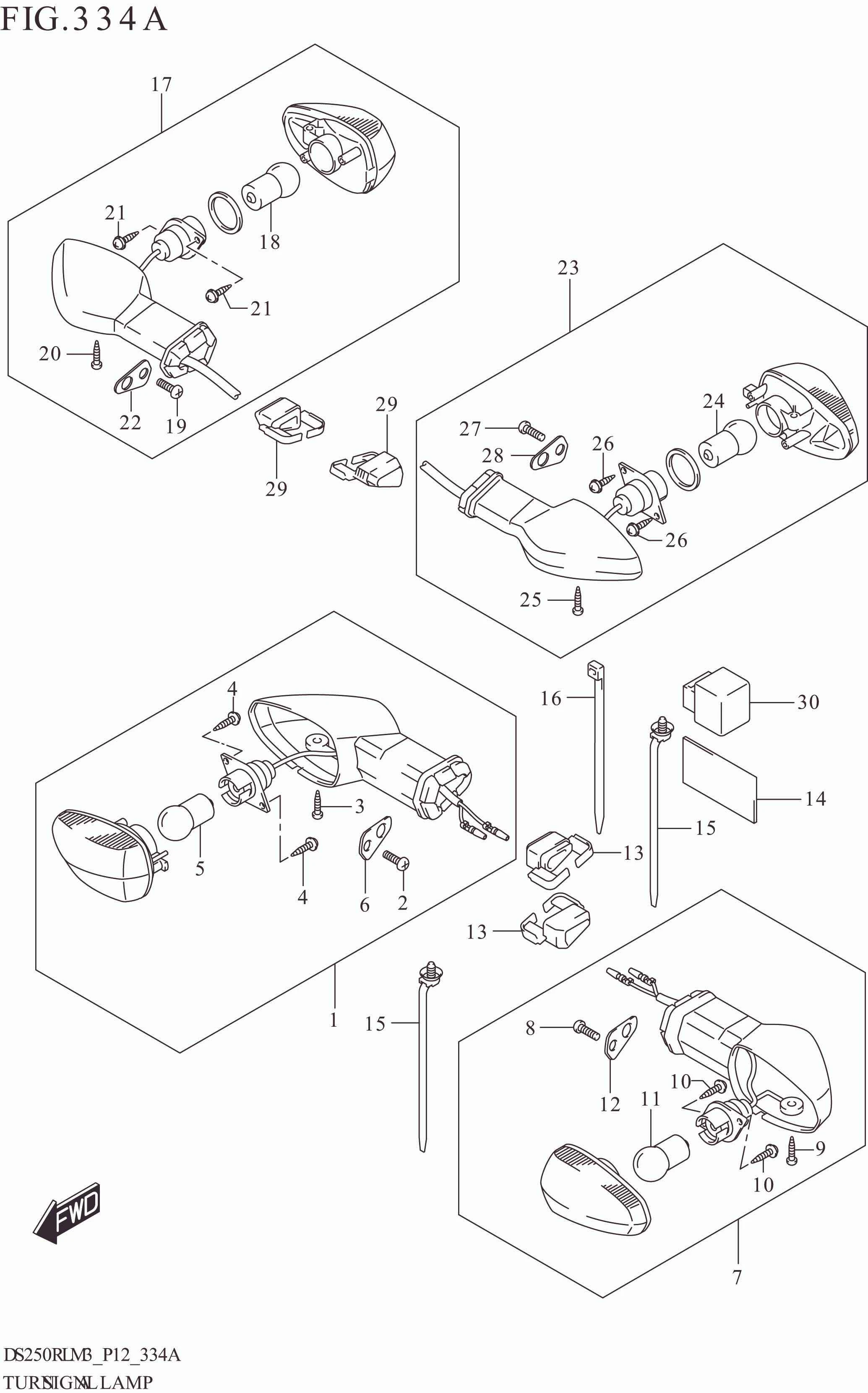

FIG. 334A TURNSIGNAL LAMP

FIG. 334A TURNSIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-20LD0-000
SUB: 35601-20LE0-000		 LAMP ASSY,FRONT TURNSIGNAL,R 1 Rp131.000
2 DISCONTINUE
SUB: 35623-34J00-000		 .SCREW 1 -
3 35623-34J30-000 .SCREW 1 Rp9.500
4 35623-34J40-000 .SCREW 2 Rp9.500
5 35222-34J80-000 .BULB (12V10W,AMBER) 1 Rp35.500
6 35616-34J00-000 .PLATE 1 Rp6.500
7 35602-20LD0-000
SUB: 35602-20LE0-000		 LAMP ASSY,FRONT TURNSIGNAL,L 1 Rp131.000
8 DISCONTINUE
SUB: 35623-34J00-000		 .SCREW 1 -
9 35623-34J30-000 .SCREW 1 Rp9.500
10 35623-34J40-000 .SCREW 2 Rp9.500
11 35222-34J80-000 .BULB (12V10W,AMBER) 1 Rp35.500
12 35616-34J00-000 .PLATE 1 Rp6.500
13 35629-34J30-000 PLATE,FRONT TURNSIGNAL 2 Rp10.000
14 36990-44J10-000 CLAMP, WIRING HARNESS 1 Rp18.000
15 09407-15L01-000 CLAMP (L:170) 2 Rp14.500
16 09407-14407-000 CLAMP (L:145) 1 Rp18.500
17 35603-20L70-000
SUB: 35603-20L50-000		 LAMP ASSY,REAR TURNSIGNAL,R 1 Rp131.000
18 09471-12226-000 .BULB (12V10W,AMBER) 1 Rp47.000
19 35623-34J30-000 .SCREW 1 Rp9.500
20 DISCONTINUE
SUB: 35623-34J00-000		 .SCREW 1 -
21 35623-34J40-000 .SCREW 2 Rp9.500
22 35616-34J00-000 .PLATE 1 Rp6.500
23 35604-20L70-000
SUB: 35604-20L50-000		 LAMP ASSY,REAR TURNSIGNAL,L 1 Rp131.000
24 09471-12226-000 .BULB (12V10W,AMBER) 1 Rp47.000
25 35623-34J30-000 .SCREW 1 Rp9.500
26 DISCONTINUE
SUB: 35623-34J00-000		 .SCREW 1 -
27 35623-34J40-000 .SCREW 2 Rp9.500
28 35616-34J00-000 .PLATE 1 Rp6.500
29 35629-34J30-000 PLATE,FRONT TURNSIGNAL 2 Rp10.000
30 38610-27K00-000 RELAY ASSY,TURNSIGNAL 1 Rp75.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
