V-Strom SX250

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 310A BATTERY FIG. 311A STARTER RELAY FIG. 313A RECTIFIER FIG. 316A IGNITION COIL FIG. 322A ELECTRIC POWER CONTROL UNIT FIG. 330A SPEEDOMETER FIG. 333A HEADLAMP FIG. 334A TURNSIGNAL LAMP FIG. 339A REAR COMBINATION LAMP FIG. 350A WIRINGHARNESS FIG. 352A LOCK SET FIG. 301A STARTING MOTOR FIG. 303A MAGNETO FIG. 355A HANDLESWITCH

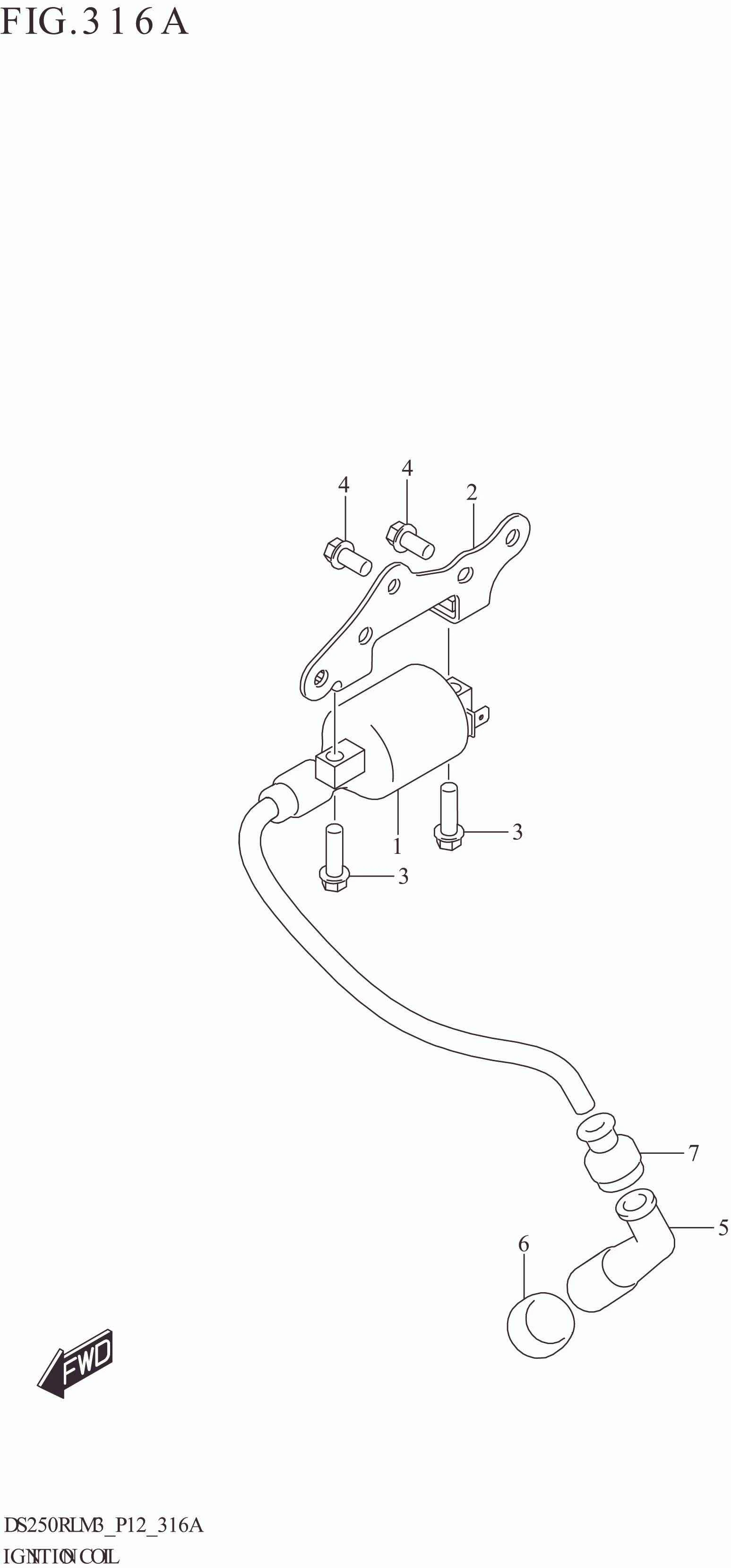

FIG. 316A IGNITION COIL

FIG. 316A IGNITION COIL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	33410-41K00-000	COIL ASSY,IGNITION	1	Rp104.000
2	33414-41K00-000	BRACKET,IGNITION COIL	1	Rp32.500
3	01547-0620B-000 SUB: 01547-0620A-000	BOLT	2	Rp6.500
4	01547-0610A-000 SUB: 01547-0612A-000	BOLT	2	Rp3.000
5	33510-41K00-000	CAP ASSY,SPARK PLUG	1	Rp36.000
6	33541-08K00-000	SEAL,SPARK PLUG	1	Rp15.500
7	33542-30H00-000	SEAL,HIGH TENSION CORD	1	Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
