V-Strom SX250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 310A BATTERYFIG. 311A STARTER RELAYFIG. 313A RECTIFIERFIG. 316A IGNITION COILFIG. 322A ELECTRIC POWER CONTROL UNITFIG. 330A SPEEDOMETERFIG. 333A HEADLAMPFIG. 334A TURNSIGNAL LAMPFIG. 339A REAR COMBINATION LAMPFIG. 350A WIRINGHARNESSFIG. 352A LOCK SETFIG. 301A STARTING MOTORFIG. 303A MAGNETOFIG. 355A HANDLESWITCH

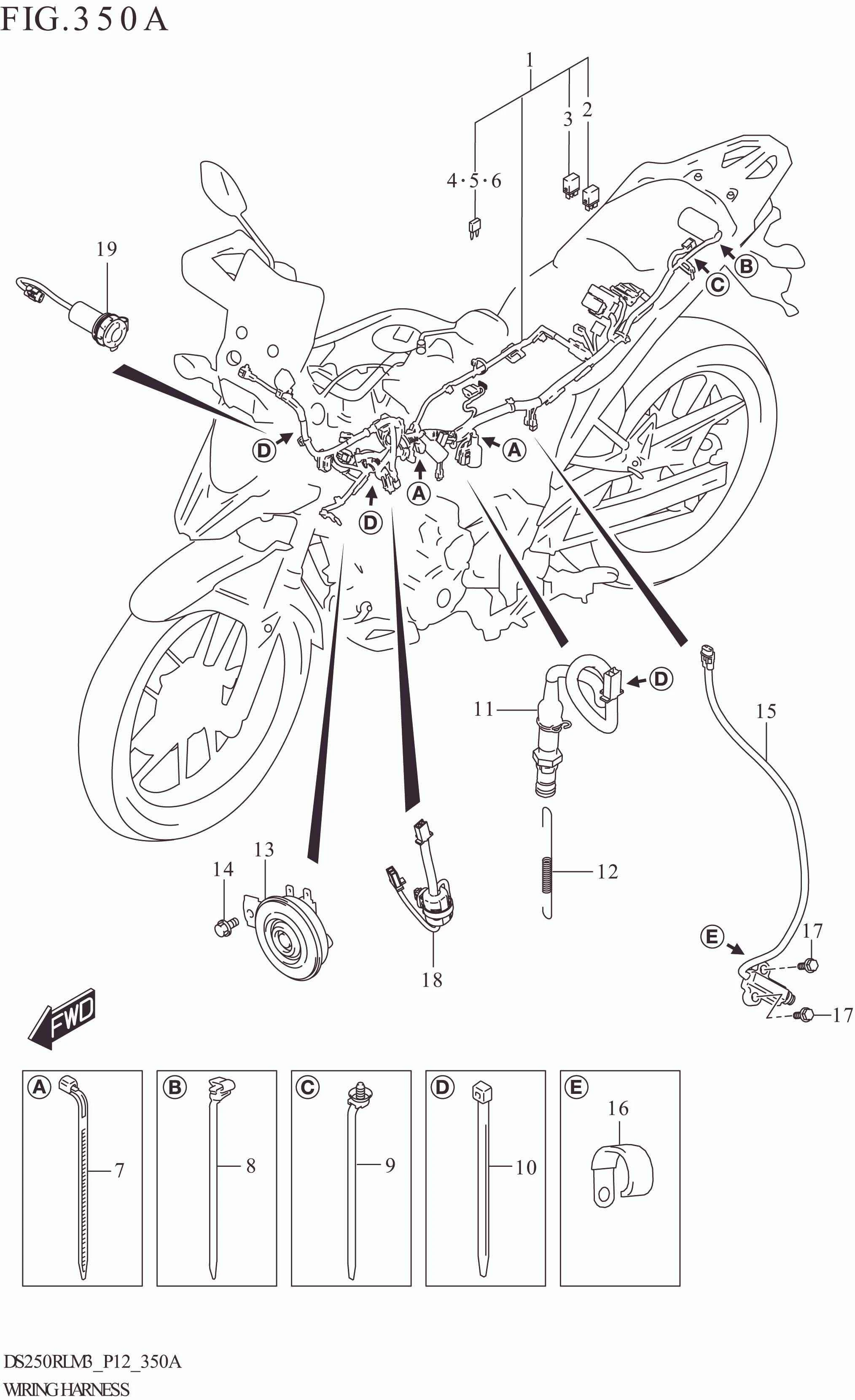

FIG. 350A WIRINGHARNESS

FIG. 350A WIRINGHARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36610-20L00-000 HARNESS,WIRING 1 Rp2.436.000
2 38860-76F01-000 .RELAY ASSY 1 Rp47.000
3 38860-76F01-000 .RELAY ASSY 1 Rp47.000
4 09481-10501-000 .FUSE (10A) 3 Rp12.000
5 09481-15501-000 .FUSE (15A) 2 Rp12.000
6 09481-20501-000 .FUSE (20A) 1 Rp14.500
7 36990-70F20-000 CLAMP,COMB SW WIRE (L:165) 2 Rp5.500
8 36990-44J10-000 CLAMP, WIRING HARNESS 1 Rp18.000
9 09407-14L01-000 CLAMP (L:125) 1 Rp5.500
10 09407-14407-000 CLAMP (L:145) 4 Rp18.500
11 37740-34J20-000 SWITCH ASSY,STOP LAMP 1 Rp54.000
12 43232-34J00-000 SPRING,STOP LAMP SWITCH 1 Rp4.500
13 38500-41K01-000 HORN ASSY 1 Rp344.500
14 01550-0610B-000 BOLT 1 Rp3.000
15 37840-48K00-000 SWITCH ASSY,SIDE STAND 1 Rp677.000
16 09404-06429-000 CLAMP (L:45) 1 Rp15.000
17 01550-0620A-000 BOLT (6X20) 2 Rp3.500
18 36852-20L10-000 WIRE,FAN MOTOR LEAD 1 Rp279.500
19 39105-44K31-000
SUB: 39105-44K30-000		 SOCKET,USB 1 Rp267.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
