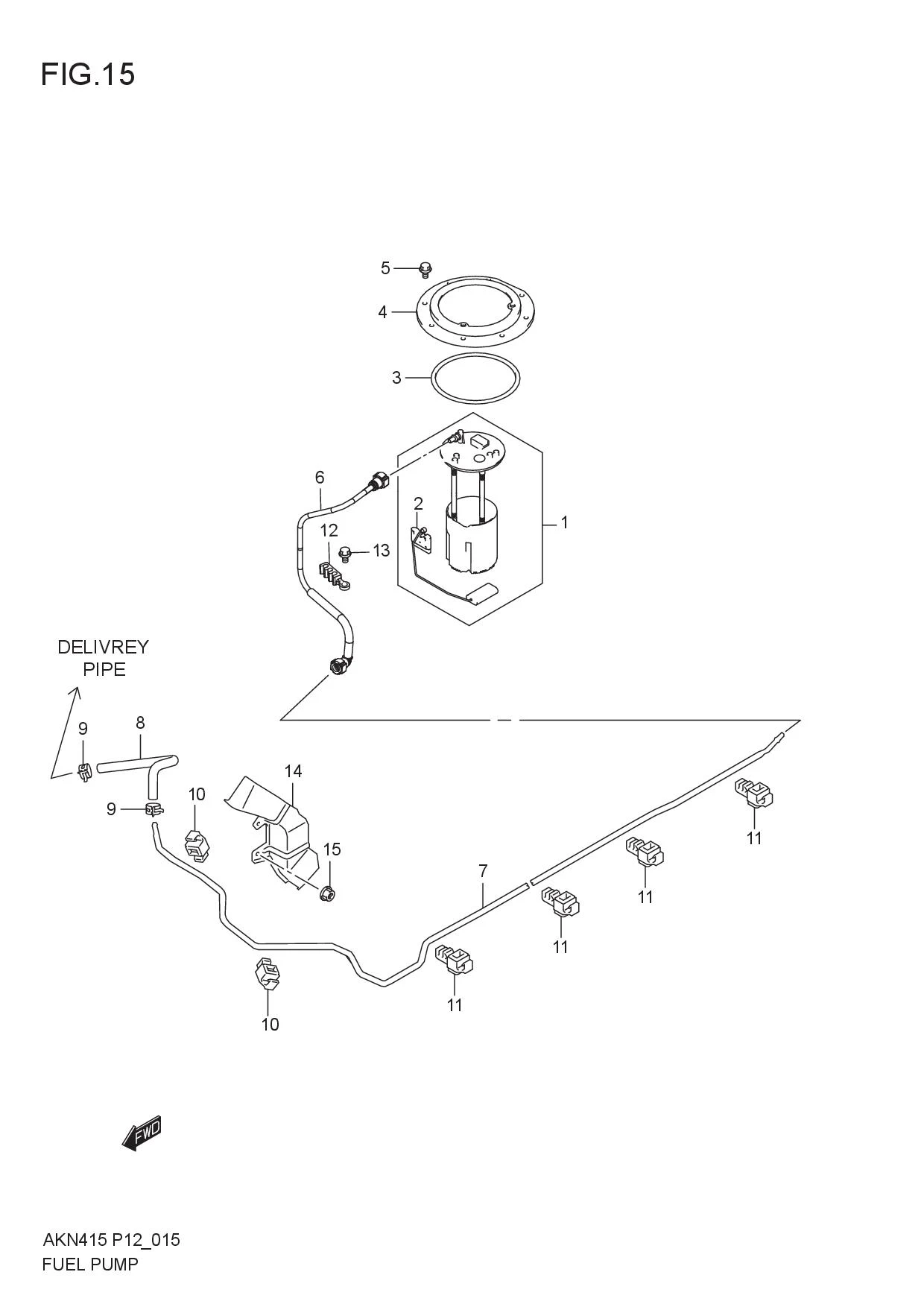

FIG.15 FUEL PUMP

FIG.15 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100M65MB0-000 PUMP ASSY, FUEL 1 Rp2.565.500
2 34810-80J00-000 .GAUGE ASSY FUEL SENDER 1 Rp927.500
3 15111M61J10-000 GASKET, FUEL PUMP 1 Rp138.500
4 15121M61J00-000 PLATE, FUEL PUMP 1 Rp23.500
5 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 8 Rp3.000
6 15812M65MB0-000 PIPE, FUEL 1 Rp282.500 PUMP TO PIPE
7 15811M61M00-000 PIPE, FUEL FEED 1 Rp260.500
8 15815M65MB0-000 HOSE, FUEL FEED 1 Rp268.000 FUEL FEED PIPE TO DELIVERY PIPE
9 09401-11420-000 CLIP, FUEL HOSE 2 Rp24.500
10 15891M65MB0-000 CLAMP 3 Rp35.000
11 15892M65MB0-000 CLAMP 4 Rp41.000
12 15824M55K00-000 CLAMP 1 Rp12.000
13 01550-0610B-000
SUB: 01550B0610AN000		 BOLT 1 Rp3.000
14 15873M61M00-000 PROTECTOR, FUEL PIPE 1 Rp55.000
15 09159-06076-000 NUT 2 Rp19.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
