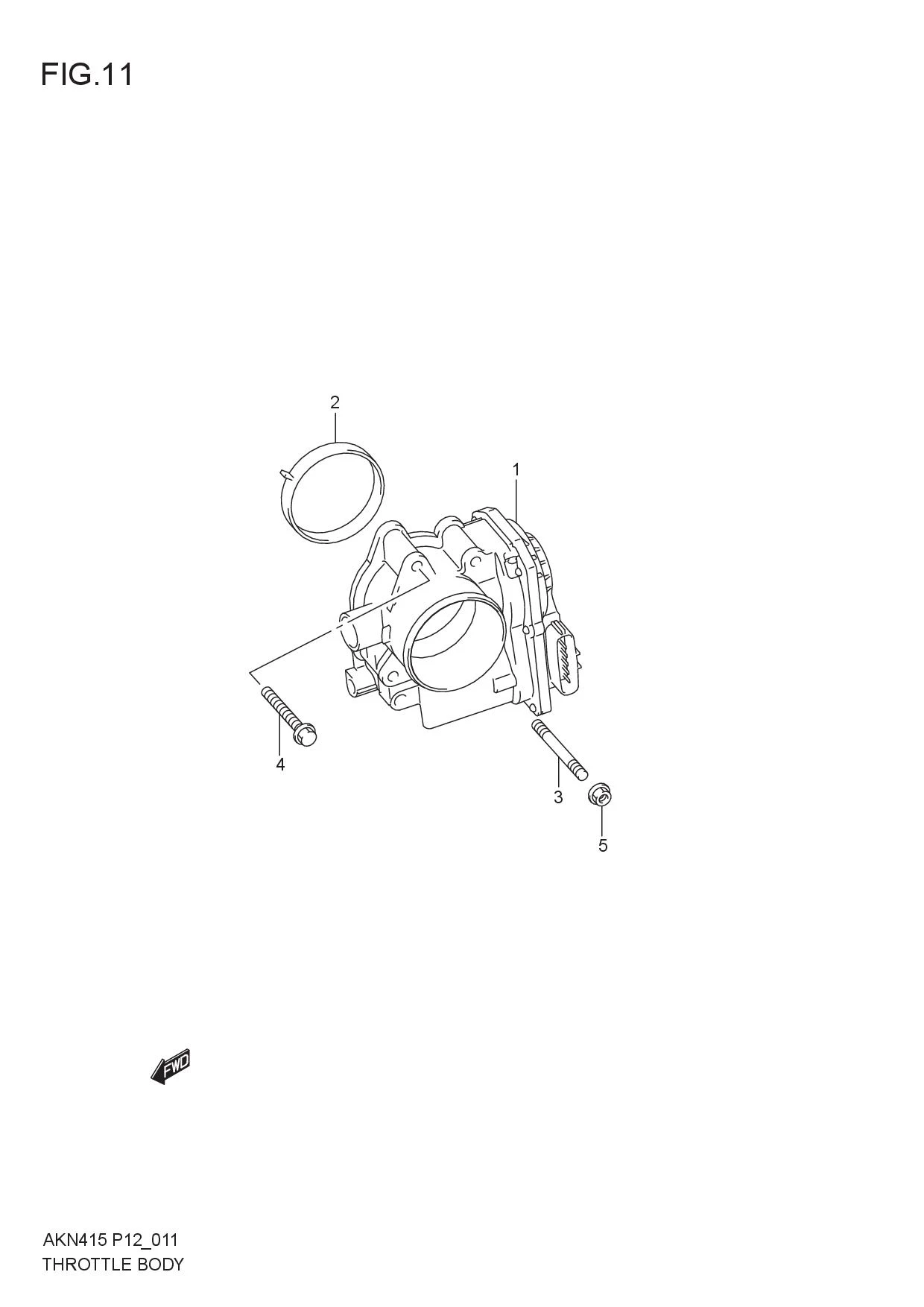

FIG.11 THROTTLE BODY

FIG.11 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400-65MB0-000
SUB: 13400M65MB0-000
BODY ASSY, THROTTLE 1 Rp4.276.500
2 13421-54LA0-000 GASKET, THROTTLE BODY 1 Rp111.500
3 01421-0650A-000 BOLT 2 Rp14.000
4 01550-0650A-000 BOLT 2 Rp5.500
5 08316-1006A-000
SUB: 08316B1006AN000
NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
