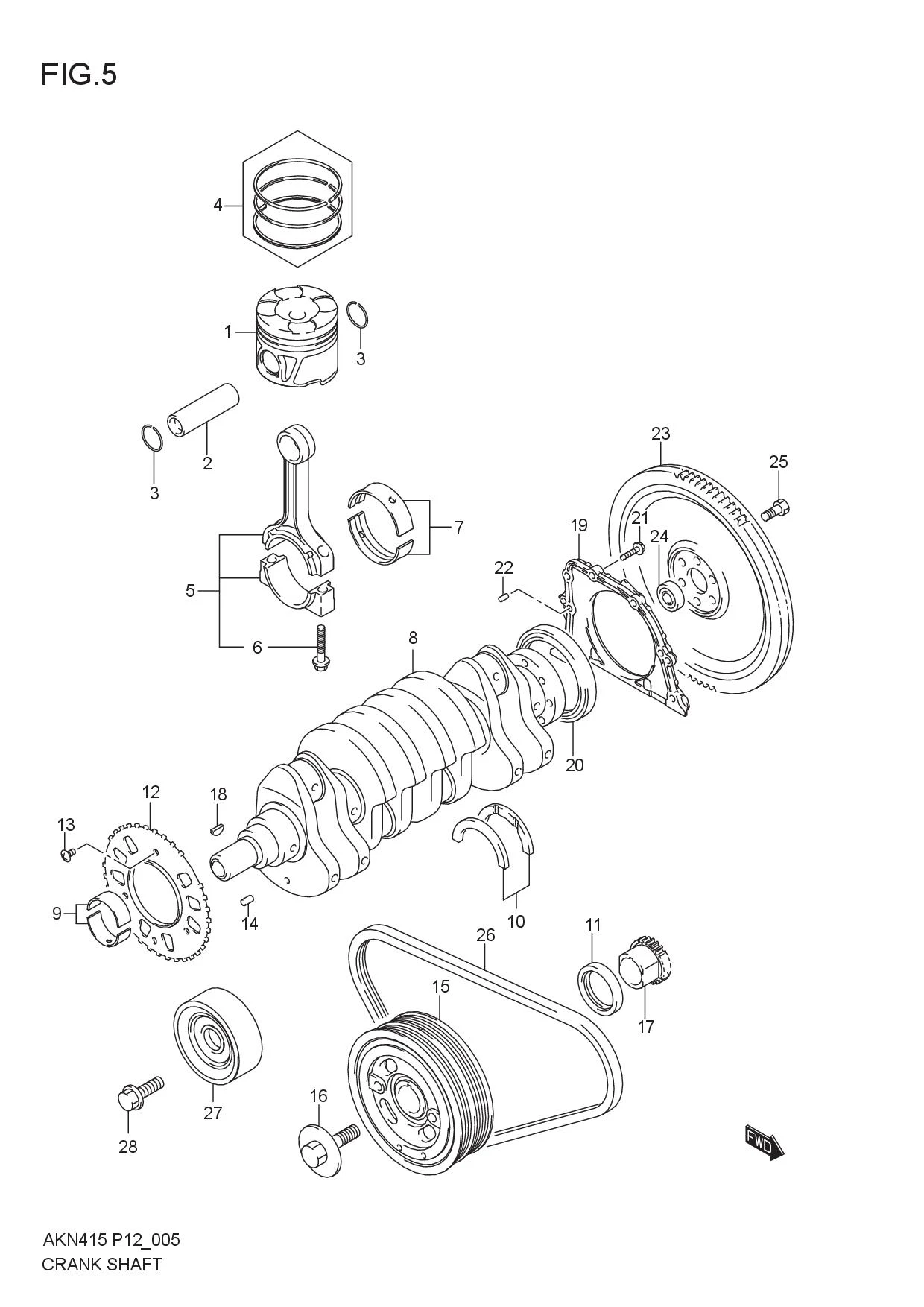

FIG.5 CRANKSHAFT

FIG.5 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 12111M65MB0-050		 PISTON (OS:0.50) 4 -
1-1 12111M65MB0-000 PISTON (STD) 4 Rp457.500
2 12151M65MB0-000 PIN, PISTON 4 Rp72.500
3 09381-20004-000 CIRCLIP, PISTON PIN 8 Rp13.500
4-1 12140M65MB0-000 RING SET, PISTON (STD) 4 Rp161.000
4-2 12140M65MB0-050 RING SET, PISTON (OS:0.50) 4 Rp167.000
5 12160M65MB1-000 CONNROD ASSY 4 Rp427.500
6 12163-57K00-000 .BOLT, CONNROD 8 Rp30.500
7-3 12100-70880-0C0
SUB: 12181-70HA0-0C0		 BEARING, CONNROD (NON COLOR) 8 Rp199.500
7-6 12100-70880-025
SUB: 12181-70HA0-025		 BEARING, CONNROD (US:0.25) 8 Rp206.000
7-5 12100-70880-0E0
SUB: 12181-70HA0-0E0		 BEARING, CONNROD (BLUE) 8 Rp211.000
7-4 12100-70880-0D0
SUB: 12181-70HA0-0D0		 BEARING, CONNROD (YELLOW) 8 Rp199.500
7-2 12100-70880-0B0
SUB: 12181-70HA0-0B0		 BEARING, CONNROD (BLACK) 8 Rp206.000
7-1 12100-70880-0A0
SUB: 12181-70HA0-0A0		 BEARING, CONNROD (GREEN) 8 Rp199.500
8 12221-65MB0-000 CRANKSHAFT 1 Rp10.105.000
9-9 12300-57830-0DA BEARING SET RED/GREEN (US:0.25,T:2.125) 5 Rp219.500
9-10 12300-57830-0EA BEARING SET RED/BLACK (US:0.25,T:2.125) 5 Rp224.500
9-8 12300-57830-0CA BEARING SET RED/BROWN (US:0.25,T:2.125) 5 Rp219.500
9-7 12300-57830-0BA BEARING SET RED/PURPLE (US:0.25,T:2.125) 5 Rp219.500
9-6 12300-57830-0AA BEARING SET RED/PINK (US:0.25,T:2.125) 5 Rp224.500
9-4 12340-61M00-0D0 BEARING SET GREEN (STD,T:2.0) 5 Rp219.500
9-3 12340-61M00-0C0 BEARING SET BROWN (STD,T:2.0) 5 Rp213.000
9-2 12340-61M00-0B0 BEARING SET PURPLE (STD,T:2.0) 5 Rp219.500
9-1 12340-61M00-0A0 BEARING SET PINK (STD,T:2.0) 5 Rp219.500
9-5 12340-61M00-0E0 BEARING SET BLACK (STD,T:2.0) 5 Rp224.500
10-1 DISCONTINUE
SUB: 12351-78K00-000		 BEARING, CRANK THRUST 2 -
10-2 12300-78890-012
SUB: 12351-78K00-012		 BEARING,CRANK THRUST (OS:0.125) 2 Rp167.500
11 09283-41003-000 SEAL, OIL 1 Rp94.500
12 12222-54LA0-000 PLATE, SENSOR 1 Rp115.500
13 12223-69G00-000 SCREW, SENSOR PLATE 3 Rp13.500
14 09205-05006-000 PIN 1 Rp11.500
15 12610-64J00-000 PULLEY, CRANKSHAFT 1 Rp1.089.000
16 12619M84MA0-000 BOLT, CRANK PULLEY 1 Rp95.000
17-1 12631M83K01-000 SPROCKET, CRANKSHAFT TIMING 1 Rp275.000 VENDOR:BORGWARNER MORSE TEC INDIA PRIVATE LTD
17-2 12631M83K11-000 SPROCKET, CRANKSHAFT TIMING 1 Rp228.500 VENDOR:SANSERA ENGINEERING PVT LTD
18 08341M31059-000 KEY 1 Rp4.500
19 11341M55K00-000 HOUSING, OIL SEAL 1 Rp117.500
20 11342M55K00-000 SEAL, CRANKSHAFT REAR OIL 1 Rp141.000
21 09103M06315-000 BOLT 7 Rp6.000
22 11345M68K00-000 PIN, OIL SEAL HOUSING DOWEL 2 Rp5.500
23 12620M55K00-000 FLYWHEEL 1 Rp933.500 5MT
24 12623M68K00-000 BEARING, INPUT SHAFT 1 Rp88.000 5MT
25 09103-10440-000 BOLT, FLYWHEEL 8 Rp33.000 5MT
26 17521M68PA0-000 BELT, WATER PUMP 1 Rp105.000
27 17530-50M30-000
SUB: 17530-50M00-000		 PULLEY, BELT TENSIONER 1 Rp472.000
28 01550-1040A-000
SUB: 01550B1040AN000		 BOLT, IDLER PULLEY 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
