SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SETFIG.2 CYLINDER HEADFIG.3 CYLINDERFIG.4 OIL PANFIG.5 CRANKSHAFTFIG.6 CAM SHAFT/VALVEFIG.7 CAM CHAINFIG.8 ENGINE MOUNTING (5MT)FIG.9 ENGINE MOUNTING (6AT)FIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPE/FUEL INJECTORFIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSE (5MT)FIG.21 WATER HOSE (6AT)

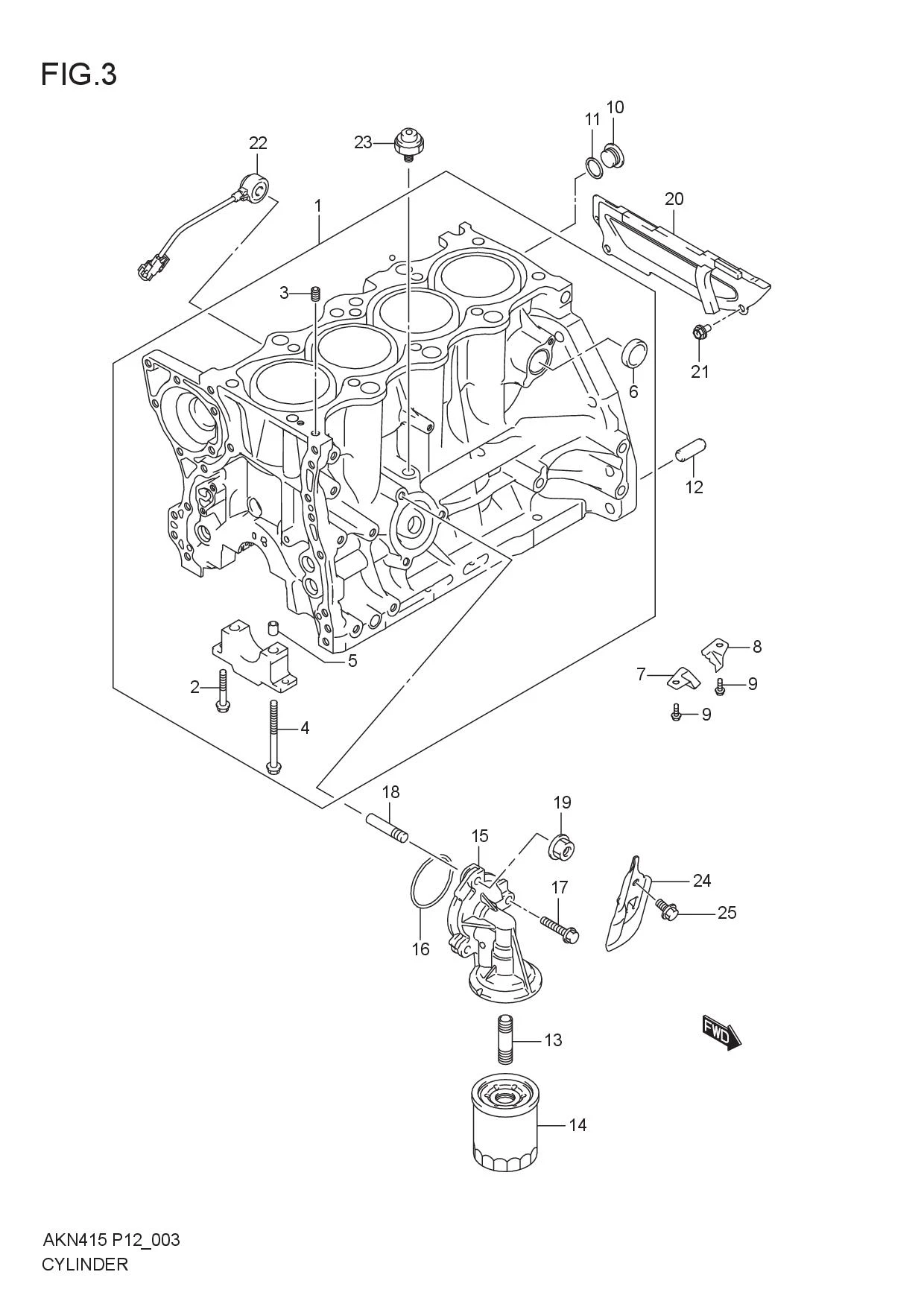

FIG.3 CYLINDER

FIG.3 CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200M61MA1-000
SUB: 11200-61MA1-X12		 BLOCK ASSY, CYLINDER 1 Rp23.698.000
2 01550-0840A-000
SUB: 01550B0840AN000		 .BOLT 10 Rp3.500
3 11112-73010-000 .PLUG, OIL VENTURI 1 Rp24.000
4 11260-69G01-000 .BOLT 10 Rp53.500
5 04211M13189-000 .PIN 5 Rp9.000
6 09241M30010-000 .PLUG (OD:30) 1 Rp5.500
7 DISCONTINUE
SUB: 11213-69G00-000		 PLATE, BREATHER FRONT 1 -
8 DISCONTINUE
SUB: 11214-69G00-000		 PLATE, BREATHER REAR 1 -
9 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
10 09248-18011-000 PLUG 1 Rp38.000
11 11216M68K10-000 GASKET 1 Rp8.000
12 11519M67L00-000 PIN (8X23) 2 Rp6.000
13 11241-86FA0-000 STAND, OIL FILTER 1 Rp88.000
14 16510M55K00-000 FILTER ASSY, OIL 1 Rp46.000
15 16531-69G20-000
SUB: 16531-69G10-000		 CASE, OIL FILTER ADAPTER 1 Rp818.500
16 09280-62003-000 O-RING(D:3.5,ID:60.7), OIL ADAPTER CASE 1 Rp43.500
17 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 2 Rp4.000
18 09108-08304-000 BOLT 1 Rp32.500
19 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
20 11320-63J00-000 PLATE, CLUTCH HSG LOWER 1 Rp136.500
21 11331M65MB0-000 BOLT, CLUTCH HSG LOWER PLATE 2 Rp5.500
22 18640-78K00-000 SENSOR ASSY, KNOCK 1 Rp1.440.000
23 37820M68K00-000 SWITCH ASSY, OIL PRESSURE 1 Rp199.500
24 16533-61M00-000
SUB: 16533M61M00-000		 COVER, OIL PRESSURE SW 1 Rp33.000
25 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
