SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT (5MT:TYPE-1)FRONT DRIVE SHAFT (5MT:TYPE-2)FRONT DRIVE SHAFT (6AT:TYPE-1)FRONT DRIVE SHAFT (6AT:TYPE-2)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE (TYPE-1)ROAD WHEEL/TIRE (TYPE-2)STEERING WHEEL (5MT)STEERING WHEEL (6AT)STEERING COLUMNSTEERING UNIT (TYPE-1)STEERING UNIT (TYPE-2)PEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (6AT)BRAKE MASTER CYLINDERBRAKE PIPINGANTILOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

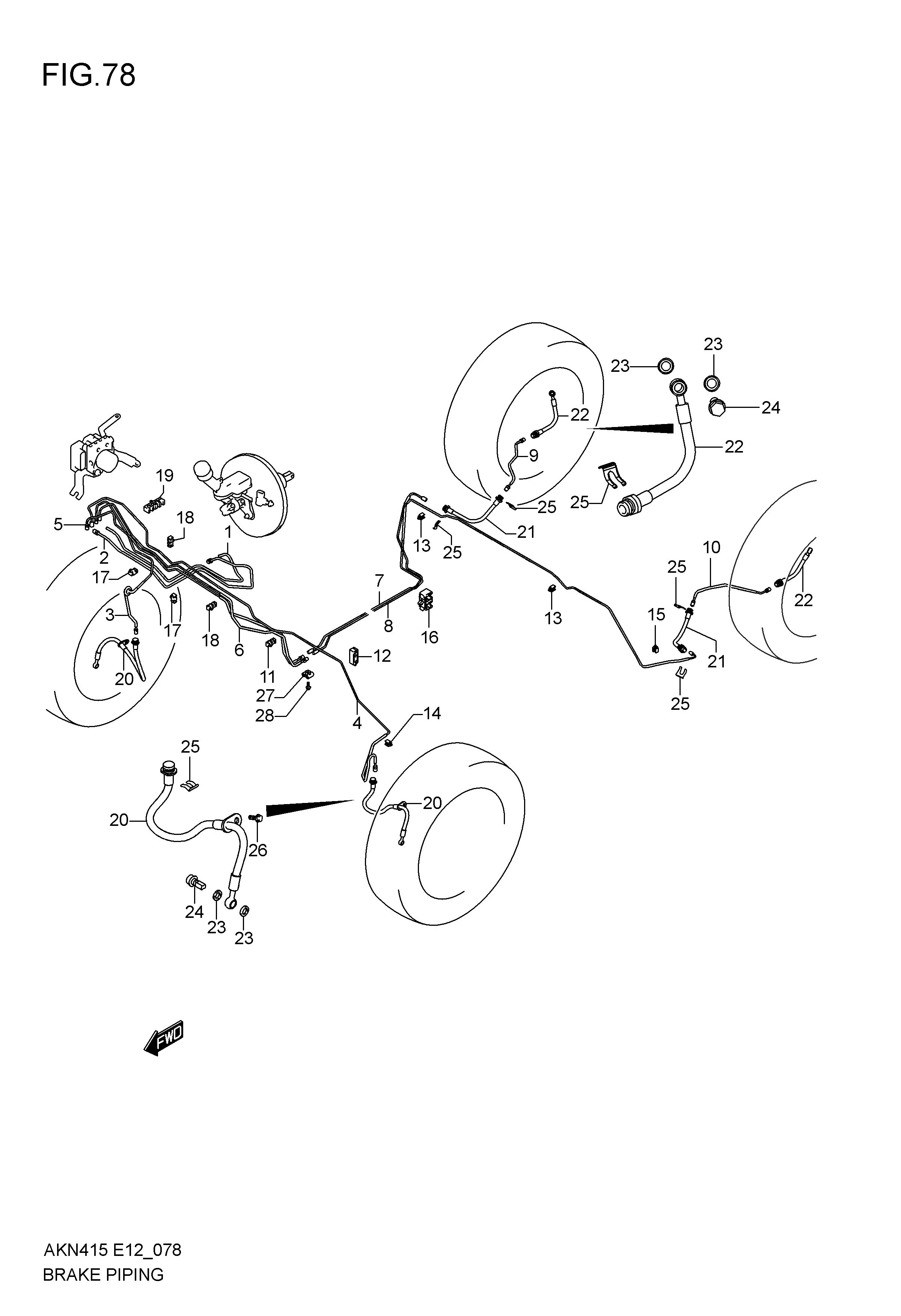

BRAKE PIPING

BRAKE PIPING
No No. Part Description Qty Price Per Pcs Remarks
1 51410M65M50-000 PIPE,MA PRI TO HU 1 Rp66.500
2 51420M65M50-000 PIPE,MA SEC TO HU 1 Rp72.500
3 51430M65M00-000 PIPE,HU TO FR BK HOSE,R 1 Rp75.500
4-1 51440M65M00-000 PIPE,HU TO FR BK HOSE,L 1 Rp142.500 TYPE-1
4-2 51440M84R00-000 PIPE,HU TO FR BK HOSE,L 1 Rp117.000 TYPE-2
5-1 51450M65M00-000 PIPE,HU TO JOINT,R 1 Rp107.500 TYPE-1
5-2 51450M84R00-000 PIPE,HU TO JOINT,R 1 Rp86.500 TYPE-2
6-1 51460M65M00-000 PIPE,HU TO JOINT,L 1 Rp107.500 TYPE-1
6-2 51460M84R00-000 PIPE,HU TO JOINT,L 1 Rp84.000 TYPE-2
7 51470M65M00-000 PIPE,JOINT TO RR BK HOSE,R 1 Rp117.500
8-1 51480M65M10-000 PIPE,JOINT TO RR BK HOSE,L 1 Rp179.000 TYPE-1
8-2 51480M84R00-000 PIPE,JOINT TO RR BK HOSE,L 1 Rp154.500 TYPE-2
9 51510M65M00-000 PIPE,RR BK HOSE TO CLPR HOSE,R 1 Rp53.500
10 51520M65M00-000 PIPE,RR BK HOSE TO CLPR HOSE,L 1 Rp53.500
11 51751M75J00-000 CLAMP,BK PIPE DASH DOUBLE 1 Rp10.500
12 DISCONTINUE
SUB: 51752M70F00-000		 CLAMP,BK PIPE DASH 1 -
13 51761M60M00-000 CLAMP,BK PIPE RR FL SINGLE 2 Rp5.500
14 51761M60M20-000 CLAMP,BK PIPE FR SIDE SINGLE 1 Rp5.500
15 51761M60M20-000 CLAMP,BK PIPE RR FL SINGLE 1 Rp5.500
16 51761M65M20-000 CLAMP,BK PIPE RR FL DOUBLE 1 Rp9.000
17 51761M65M20-000 CLAMP,BK PIPE STRUT DOUBLE 2 Rp9.000
18 51761M65M30-000 CLAMP,BK PIPE STRUT TRIPLE 2 Rp13.500
19 51761M65M40-000 CLAMP,BK PIPE STRUT QDRPL 1 Rp14.500
20 51550M65M00-000 HOSE, FR BRAKE FLEXIBLE 2 Rp235.500
21 51570M55K00-000 HOSE, RR BRAKE FLEXIBLE 2 Rp103.500
22 51570M65M00-000 HOSE, REAR DISC FLEXIBLE 2 Rp145.500
23 51562M55K00-000 WASHER,DISC FLEXIBLE HOSE 8 Rp8.500
24 51561M55K00-000 BOLT, DISC FLEXIBLE HOSE 4 Rp8.500
25 09383M13004-000 E-RING 8 Rp7.000
26 01551-0816C-000 BOLT,FRONT BRAKE HOSE STRUT 2 Rp13.500
27 51630M70F00-000 JOINT, BRAKE 4 WAY 1 Rp122.000
28 02162-0625A-000 BOLT,BRAKE JOINT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
