SX4 S-Cross M

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT STABILIZERFRONT DRIVE SHAFT (5MT:TYPE-1)FRONT DRIVE SHAFT (5MT:TYPE-2)FRONT DRIVE SHAFT (6AT:TYPE-1)FRONT DRIVE SHAFT (6AT:TYPE-2)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRE (TYPE-1)ROAD WHEEL/TIRE (TYPE-2)STEERING WHEEL (5MT)STEERING WHEEL (6AT)STEERING COLUMNSTEERING UNIT (TYPE-1)STEERING UNIT (TYPE-2)PEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (6AT)BRAKE MASTER CYLINDERBRAKE PIPINGANTILOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

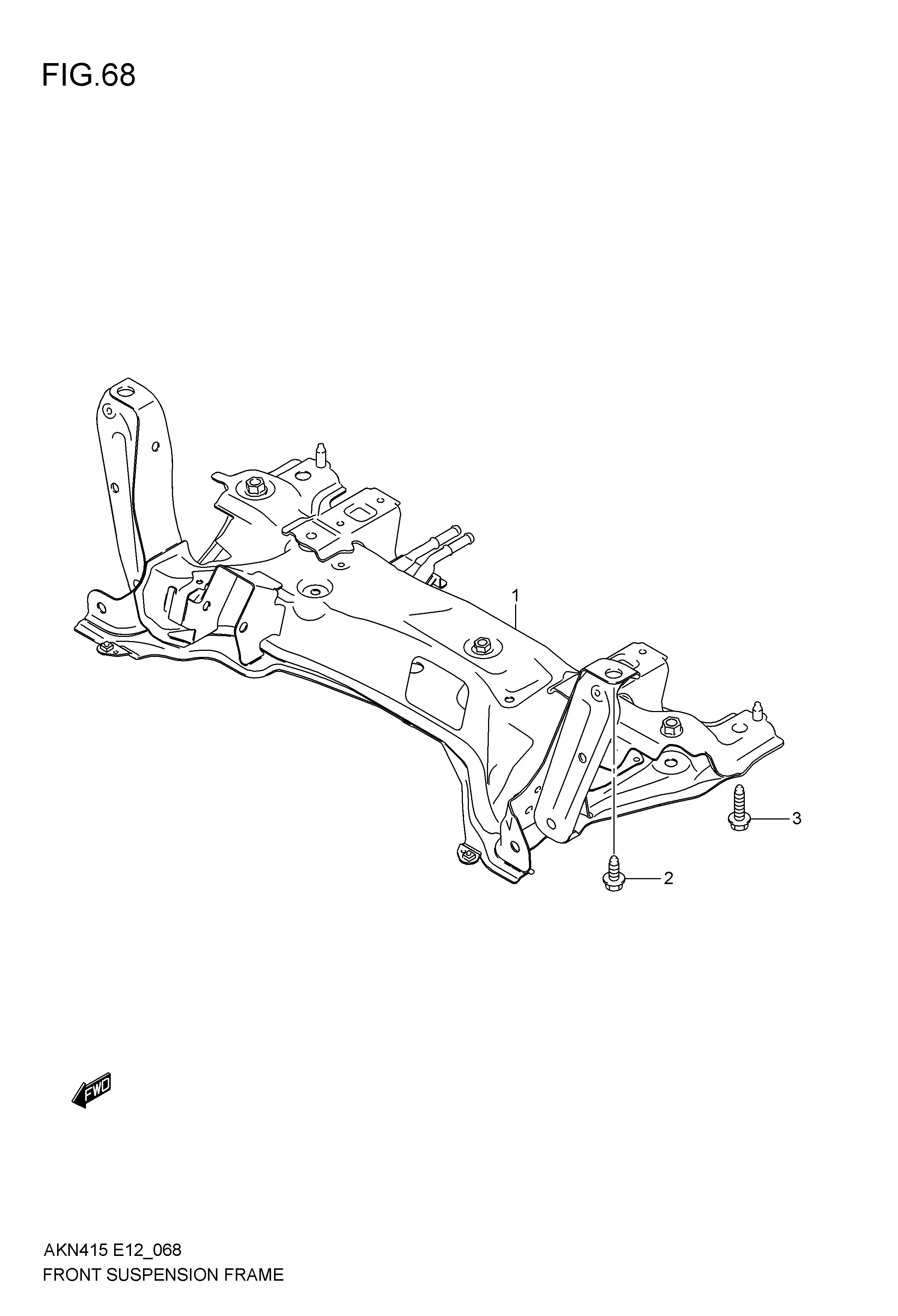

FRONT SUSPENSION FRAME

FRONT SUSPENSION FRAME
No No. Part Description Qty Price Per Pcs Remarks
1-2 45810M65M60-000 FRAME , FRONT SUSPENSION 1 Rp3.509.500 TYPE-2
1-1 45810M65M51-000 FRAME , FRONT SUSPENSION 1 Rp7.875.500 TYPE-1
2 45849-61M00-000 BOLT, FR SUSPENSION FRAME NO.1 2 Rp42.000
3 09135-14017-000 BOLT, FR SUSPENSION FRAME NO.2 2 Rp54.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
