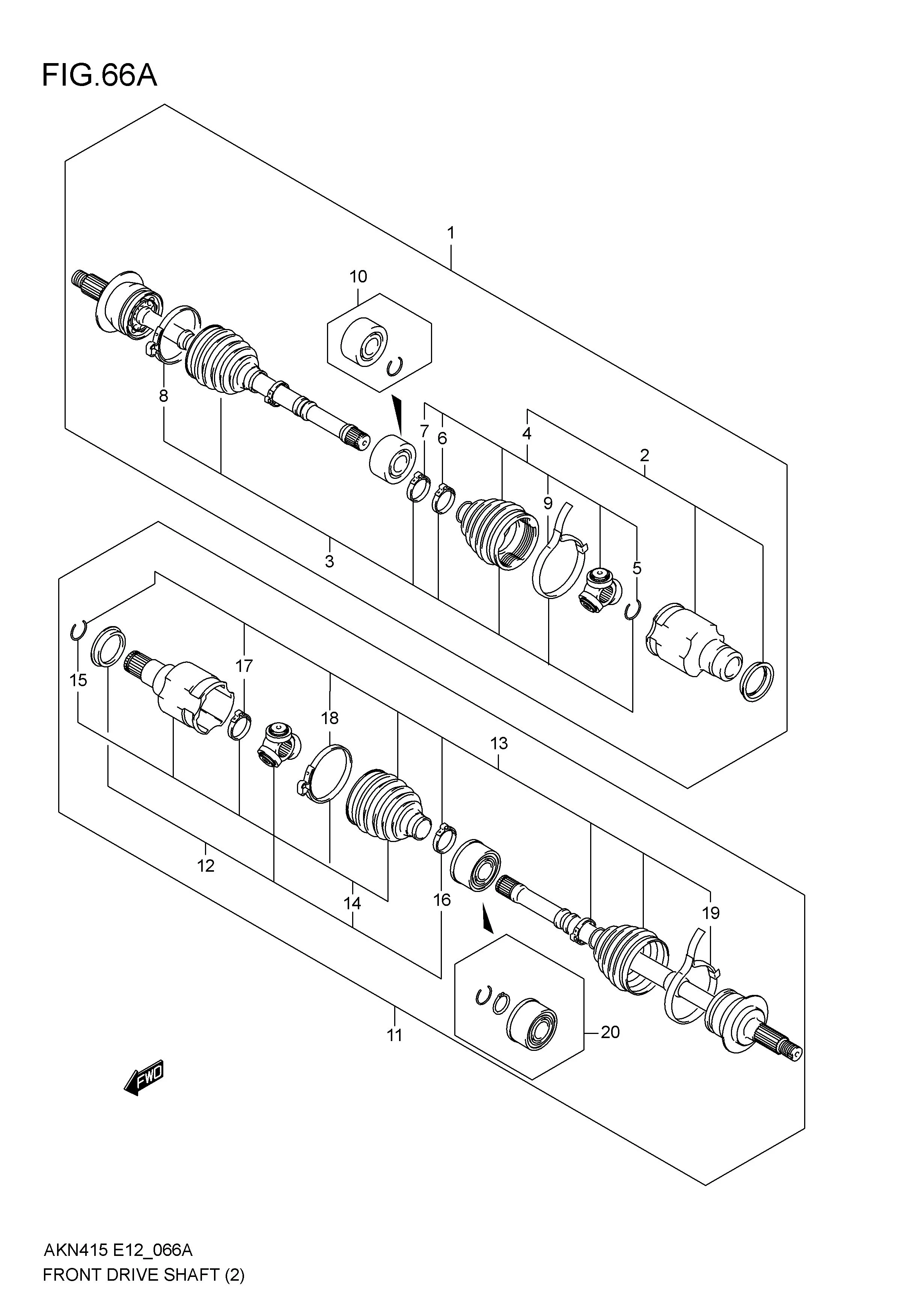

FRONT DRIVE SHAFT (5MT:TYPE-2)

FRONT DRIVE SHAFT (5MT:TYPE-2)
No No. Part Description Qty Price Per Pcs Remarks
1 44101M65M70-000 SHAFT ASSY,FRONT DRIVE,R 1 Rp4.817.000
2 44116M65M70-000 .JOINT ASSY, DIFF SIDE 1 Rp969.000
3 44138M65M70-000 .BOOT SET, WHEEL SIDE 1 Rp473.000
4 44120M65M70-000 ..BOOT SET DIFF SIDE 1 Rp365.500
5 44111M60M00-000 ...CIRCLIP 1 Rp25.000
6 44121M68P80-000 ...CLAMP, BOOT SMALL 1 Rp33.500
7 44123M60M80-000 ...BAND, SMALL 1 Rp43.500
8 44122M65M70-000 ...BAND, BOOT 1 Rp72.000
9 44124M68P80-000 ...CLAMP, BOOT BIG 1 Rp59.000
10 44410M65M70-000 .DAMPER SET 1 Rp501.000
11 44102M65M70-000 SHAFT ASSY,FRONT DRIVE,L 1 Rp4.817.000
12 44117M65M70-000 .JOINT ASSY, DIFF SIDE 1 Rp969.000
13 44138M65M70-000 .BOOT SET, WHEEL SIDE 1 Rp473.000
14 44120M65M70-000 ..BOOT SET DIFF SIDE 1 Rp365.500
15 44111M60M00-000 ...CIRCLIP 1 Rp25.000
16 44121M68P80-000 ...CLAMP, BOOT SMALL 1 Rp33.500
17 44123M60M80-000 ...BAND, SMALL 1 Rp43.500
18 44122M65M70-000 ...BAND, BOOT 1 Rp72.000
19 44124M68P80-000 ...CLAMP, BOOT BIG 1 Rp59.000
20 44420M65M70-000 .DAMPER SET 1 Rp501.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
