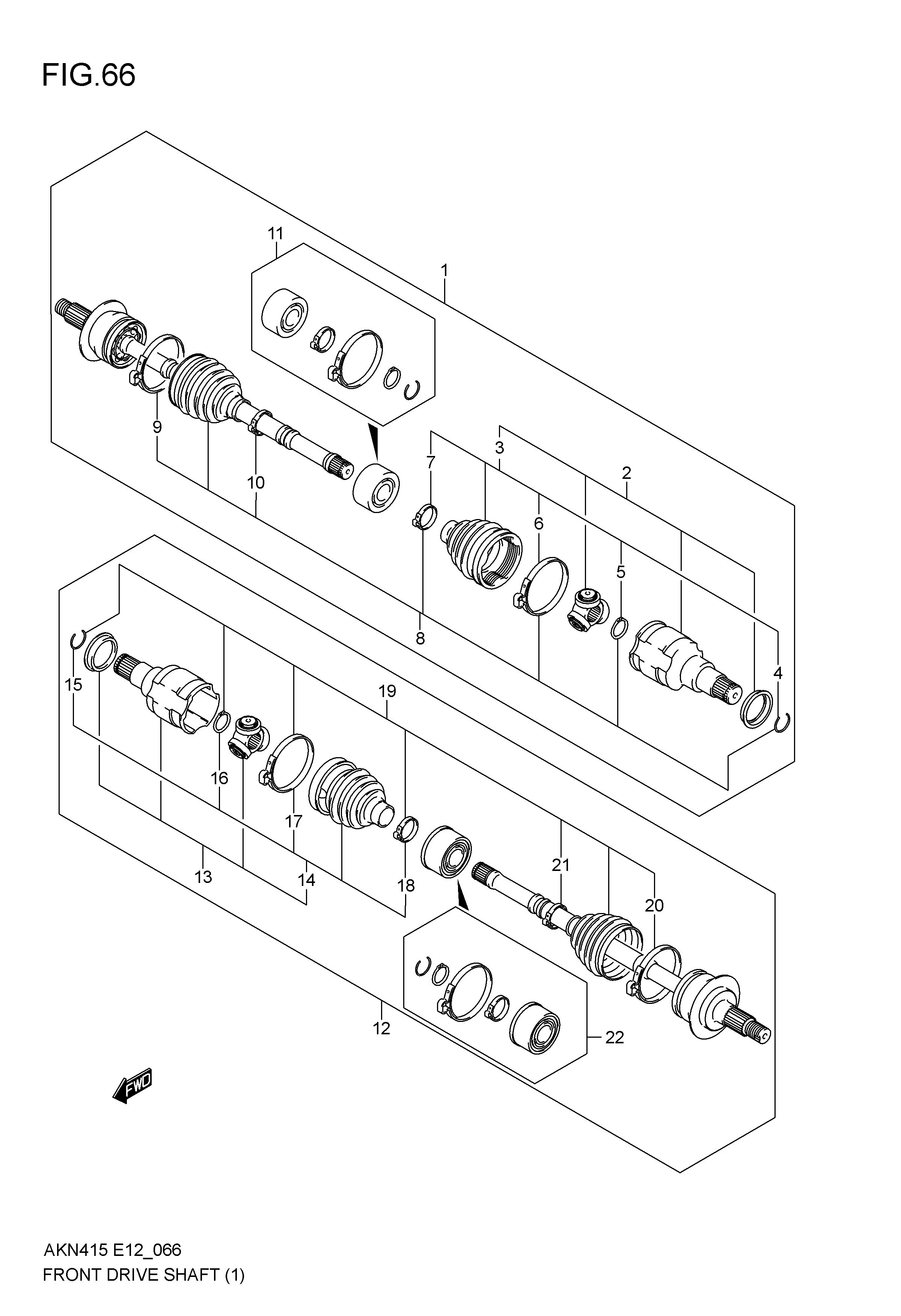

FRONT DRIVE SHAFT (5MT:TYPE-1)

FRONT DRIVE SHAFT (5MT:TYPE-1)
No No. Part Description Qty Price Per Pcs Remarks
1 44101-61M01-000
SUB: 44101-61M00-000		 SHAFT ASSY, FRONT DRIVE, R 1 Rp7.864.000
2 44117-61M00-000 .JOINT ASSY, DIFF SIDE 1 Rp3.180.500
3 44119-61M00-000 ..BOOT SET, DIFF SIDE 1 Rp1.638.000
4 44111-54L00-000 ...CIRCLIP 1 Rp55.000
5 DISCONTINUE
SUB: 44111-71C20-000		 ...RING, SNAP 1 -
6 44121-61M00-000 ...BAND, BOOT 1 Rp223.500
7 44123-86G50-000 ...BAND, BOOT 1 Rp89.000
8 44118-61M00-000 .BOOT SET, WHEEL SIDE 1 Rp1.861.000
9 44122-62J00-000 ..BAND, BOOT 1 Rp387.000
10 44123-86G50-000 ..BAND, BOOT 1 Rp89.000
11 44125-61M00-000 .DAMPER SET 1 Rp1.455.500
12 44102-61M01-000
SUB: 44102-61M00-000		 SHAFT ASSY, FRONT DRIVE, L 1 Rp7.864.000
13 44117-61M00-000 .JOINT ASSY, DIFF SIDE 1 Rp3.180.500
14 44119-61M00-000 ..BOOT SET, DIFF SIDE 1 Rp1.638.000
15 44111-54L00-000 ...CIRCLIP 1 Rp55.000
16 DISCONTINUE
SUB: 44111-71C20-000		 ...RING, SNAP 1 -
17 44121-61M00-000 ...BAND, BOOT 1 Rp223.500
18 44123-86G50-000 ...BAND, BOOT 1 Rp89.000
19 44118-61M00-000 .BOOT SET, WHEEL SIDE 1 Rp1.861.000
20 44122-62J00-000 ..BAND, BOOT 1 Rp387.000
21 44123-86G50-000 ..BAND, BOOT 1 Rp89.000
22 44125-61M00-000 .DAMPER SET 1 Rp1.455.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
