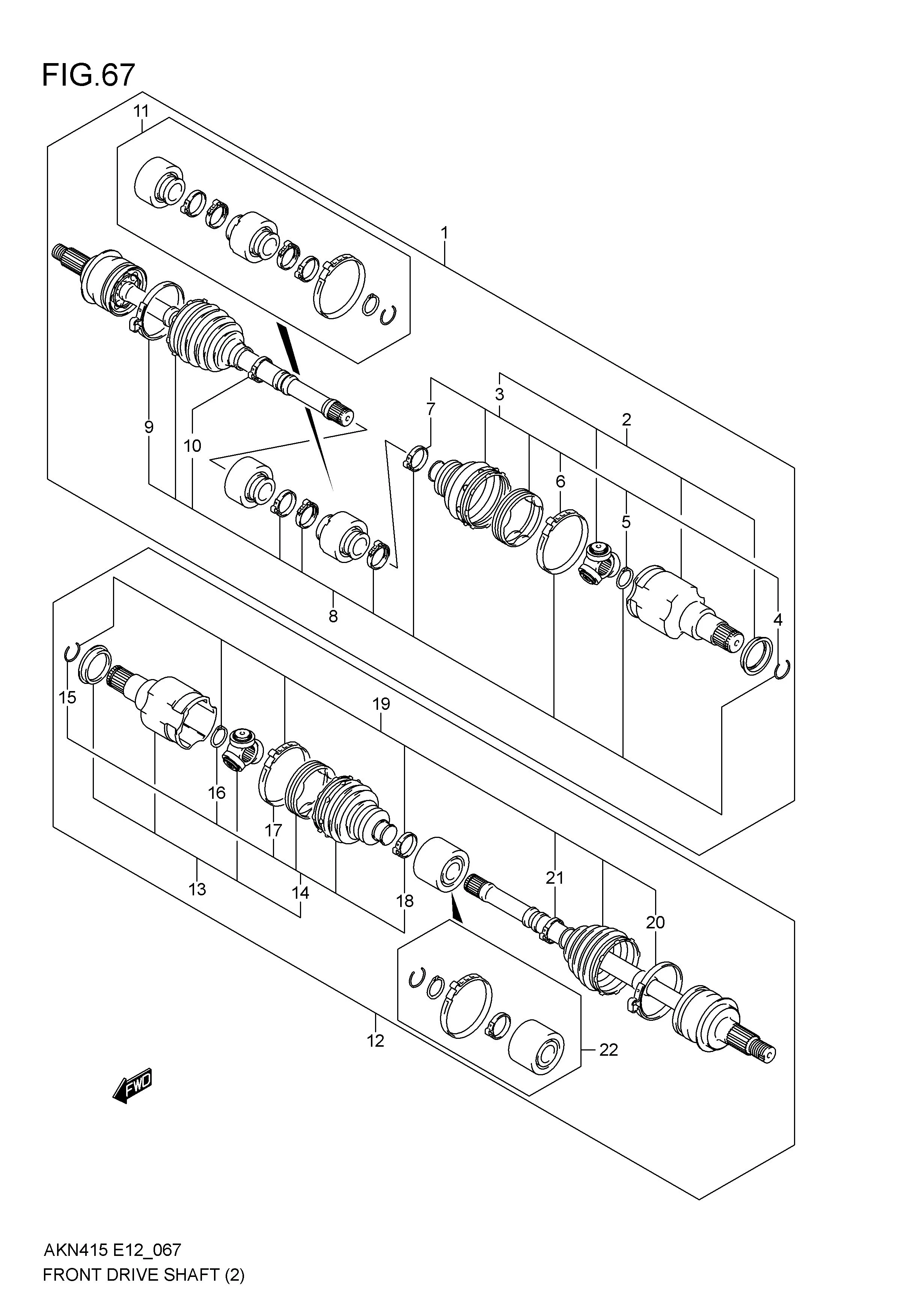

FRONT DRIVE SHAFT (6AT:TYPE-1)

FRONT DRIVE SHAFT (6AT:TYPE-1)
No No. Part Description Qty Price Per Pcs Remarks
1 44101-54P12-000 SHAFT ASSY, FR DRIVE RH 1 Rp8.633.500
2 44117-54P10-000 .JOINT ASSY, DIFF SIDE 1 Rp6.187.500
3 44119-54P10-000 ..BOOT SET, DIFF SIDE 1 Rp2.139.500
4 44111-54P10-000 ...SHANK CIRCLIP 1 Rp113.500
5 44113-54P10-000 ...CIRCLIP 1 Rp117.000
6 44121-54P10-000 ...BIG CLAMP 1 Rp273.000
7 44123-54P10-000 ...SMALL CLAMP 1 Rp119.500
8 44118-54P10-000 .BOOT SET, WHEEL SIDE 1 Rp2.565.000
9 44122-54P10-000 ..BIG CLAMP 1 Rp248.000
10 44124-54P10-000 ..SMALL CLAMP 1 Rp119.500
11 44125-54P10-000 .DAMPER SET 1 Rp2.344.000
12 44102-54P11-000
SUB: 44102-54P10-000		 SHAFT ASSY, FR DRIVE LH 1 Rp8.099.000
13 44117-54P10-000 .JOINT ASSY, DIFF SIDE 1 Rp6.187.500
14 44119-54P10-000 ..BOOT SET, DIFF SIDE 1 Rp2.139.500
15 44111-54P10-000 ...SHANK CIRCLIP 1 Rp113.500
16 44113-54P10-000 ...CIRCLIP 1 Rp117.000
17 44121-54P10-000 ...BIG CLAMP 1 Rp273.000
18 44123-54P10-000 ...SMALL CLAMP 1 Rp119.500
19 44118-54P10-000 .BOOT SET, WHEEL SIDE 1 Rp2.565.000
20 44122-54P10-000 ..BIG CLAMP 1 Rp248.000
21 44124-54P10-000 ..SMALL CLAMP 1 Rp119.500
22 44126-54P10-000 .DAMPER SET 1 Rp2.633.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
