Smash FD 110 XCDF

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG. 3 STARTER CLUTCHFIG. 4 STARTER MOTORFIG. 5 CLUTCHFIG. 19 HALF CHAIN CASEFIG. 20 CHAIN CASE FULL

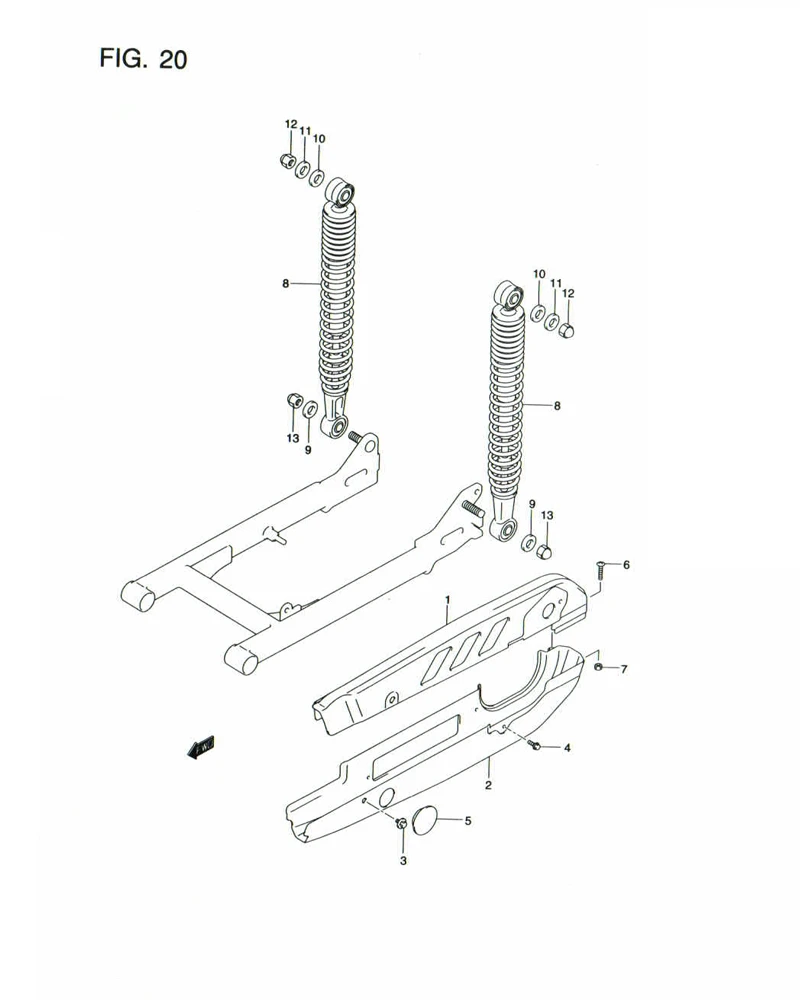

FIG. 20 CHAIN CASE FULL

FIG. 20 CHAIN CASE FULL
No No. Part Description Qty Price Per Pcs Remarks
1 61310B31CD0NS01 CASE, CHAIN UPPER 1 -
2 DISCONTINUE
SUB: 61320B31C11NS01		 CASE, CHAIN LOWER 1 -
3 09116-06014-000 BOLT, FRONT 2 Rp4.500
4 01550-0610B-000
SUB: 01550-06103-000		 BOLT, REAR 2 Rp3.000
5 DISCONTINUE
SUB: 09250-30001-000		 CAP 1 -
6 02142-0630B-000
SUB: 02142-06303-000		 SCREW, JOINT 1 Rp5.500
7 08316-1006A-000
SUB: 08316-10063-000		 NUT, JOINT 1 Rp2.000
8 DISCONTINUE
SUB: 62100B09G10N000		 ABSORBER ASSY, REAR SHOCK 2 -
9 09160-10093-000
SUB: 09160-10127-000		 WASHER, LOWER OUTER 2 Rp12.500
10 09160-10093-000
SUB: 09160-10127-000		 WASHER, UPPER OUTER NO. 1 2 Rp12.500
11 09160-10093-000
SUB: 09160-10127-000		 WASHER, UPPER OUTER NO. 2 2 Rp12.500
12 08310-0010A-000
SUB: 08310-00103-000		 NUT, UPPER 2 Rp3.500
13 08313-10107-000 NUT, LOWER 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
