Smash FD 110 XCDF

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG. 3 STARTER CLUTCHFIG. 4 STARTER MOTORFIG. 5 CLUTCHFIG. 19 HALF CHAIN CASEFIG. 20 CHAIN CASE FULL

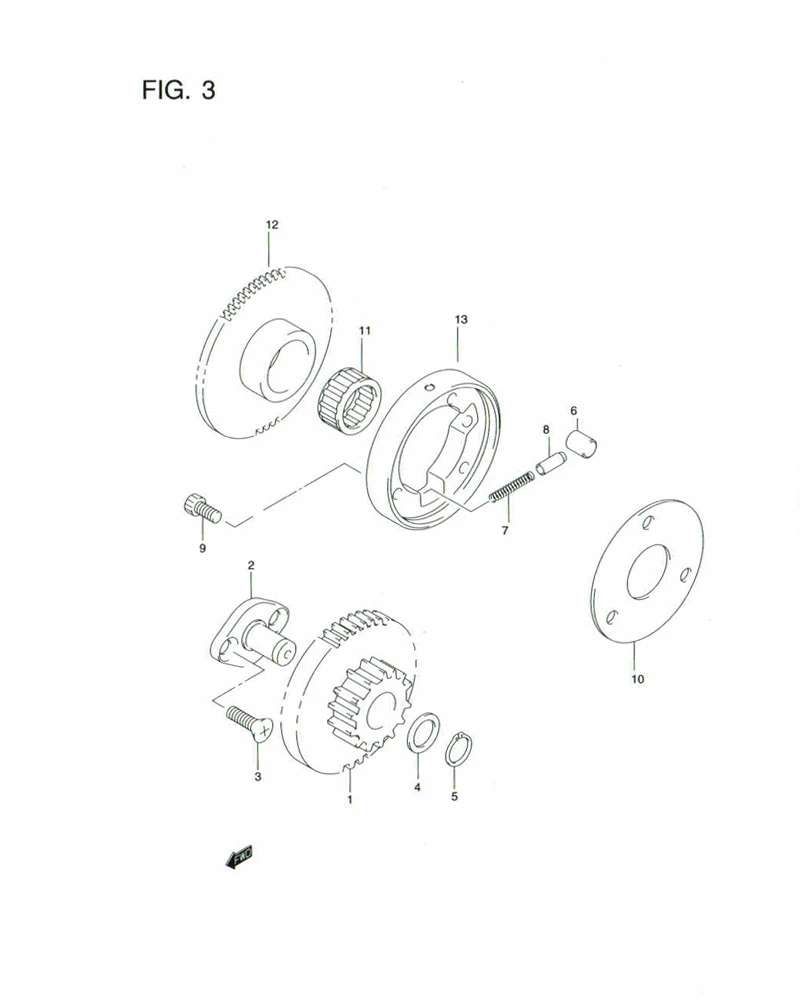

FIG. 3 STARTER CLUTCH

FIG. 3 STARTER CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 12611-23F00-000 GEAR, STARTER IDLE (NT:68/14) 1 Rp128.500
2 DISCONTINUE
SUB: 12612-23F00-000		 SHAFT, STARTER IDLE GEAR 1 -
3 02122-0616A-000
SUB: 02122-06163-000		 SCREW 2 Rp3.500
4 09160-13010-000 WASHER 1 Rp12.500
5 08331-31139-000 CIRCLIP 1 Rp4.500
6 09261-10003-000 ROLLER 3 Rp17.000
7 09440-03012-000 SPRING 3 Rp15.000
8 12633-05300-000 PIECE, PUSH 3 Rp49.500
9 07130-0612A-000
SUB: 07130-06123-000		 BOLT, (6X10) 3 Rp3.500
10 12649-30D00-000 SHIM, CLUTCH HUB 1 Rp41.500
11 09263-20061-000 BEARINF 1 Rp208.000
12 DISCONTINUE
SUB: 12620-23F00-000		 GEAR, STARTER CLUTCH 1 -
13 12630-29B04-000
SUB: 12630-29B02-000		 HUB, STARTER CLUTCH 1 Rp924.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
