Preview Engine Transmission Electrical Suspension Body

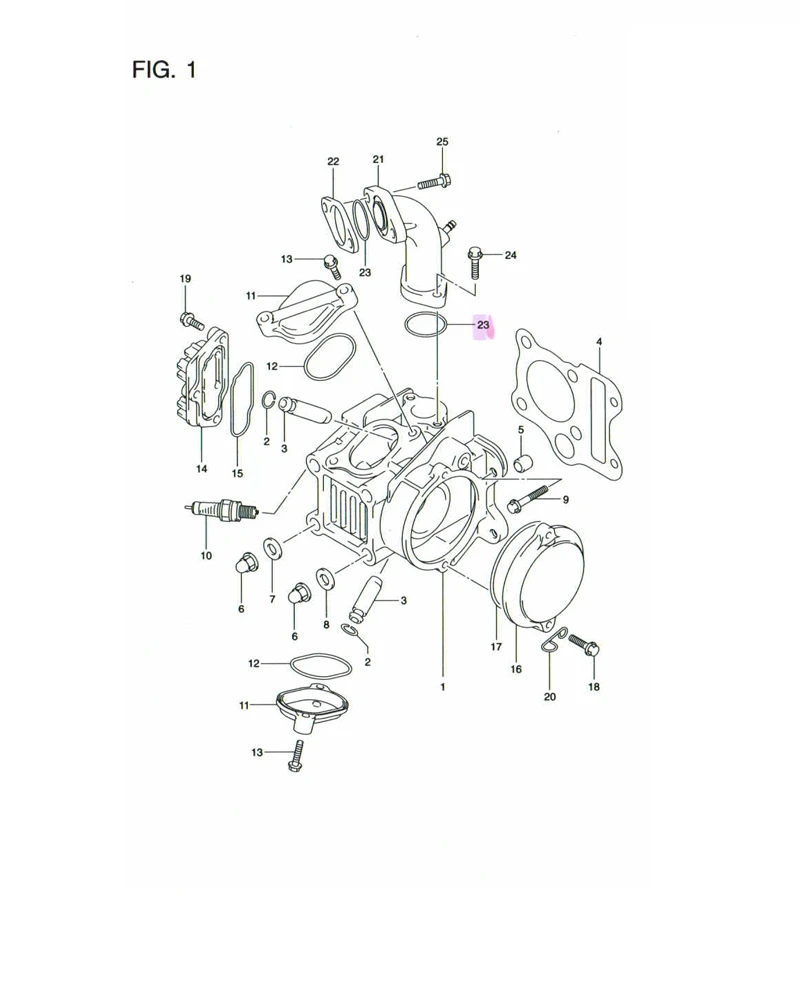

No	No. Part	Description	Qty	Price Per Pcs
1	11110B09B00N000	HEAD, CYLINDER	1	-
2	09381-10004-000	RING	2	Rp3.000
3	11115-30D70-000	GUIDE, VALVE (OS:.0.3)	2	Rp169.500
4	11141-09G10-000 SUB: 11141B09G00N000	GASKET, CYLINDER HEAD	1	Rp30.500
5	04211-11129-000	PIN	2	Rp2.000
6	09159-08137-000 SUB: 09159-08049-000	NUT	4	Rp11.000
7	09160-08039-000 SUB: 09160-08053-000	GASKET	2	Rp14.000
8	09160-08039-000 SUB: 09160-08053-000	WASHER	2	Rp14.000
9	01550-0625B-000 SUB: 01550-06253-000	BOLT, CYLINDER HEAD	2	Rp15.000
10-1	09482-00710-000 SUB: 09482-00710L000	SPARK PLUG (NGK,C6HSA)	1	Rp24.500
10-2	09482-00810L"SPARK PLUG (ND	U20SF-U)	1	-
11-1	11175-099400L	CAP, INSPECTION	2	-
11-2	11175-09400-000 SUB: 11175B09410N000	CAP, INSPECTION	2	Rp14.000
12	09280-50007-000	O RING, INSPECTION CAP	2	Rp4.000
13	01547-0620B-000 SUB: 01547-06203-000	BOLT	4	Rp6.500
14	DISCONTINUE SUB: 11134B09G00N000	COVER, CYLINDER HEAD RH	1	-
15	11144-09G00-000 SUB: 11144B09G00N000	O RING, HEAD COVER	1	Rp6.500
16	DISCONTINUE SUB: 11121B09G00N000	COVER, CYLINDER HEAD LH	1	-
17	09280-80004-000 SUB: 09280B80004N000	O RING	1	Rp4.500
18	01547-0620B-000 SUB: 01547-06203-000	BOLT	2	Rp6.500
19	01547-0625A-000 SUB: 01547-06253-000	BOLT, CYLINDER HEAD COVER	3	Rp6.500
20	DISCONTINUE SUB: 09403-06404-000	CLAMP, OVER FLOW HOSE	1	-
21	13110B09G0N2N	PIPE, INTAKE	1	-
22	13129-09G00-000	INSULATOR, CARBURETOR	1	Rp10.000
23	09280-24005-000 SUB: 09280-24005L000	O RING, INSULATOR	2	Rp3.000
24	01547-0620B-000 SUB: 01547-06203-000	BOLT, INTAKE HEAD	2	Rp6.500
25	01547-0625A-000 SUB: 01547-06253-000	BOLT, INTAKE CARBURETOR	2	Rp6.500
