Smash FD 110 XCDF

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG. 3 STARTER CLUTCHFIG. 4 STARTER MOTORFIG. 5 CLUTCHFIG. 19 HALF CHAIN CASEFIG. 20 CHAIN CASE FULL

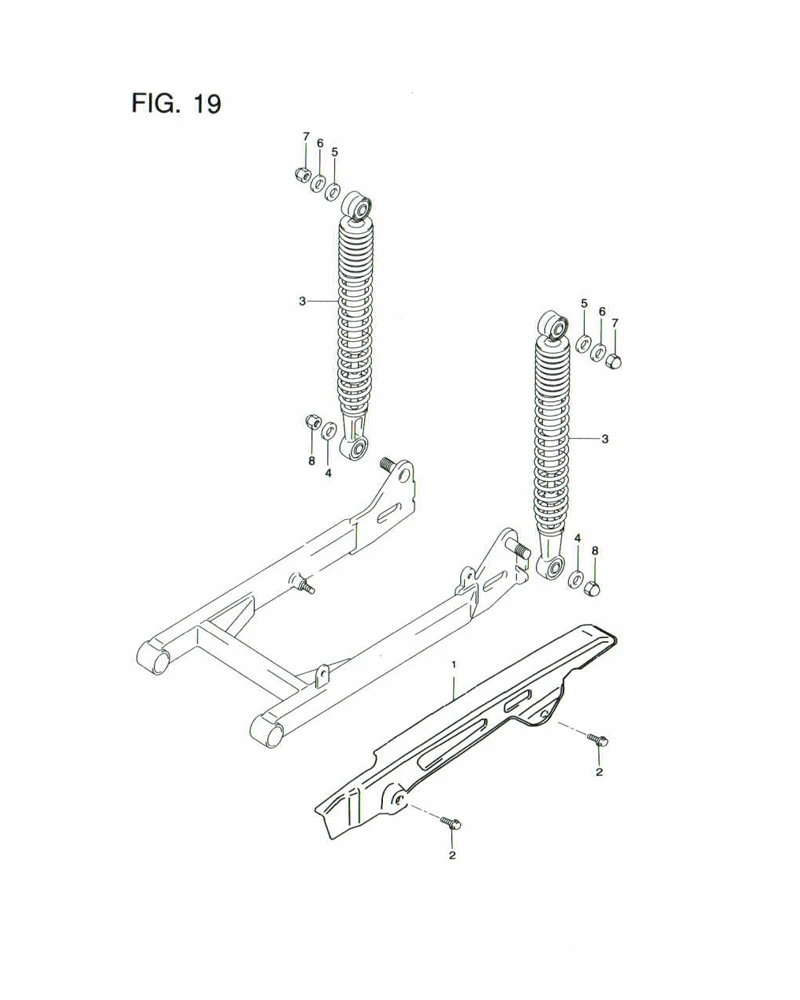

FIG. 19 HALF CHAIN CASE

FIG. 19 HALF CHAIN CASE
No No. Part Description Qty Price Per Pcs Remarks
1 61310-23F00-000
SUB: 61310B23F00N000		 CASE, CHAIN 1 Rp63.500
2 09111-06065-000 BOLT, CHAIN CASE (6X16) 2 Rp4.000
3 DISCONTINUE
SUB: 62100B09G10N000		 ABSORBER ASSY, REAR SHOCK 2 -
4 09160-10093-000
SUB: 09160-10127-000		 WASHER, LOWER OUTER 2 Rp12.500
5 09160-10093-000
SUB: 09160-10127-000		 WASHER, UPPER OUTER NO. 1 2 Rp12.500
6 09160-10093-000
SUB: 09160-10127-000		 WASHER, UPPER OUTER NO. 2 2 Rp12.500
7 08310-0010A-000
SUB: 08310-00103-000		 NUT, UPPER 2 Rp3.500
8 08313-10107-000 NUT, LOWER 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
