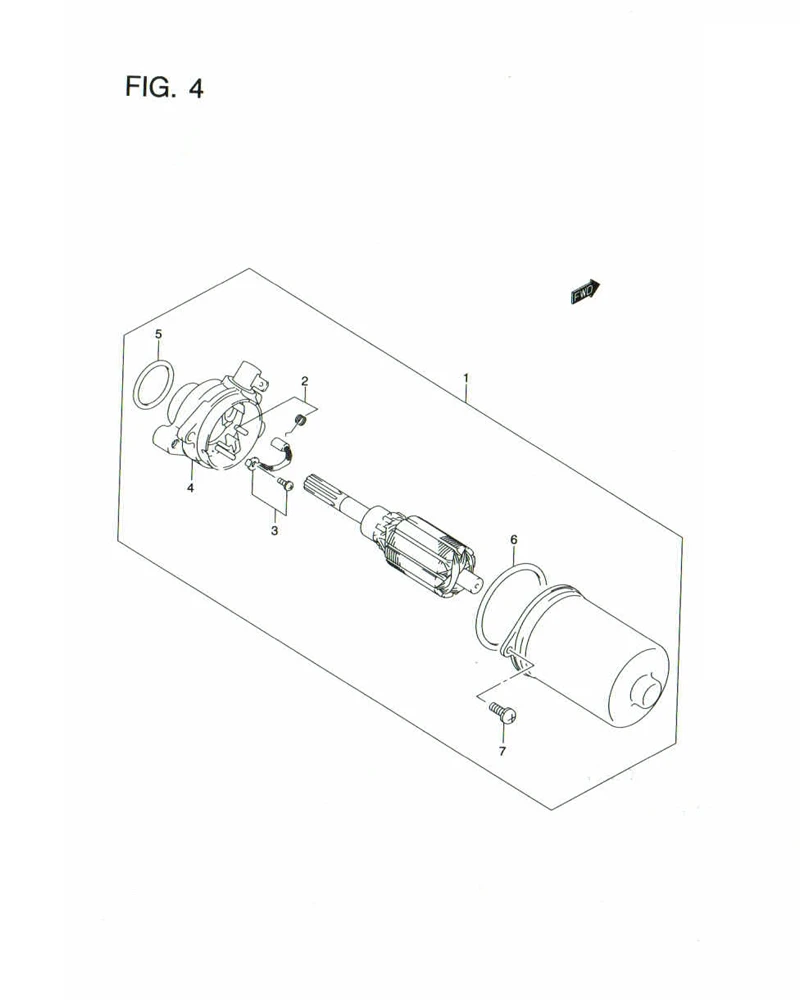

FIG. 4 STARTER MOTOR

FIG. 4 STARTER MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1-1 31100B30D50N000 MOTOR ASSY, STARTING 1 -
1-2 31100-30D10-000
SUB: 31100-30D10L000		 MOTOR ASSY, STARTING 1 Rp494.500
2-1 DISCONTINUE
SUB: 31130B30D50N000		 .HOLDER SET, BRUSH 1 -
2-2 31130-30D10-000 .HOLDER SET, BRUSH 1 Rp93.000
3-1 31130-30D10-000 .BRUSH 1 Rp93.000
3-2 31135-05B00-000
SUB: 31135-05B00L000		 .BRUSH SET 1 Rp41.000
4-1 31151-30D50-000 .HOUSING SET 1 -
4-2 31151-30D10-000 .HOUSING SET 1 -
5-1 DISCONTINUE
SUB: 31156B30D50N000		 .O RING 1 -
5-2 09280-25004-000 .O RING 1 Rp13.000
6-1 DISCONTINUE
SUB: 31158B30D50N000		 .SEAL 1 -
6-2 DISCONTINUE
SUB: 31157-02540-000		 .SEAL 1 -
7 DISCONTINUE
SUB: 02112-34103-000		 SCREW 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
