Electrical - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

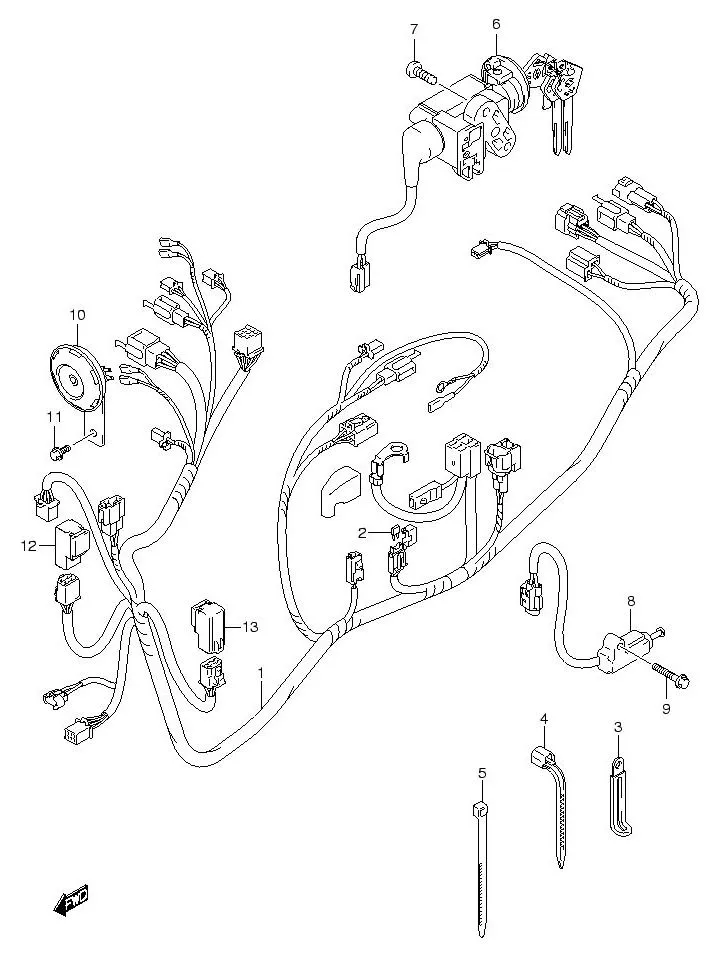

No	No. Part	Description	Qty	Price Per Pcs
1	36610-13H10-000 SUB: 36610B13H10N000	HARNESS, WIRING	1	Rp356.000
2	09481-10501-000	.FUSE (10A)	2	Rp12.000
3	DISCONTINUE SUB: 09404-06433-000	CLAMP (L:80)	2	-
4-1	36990-25G00-000 SUB: 09407-11401-000	CLAMP (L:95)	1	Rp13.000
4-2	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	1	Rp13.000
4-3	09407-18402-000	CLAMP (L:165)	3	Rp8.000
4-4	DISCONTINUE SUB: 09407-25401L000	CLAMP (L:235)	8	-
5	09407-14407-000	CLAMP (L:145)	2	Rp18.500
6	37100-13H20-000 SUB: 37100B13H00N000	LOCK ASSY, STEERING	1	Rp226.500
7	DISCONTINUE SUB: 09139B06048N000	SCREW, STEERING LOCK	2	-
8	37840-24F02-000 SUB: 37840-24F00-000	SWITCH ASSY, SIDE STAND	1	Rp191.000
9	01550-0830A-000 SUB: 01550B0830AN000	BOLT, SIDE STAND SWITCH	1	Rp4.000
10	38500-09G01-000 SUB: 38500B09G01N000	HORN ASSY	1	Rp52.500
11	01550B0612BN000	BOLT, HORN	1	Rp2.500
12	38740-26E01-000 SUB: 38740-26E00-000	RELAY ASSY, SIDE STAND	1	Rp190.000
13	38740-26E01-000 SUB: 38740-26E00-000	RELAY ASSY, BRAKE START	1	Rp190.000
