SKYWAVE 125 (UW125SC)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.20 STARTING MOTORFIG.21 MAGNETOFIG.22 BATTERYFIG.23 ELECTRICALFIG.24 SPEEDOMETERFIG.25 FRONT COMBINATRION LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESS

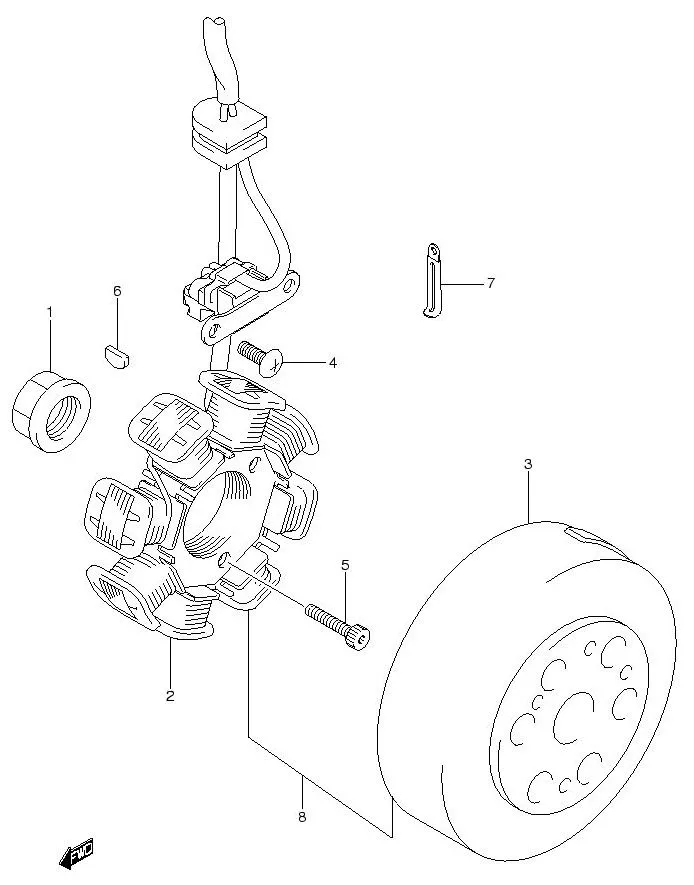

FIG.21 MAGNETO

FIG.21 MAGNETO
No No. Part Description Qty Price Per Pcs Remarks
1 31792-33G10-000 NUT, MAGNETO ROTOR 1 Rp27.000
2 32101-13H10-000
SUB: 32101B13H10N000		 STATOR ASSY 1 Rp217.000
3 DISCONTINUE
SUB: 32102B13H10N000		 ROTOR ASSY 1 -
4 02142-0510A-000
SUB: 02142B0510BN000		 SCREW, SENSOR 2 Rp4.000
5 07130-0520A-000
SUB: 07130-0520B-000		 BOLT, MAGNETO STATOR 3 Rp5.500
6 08341-31039-000
SUB: 08341B31039N000		 KEY, MAGNETO 1 Rp9.500
7 09404-06429-000
SUB: 09404B06429N000		 CLAMP (L:45) 1 Rp15.000
8 32100-13H10-000
SUB: 32100B13H10N000		 MAGNETO ASSY 1 Rp454.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
